Test J: One or More Stoplamps Are Inoperative
Test J: One or More Stoplamps Are Inoperative

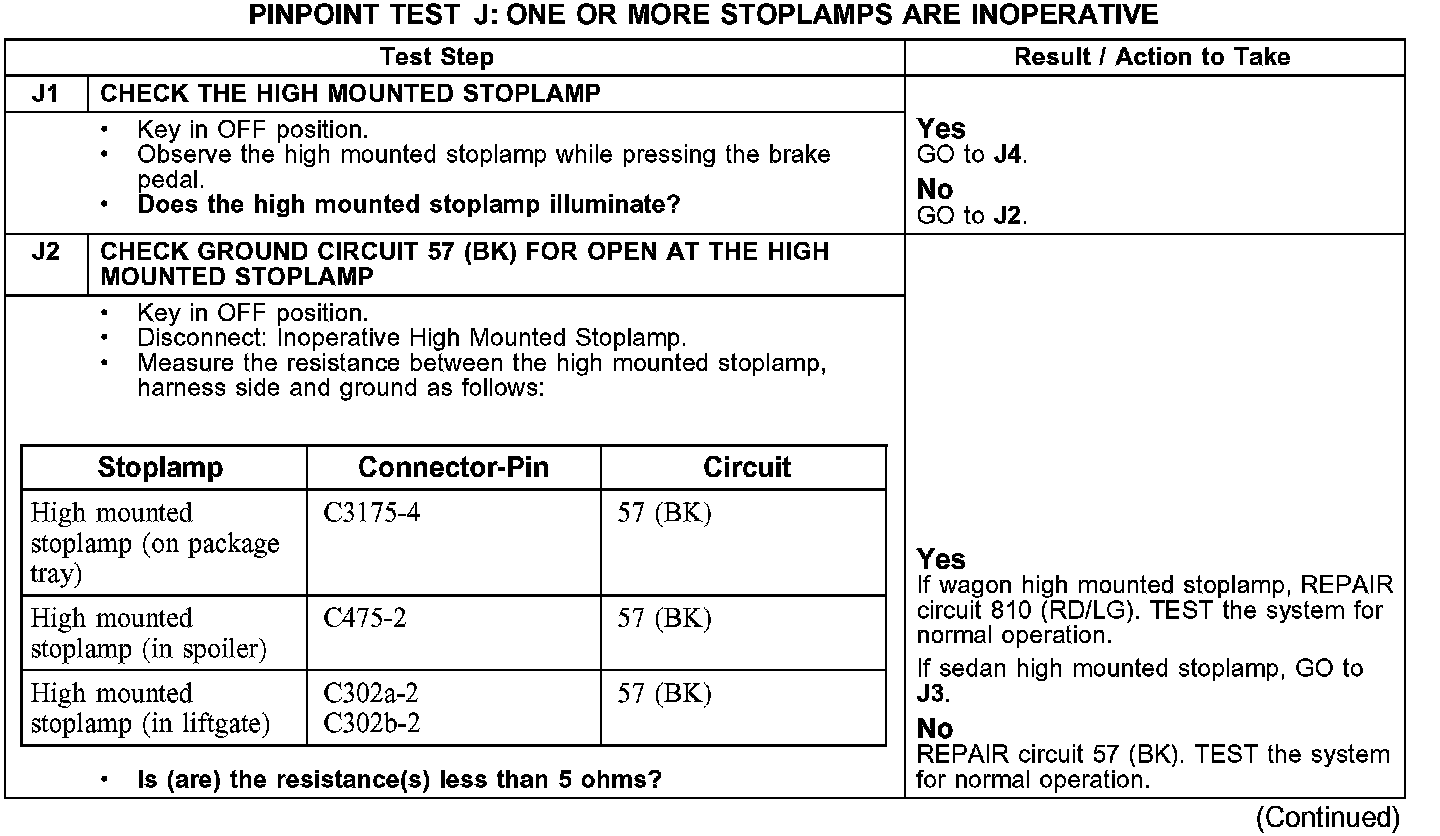

PINPOINT TEST J: ONE OR MORE STOPLAMPS ARE INOPERATIVE
J1-J2:

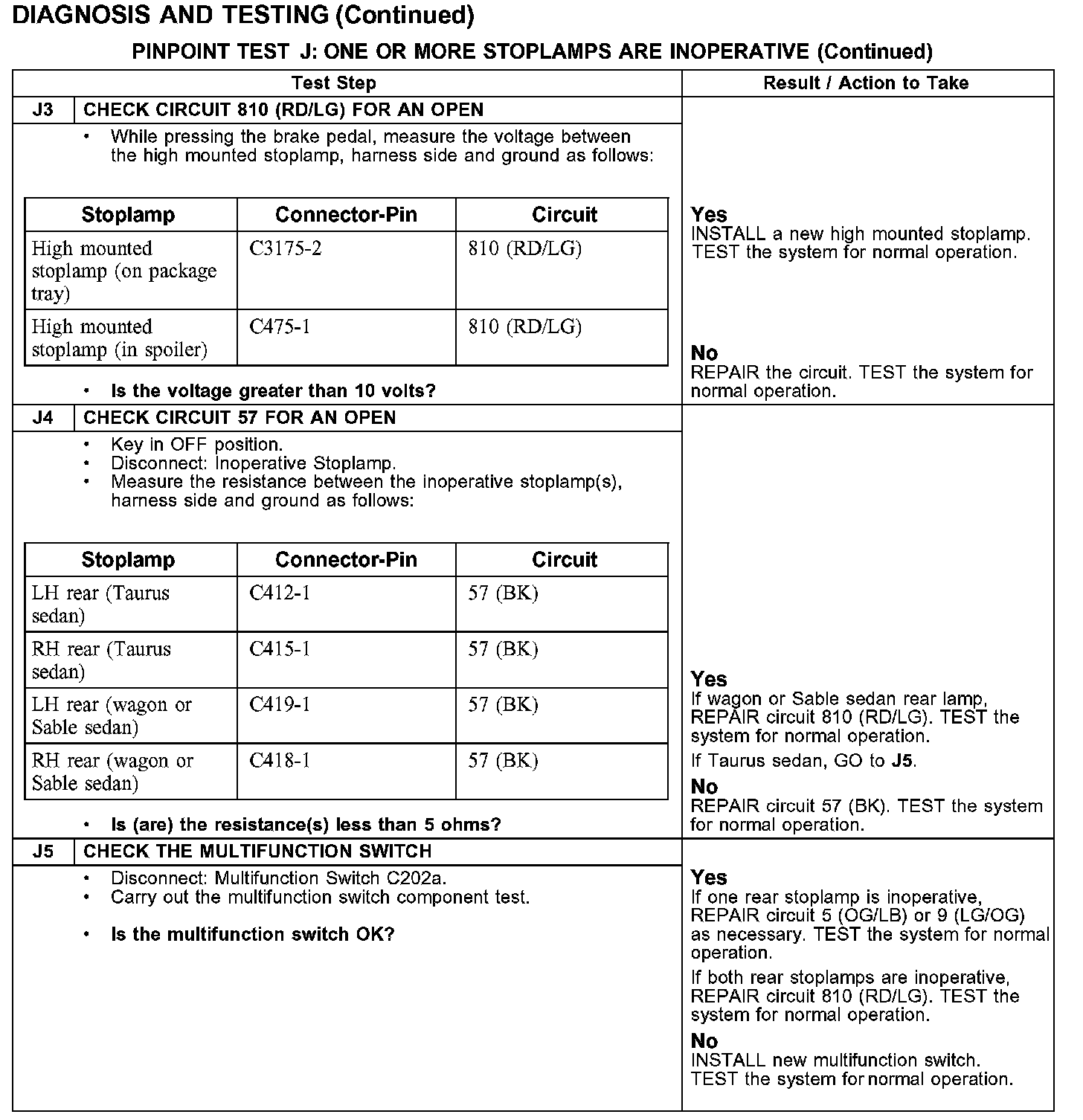

J3-J5:
