Mercury
>>
2005
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test I: The Charging System Warning Indicator Is Never On
Test I: The Charging System Warning Indicator Is Never On
PINPOINT TEST I: THE CHARGING SYSTEM WARNING INDICATOR IS NEVER ON

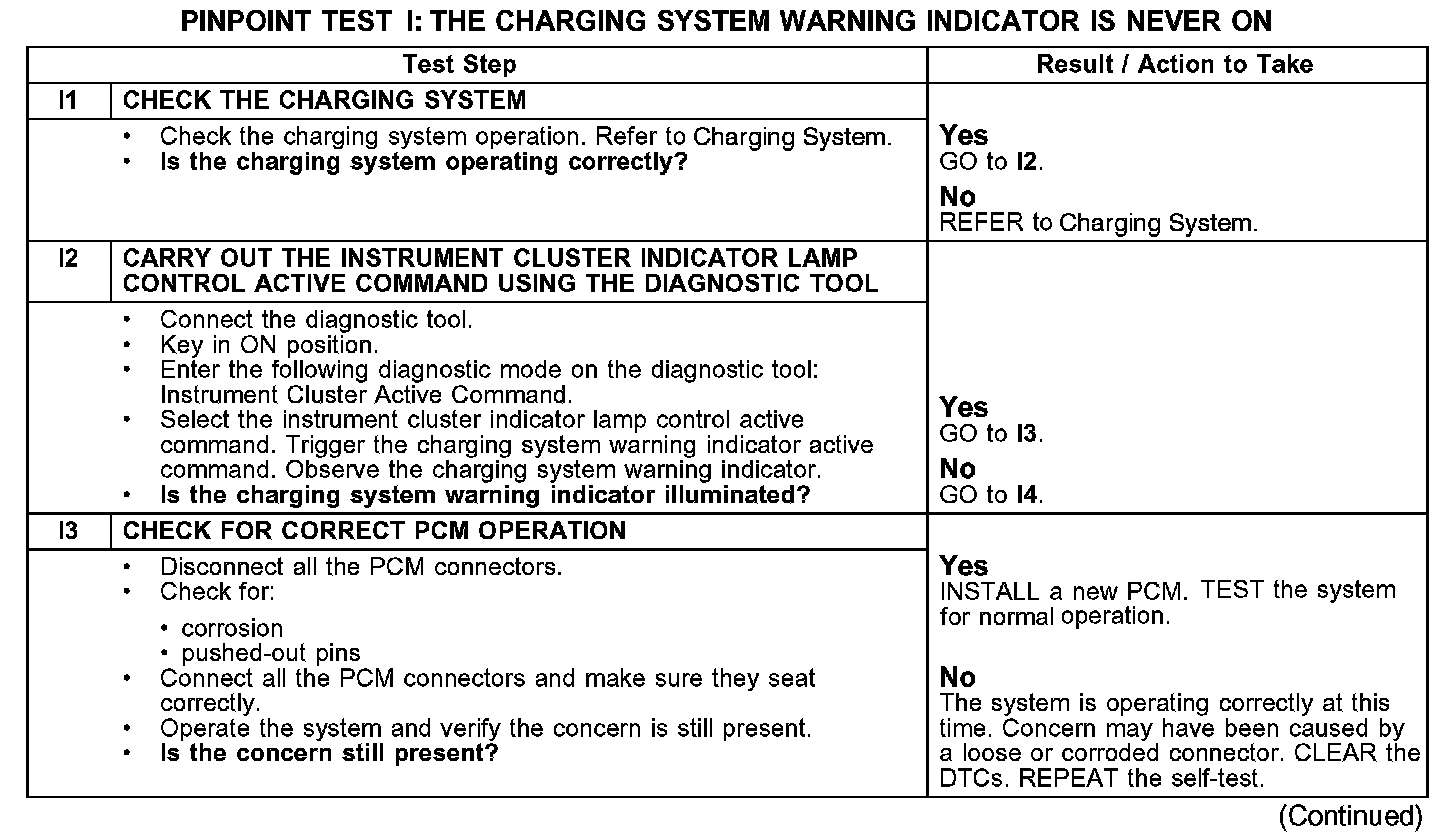

I1-I3:

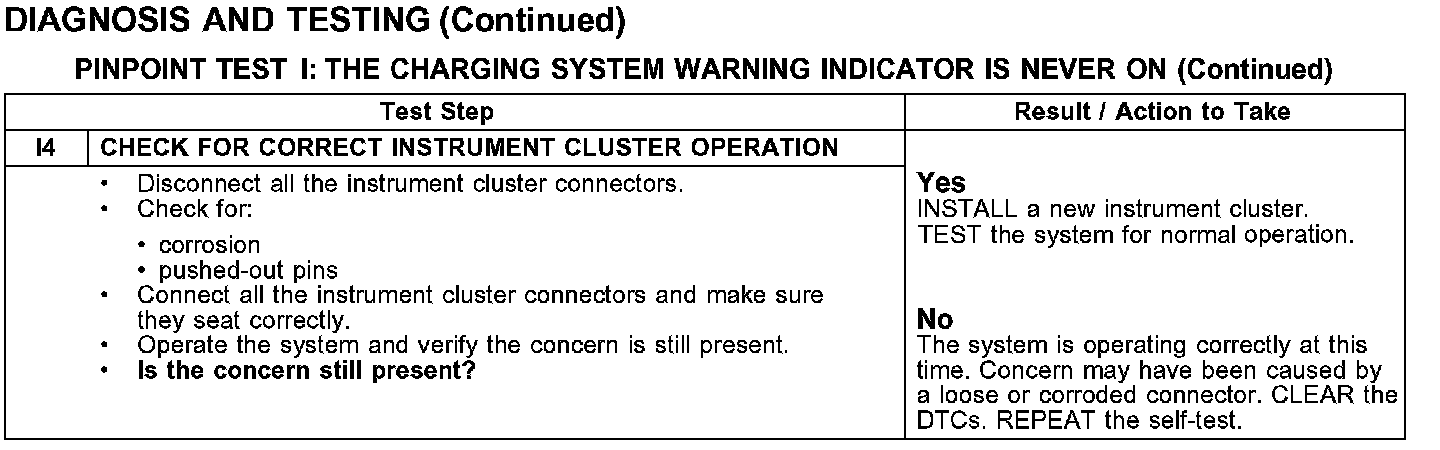

I4:
