Test G: The Tachometer Is Inoperative

PINPOINT TEST G: THE TACHOMETER IS INOPERATIVE

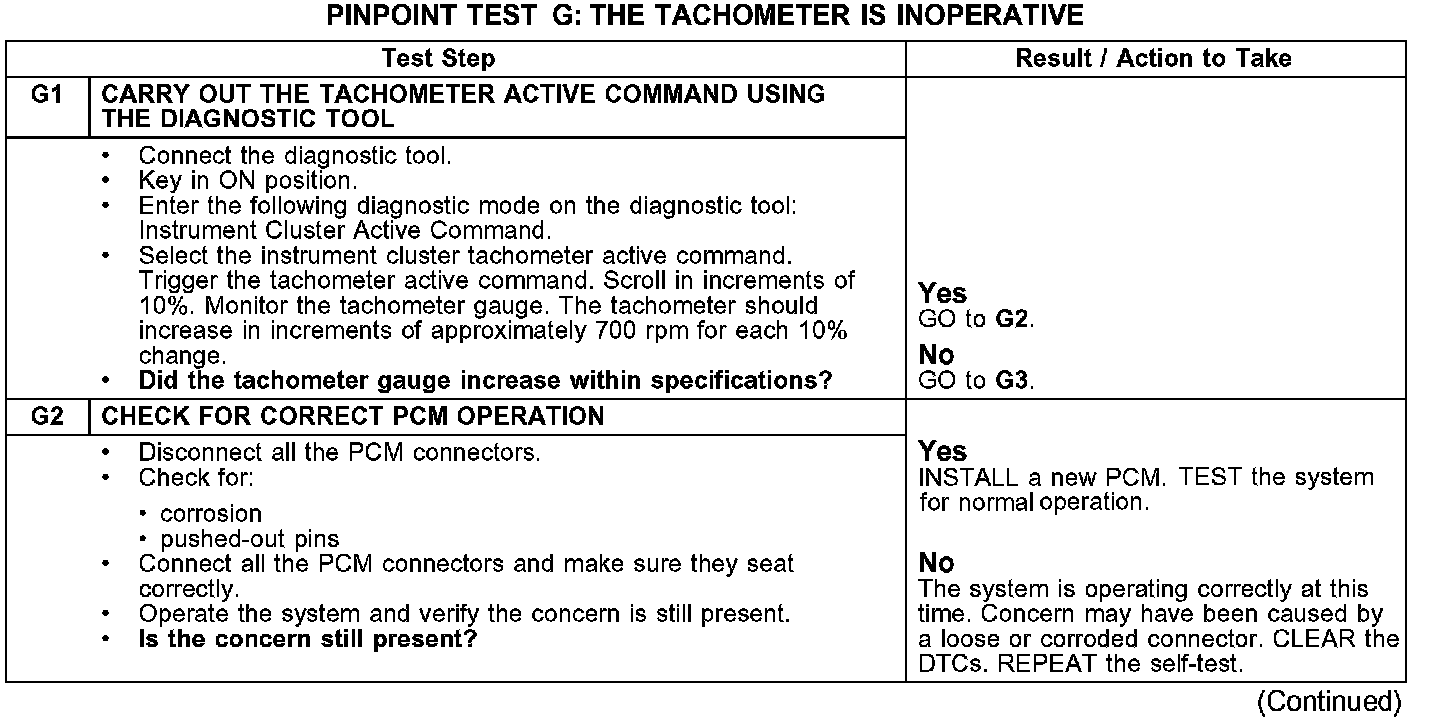

G1-G2:






G3:
