Test F: The Speedometer/Odometer Is Inoperative

PINPOINT TEST F: THE SPEEDOMETER/ODOMETER IS INOPERATIVE

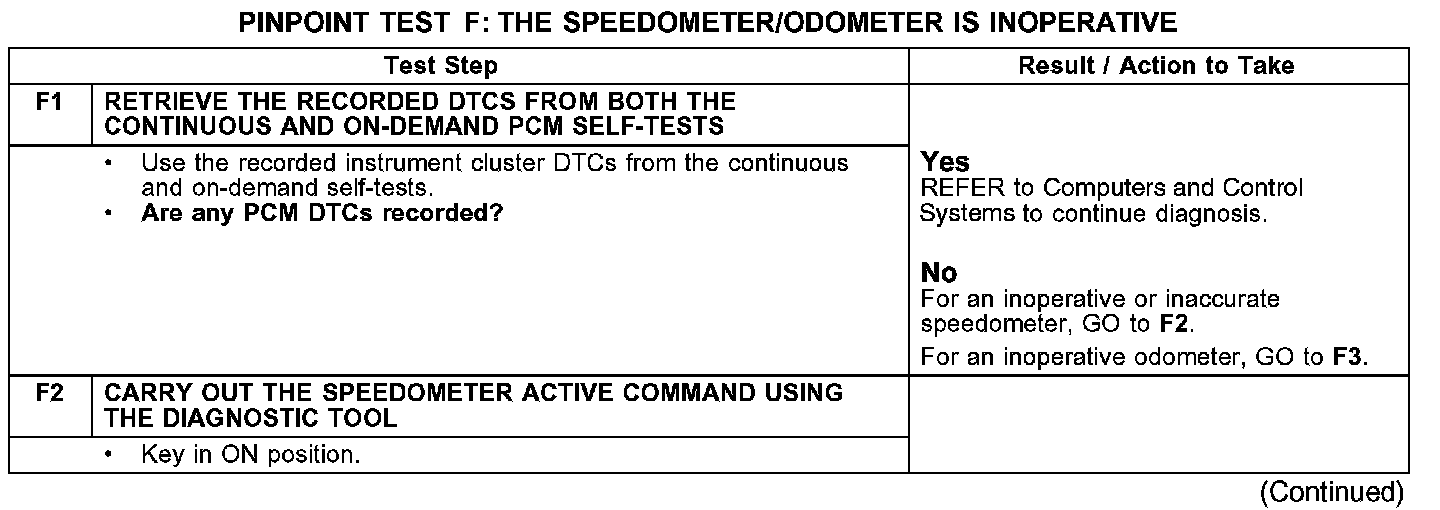

F1-F2:

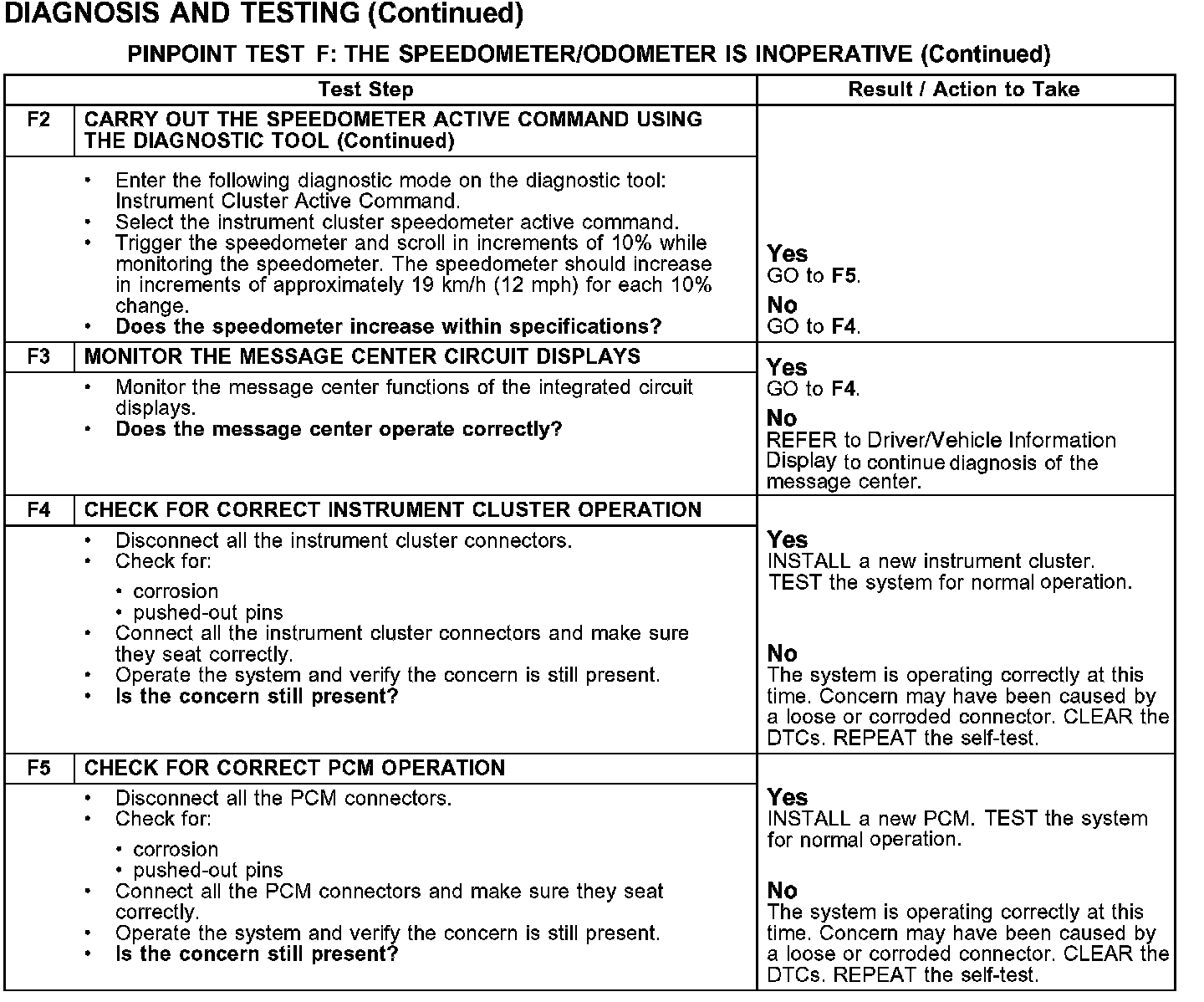

F2-F5:
