Test E: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches
Test E: A Single Illumination Source Is Inoperative - Steering Wheel Control Switches
PINPOINT TEST E: A SINGLE ILLUMINATION SOURCE IS INOPERATIVE - STEERING WHEEL CONTROL SWITCHES

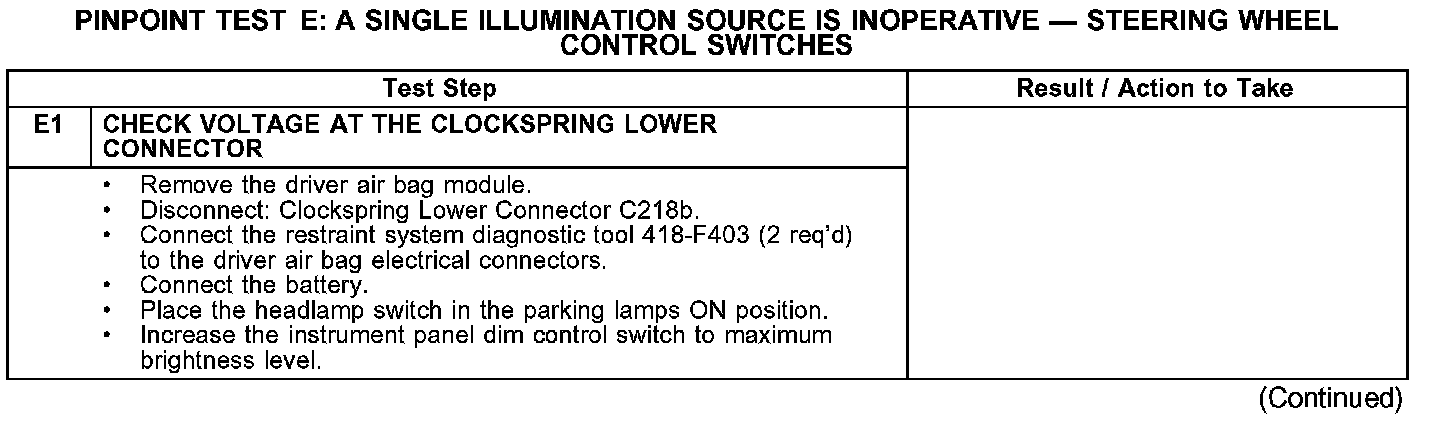

E1:

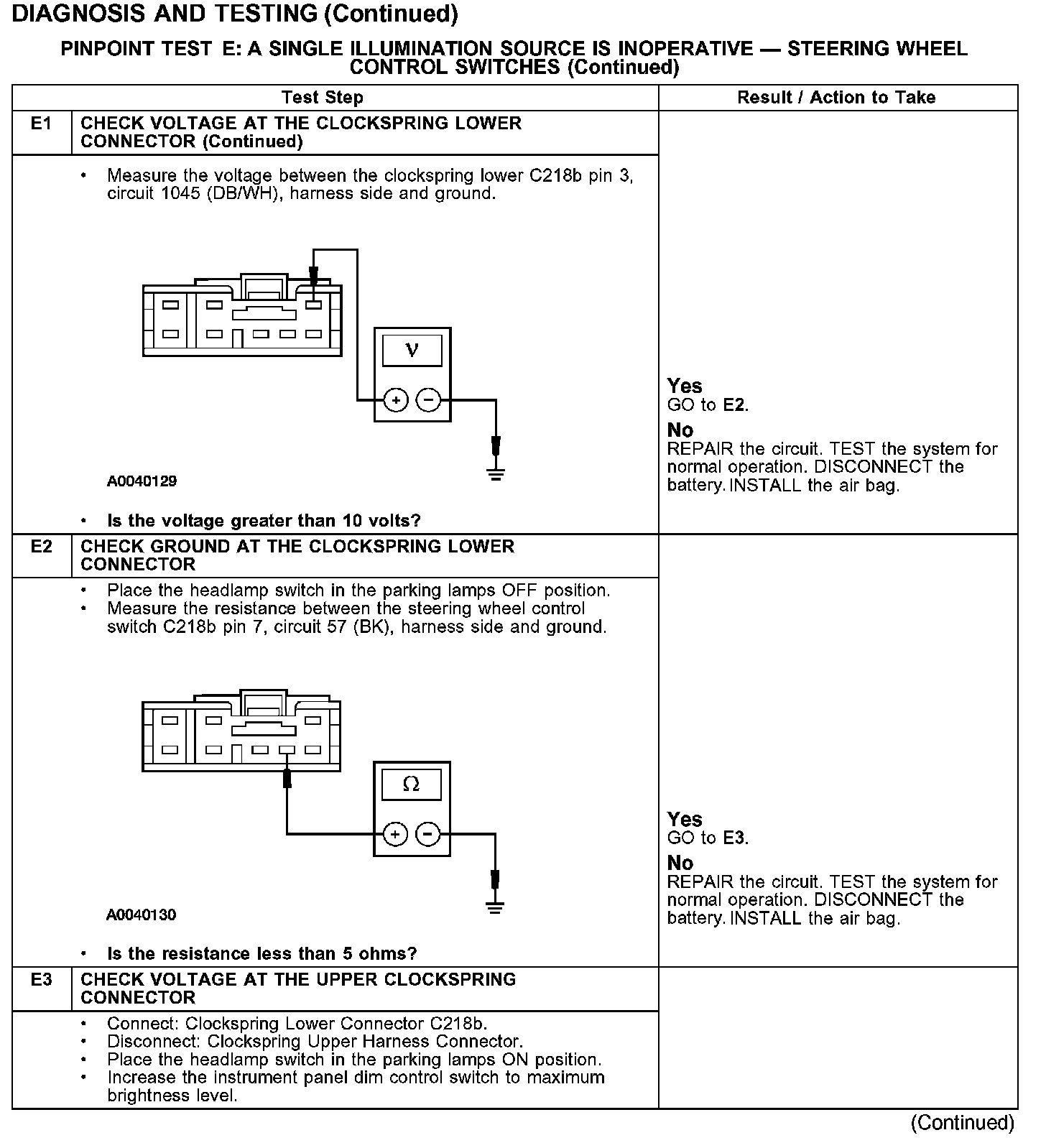

E1-E3:

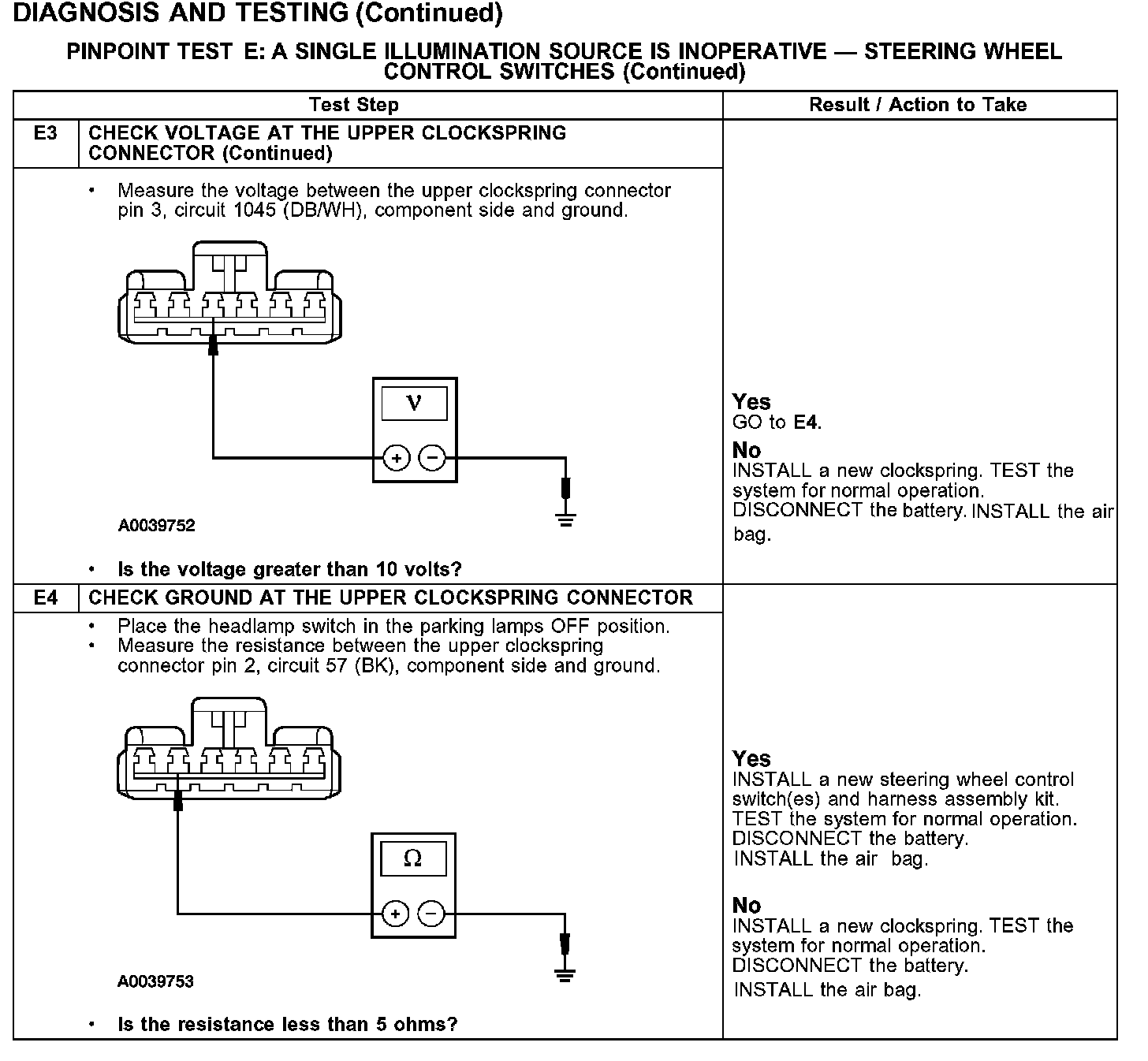

E3-E4:
