Warning Indicator Bulb

WARNING INDICATOR BULB

Removal and Installation
1. Remove the instrument cluster.

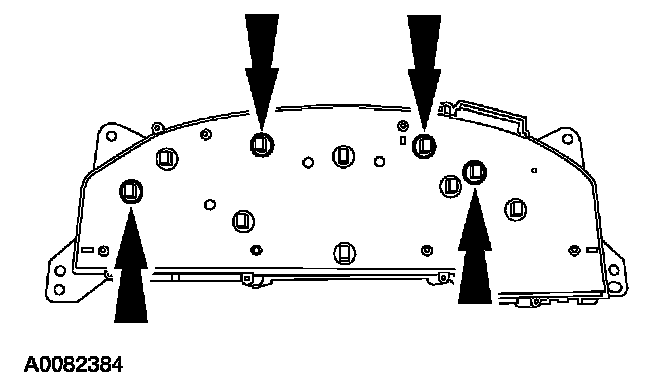

2. NOTE: To remove the warning indicator bulbs, rotate the bulb one quarter turn counterclockwise and lift it straight out from the instrument cluster.

Remove the warning indicator bulbs.

3. To install, reverse the removal procedure.
