Test B: The Compass Is Inaccurate

PINPOINT TEST B: THE COMPASS IS INACCURATE

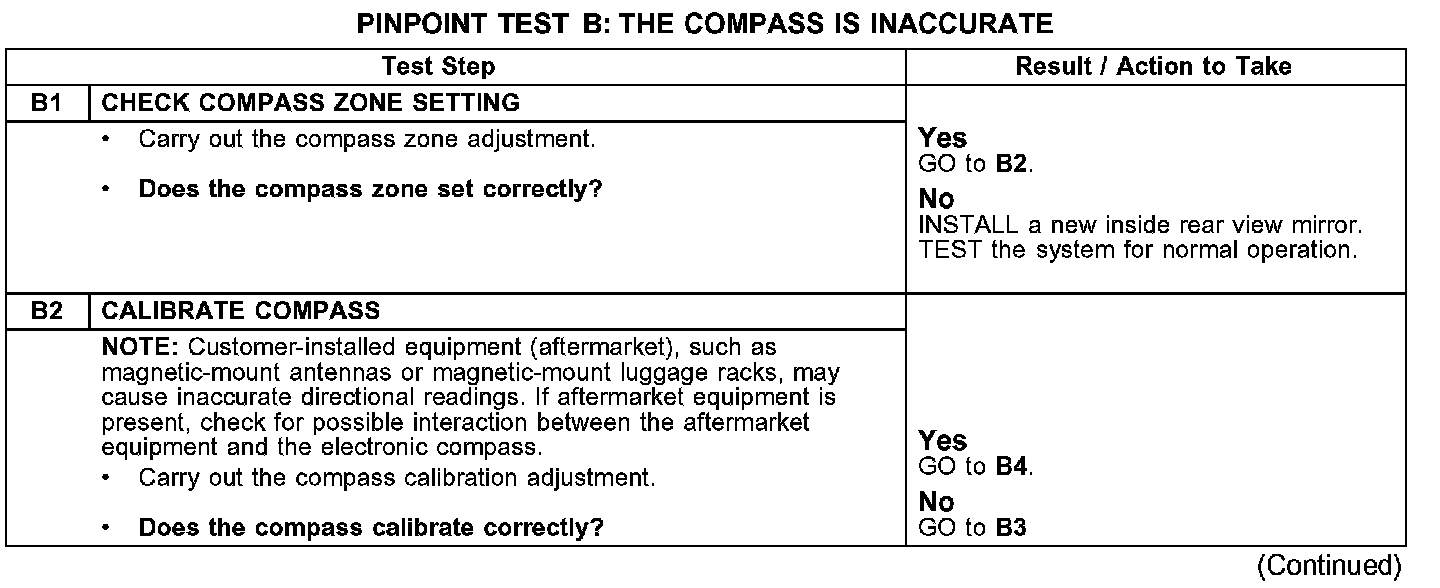

Test B1-B2:

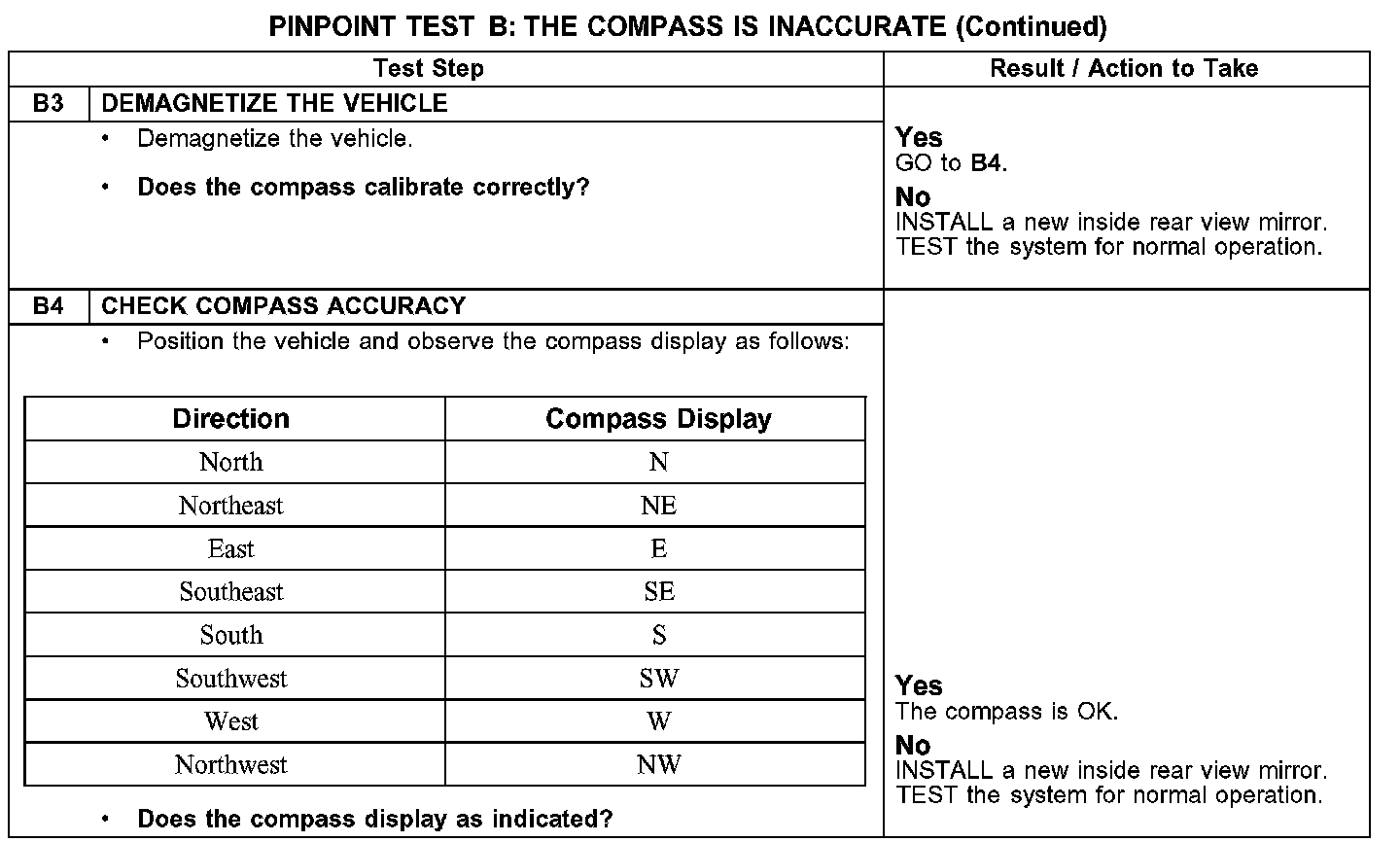

Test B3-B4:
