Test R: No Operation In High Blower Setting - Manual Climate Control
Test R: No Operation In High Blower Setting - Manual Climate Control
PINPOINT TEST R: NO OPERATION IN HIGH BLOWER SETTING - MANUAL CLIMATE CONTROL

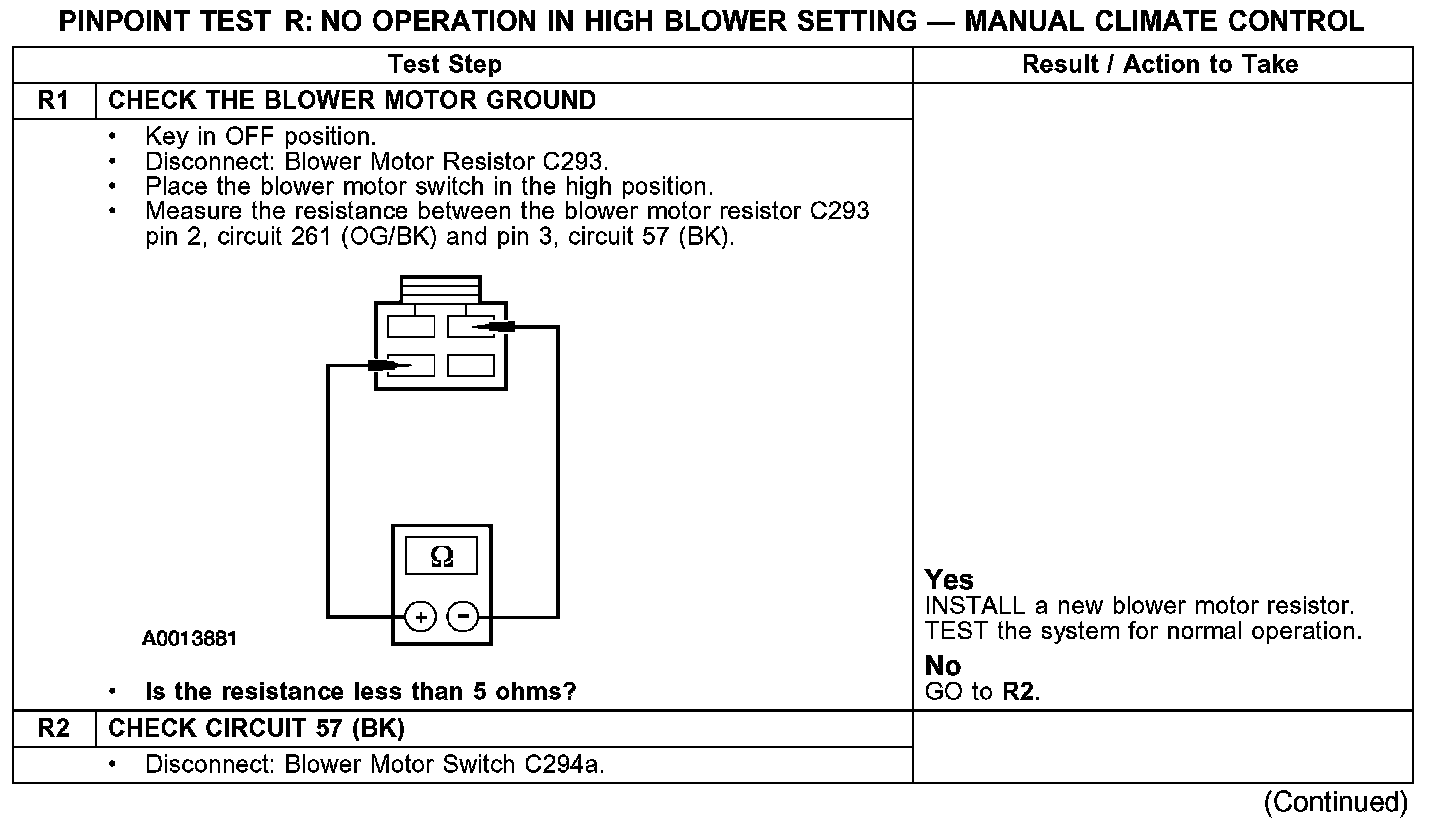

Test R1-R2:

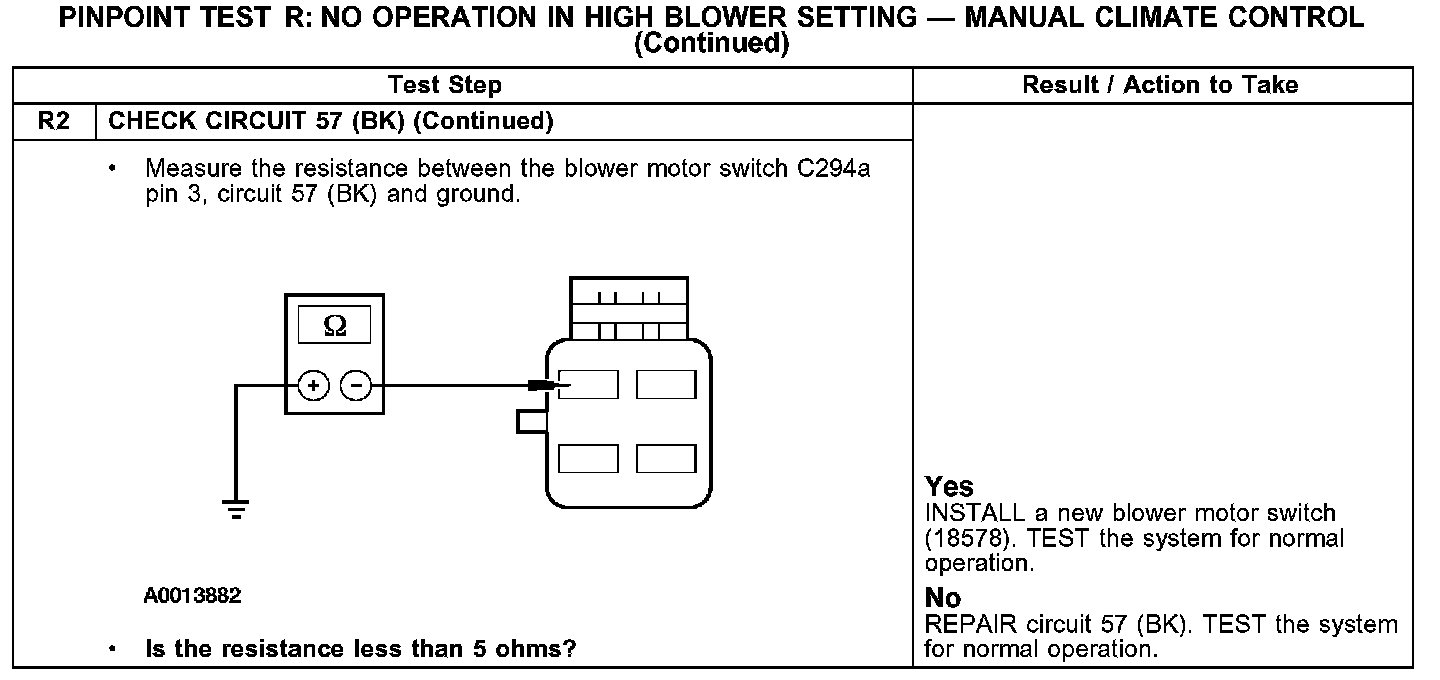

Test R2 Continued:
