Test P: The Blower Motor Operates Continuously In High Speed - Manual Climate Control
Test P: The Blower Motor Operates Continuously In High Speed - Manual Climate Control

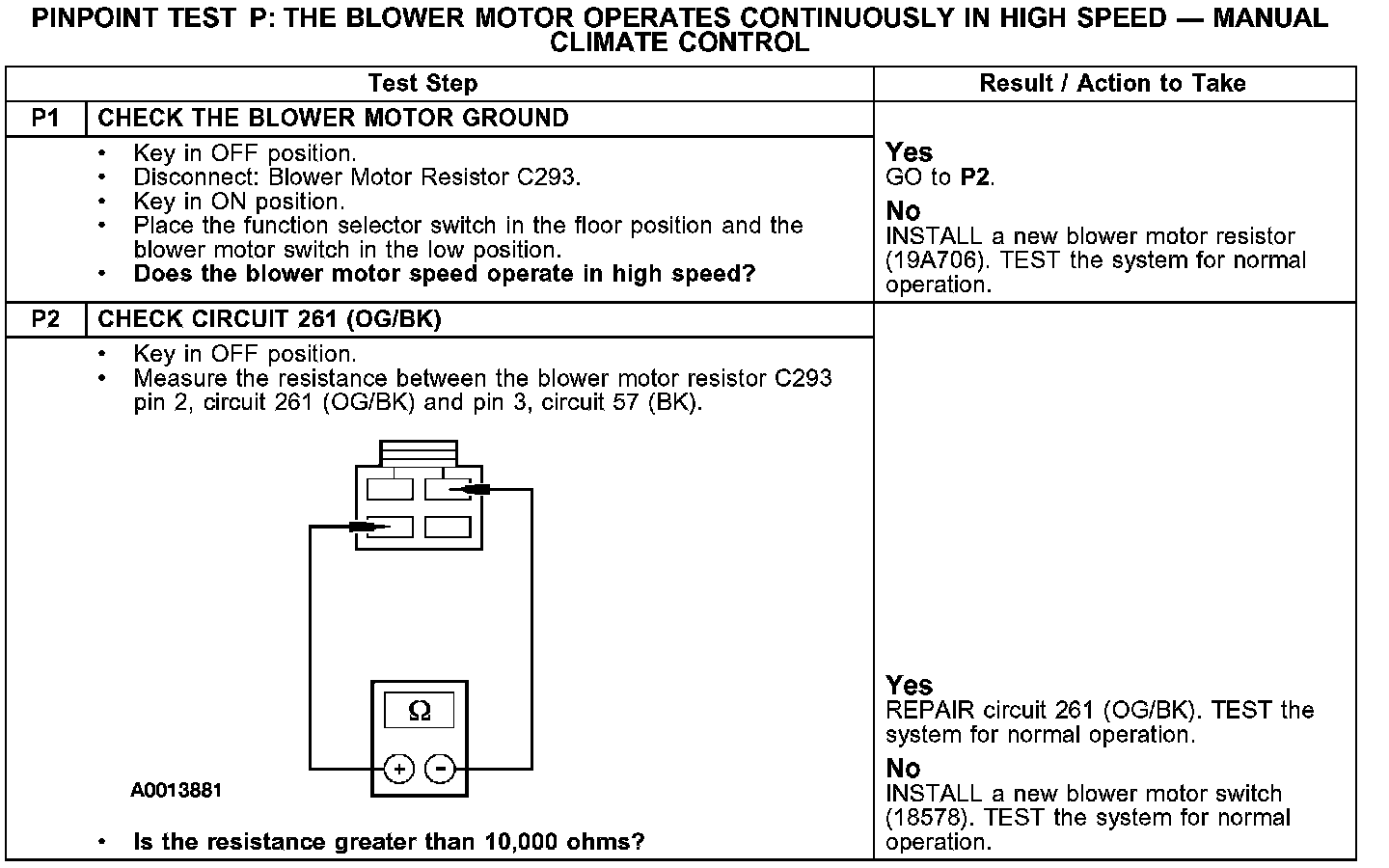

PINPOINT TEST P: THE
BLOWER MOTOR
OPERATES CONTINUOUSLY IN HIGH SPEED - MANUAL CLIMATE CONTROL
Test P1-P2:
