Test M: The Blower Motor Does Not Operate Manual Climate Control
Test M: The Blower Motor Does Not Operate Manual Climate Control
PINPOINT TEST M: THE
BLOWER MOTOR
DOES NOT OPERATE MANUAL CLIMATE CONTROL

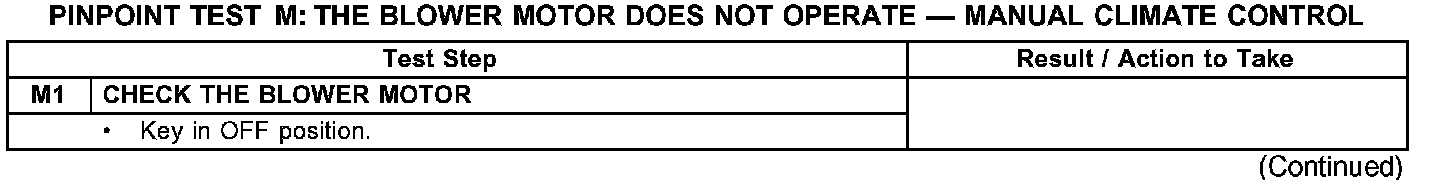

Test M1:

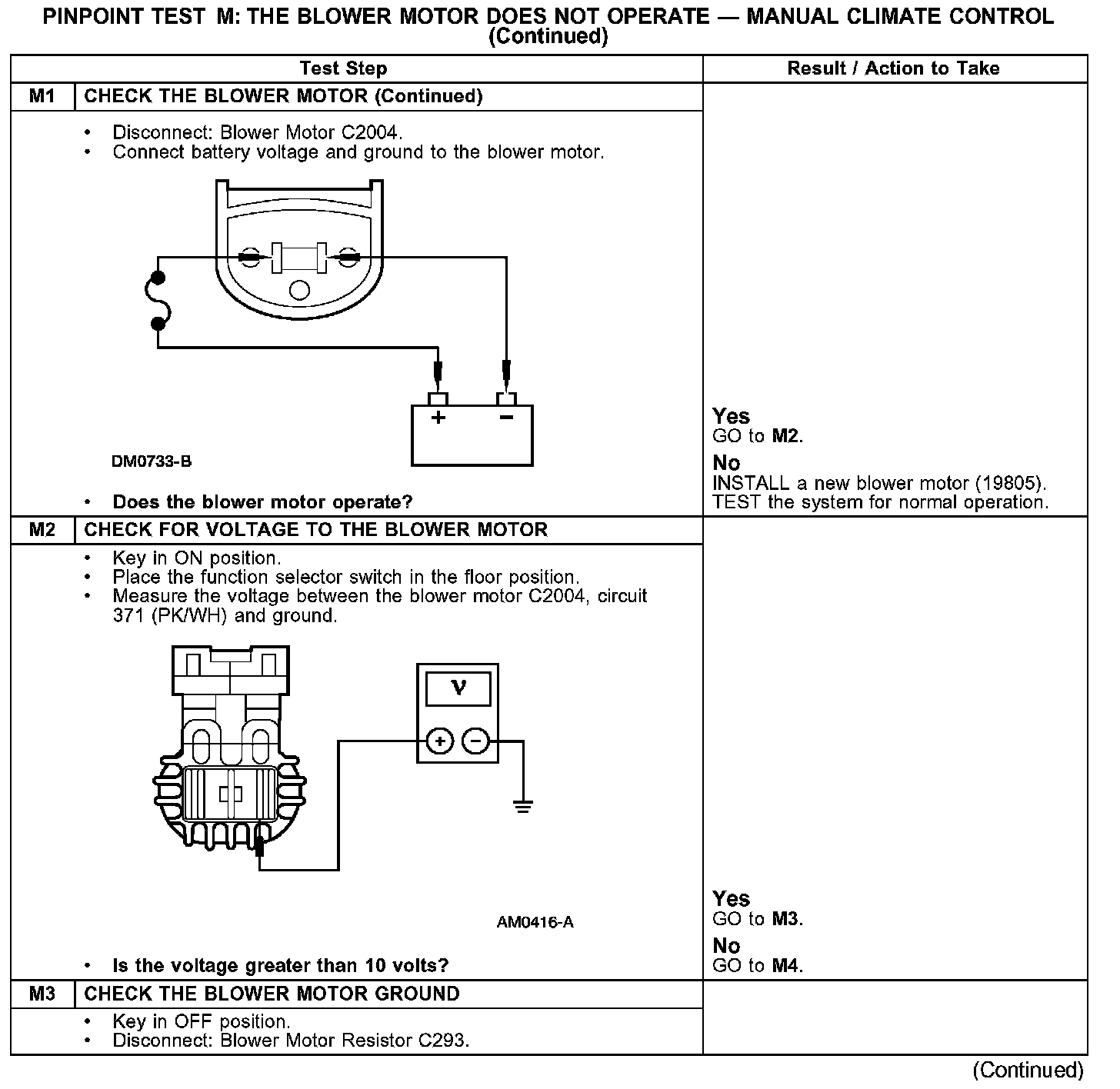

Test M1-M3:

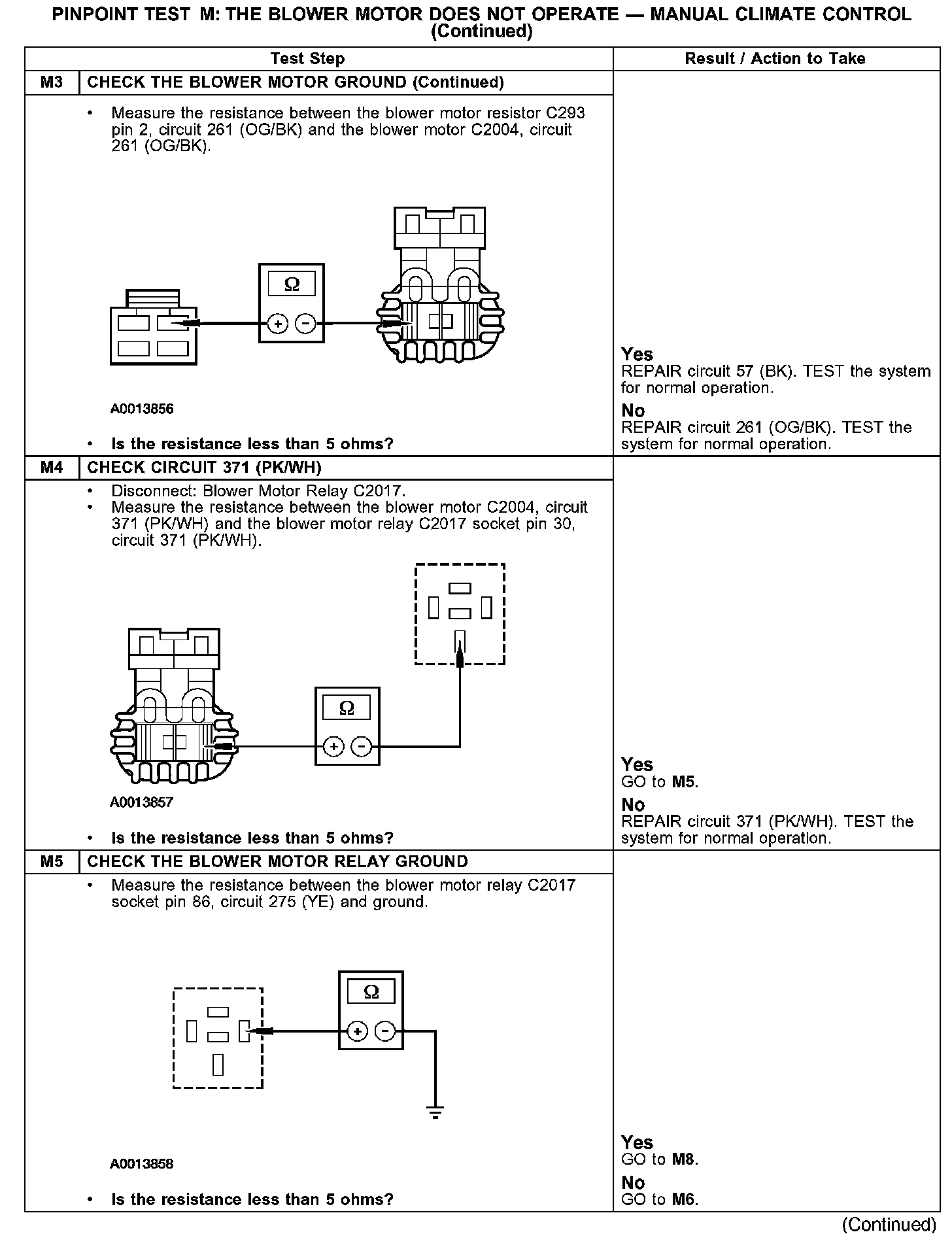

Test M3-M5:
Test M6-M8:

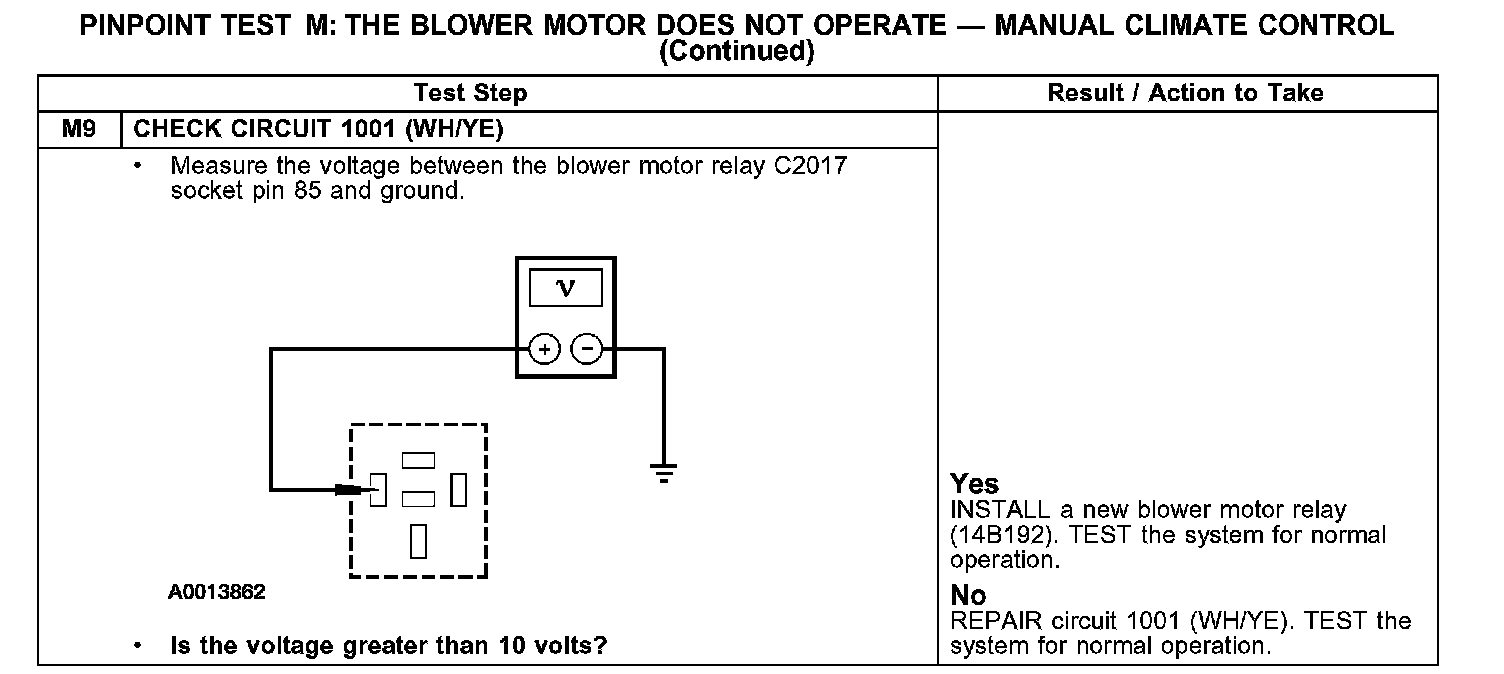

Test M9:
