Test J: The A/C Does Not Operate/Does Not Operate Correctly
Test J: The A/C Does Not Operate/Does Not Operate Correctly
PINPOINT TEST J: THE A/C DOES NOT OPERATE/DOES NOT OPERATE CORRECTLY

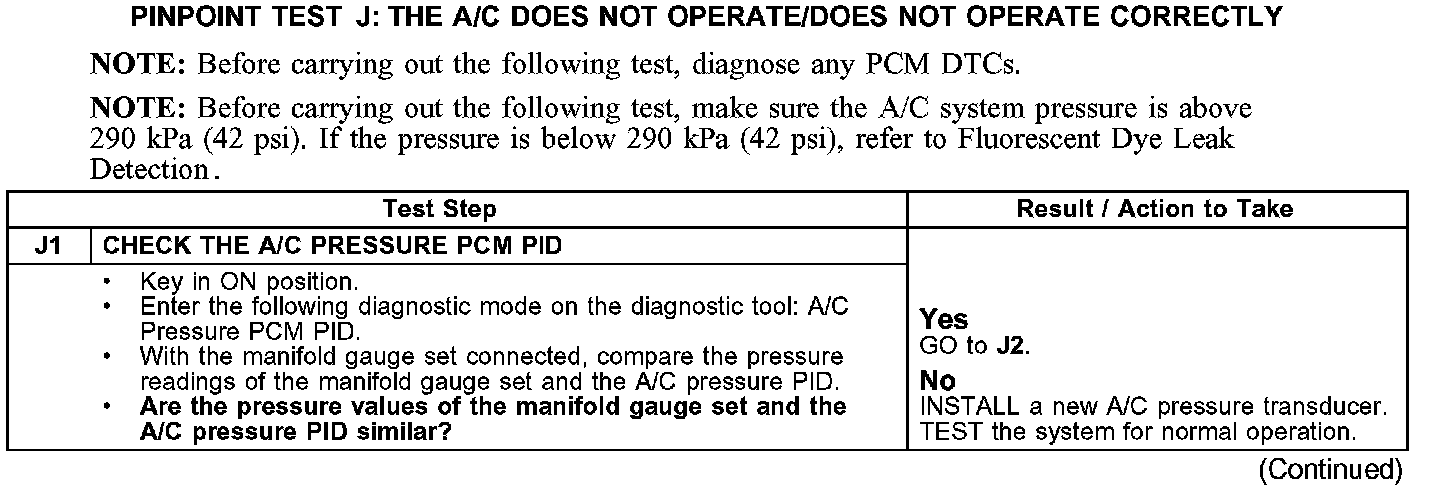

Test J1:

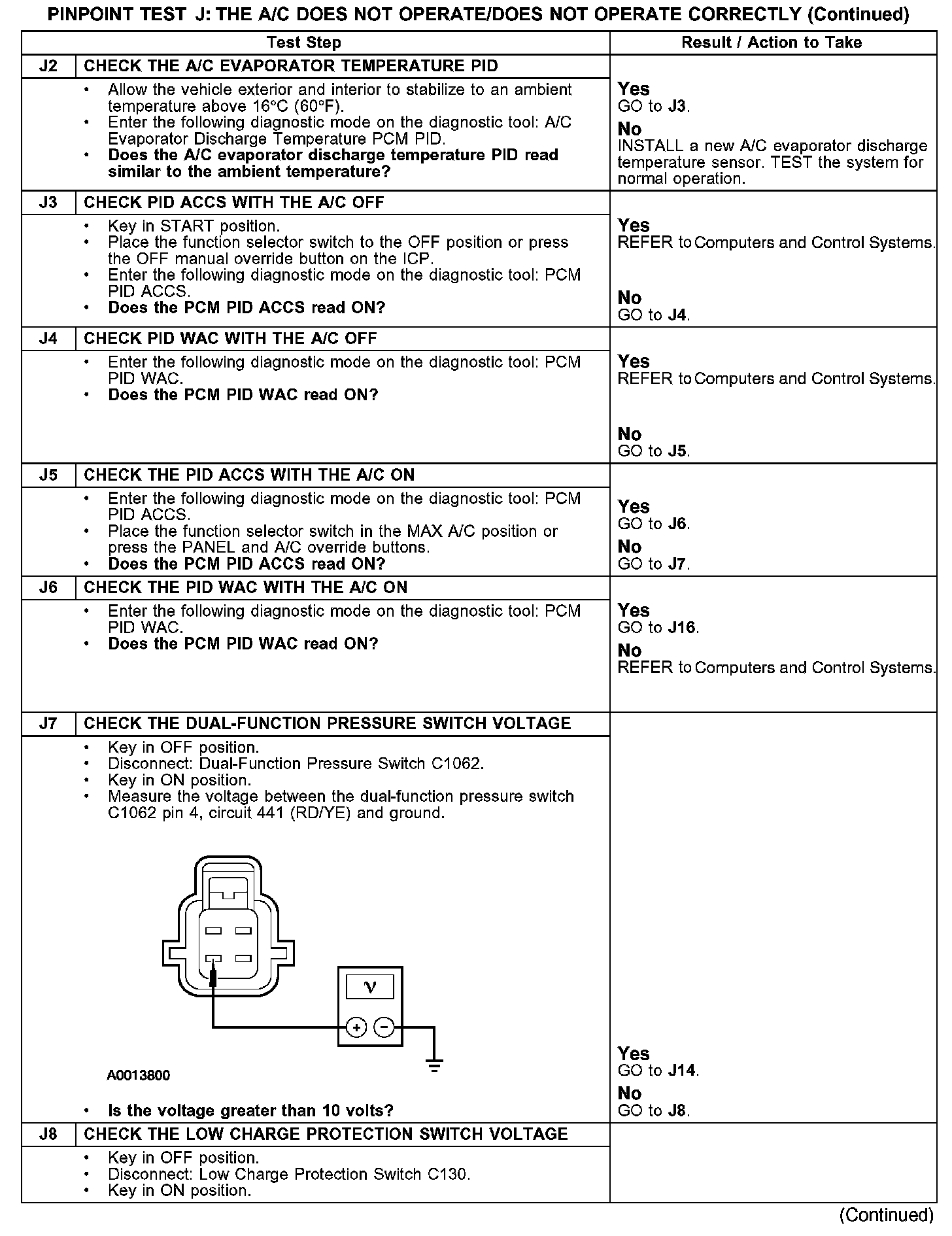

Test J2-J8:

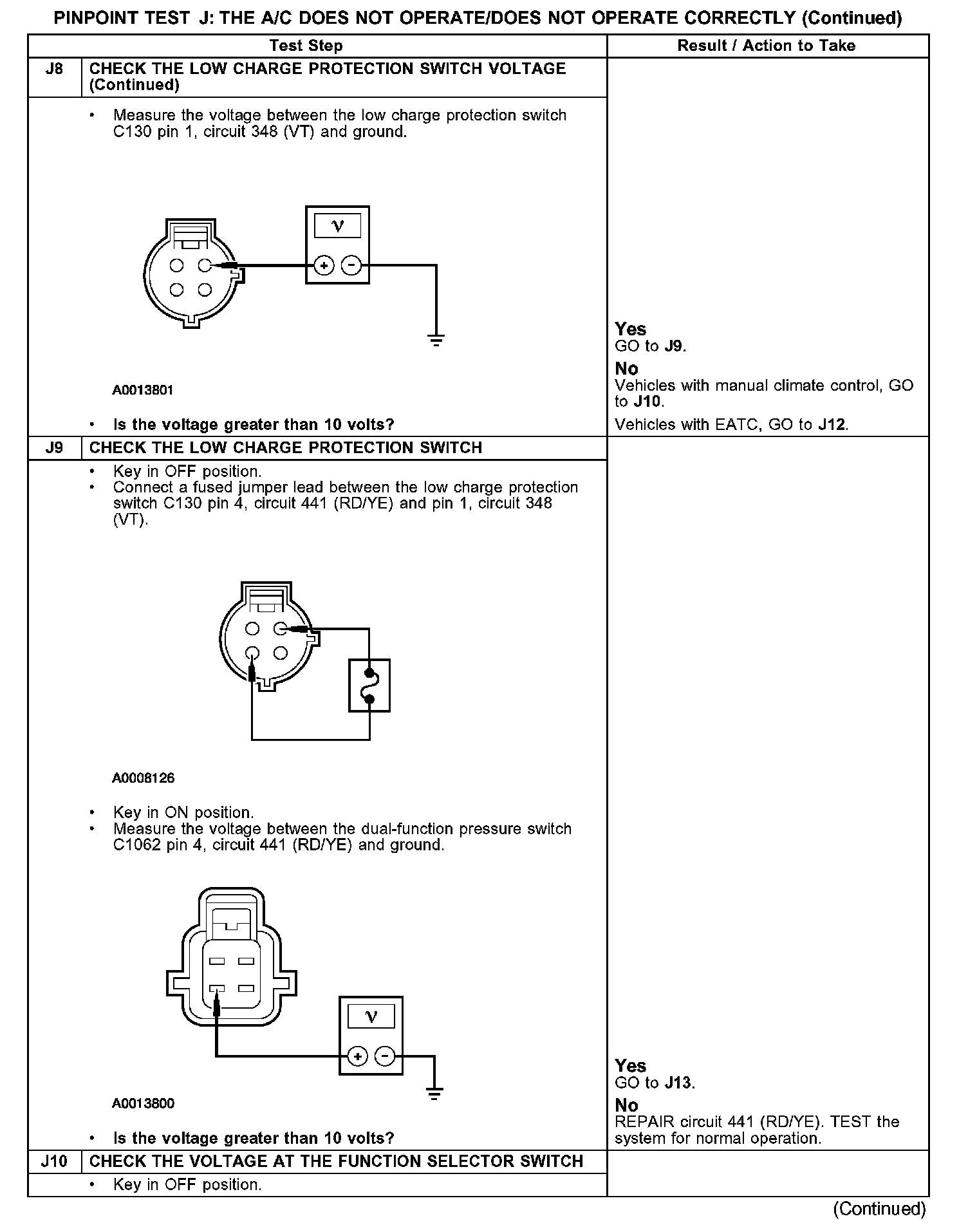

Test J8-J10:

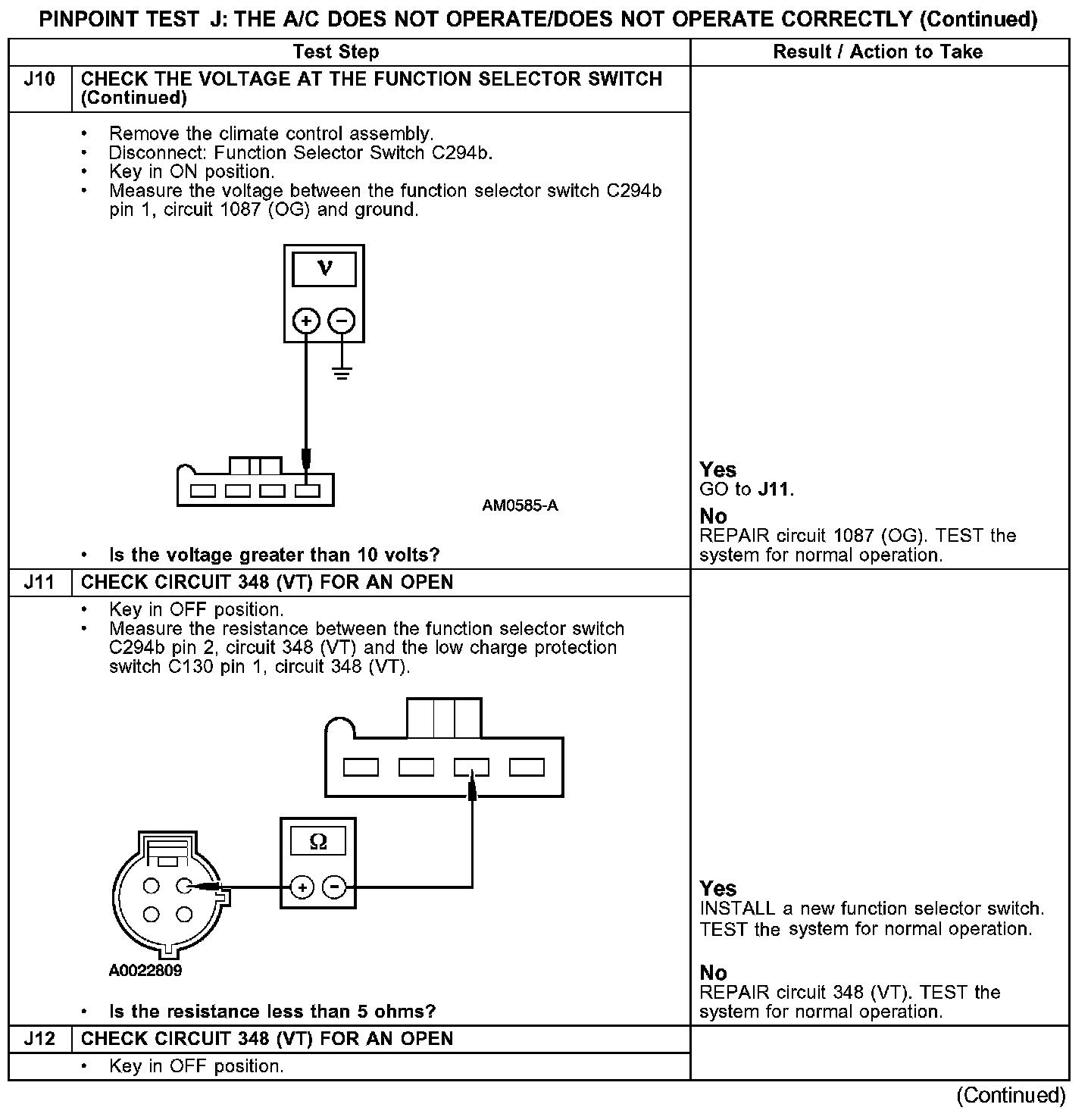

Test J10-J12:

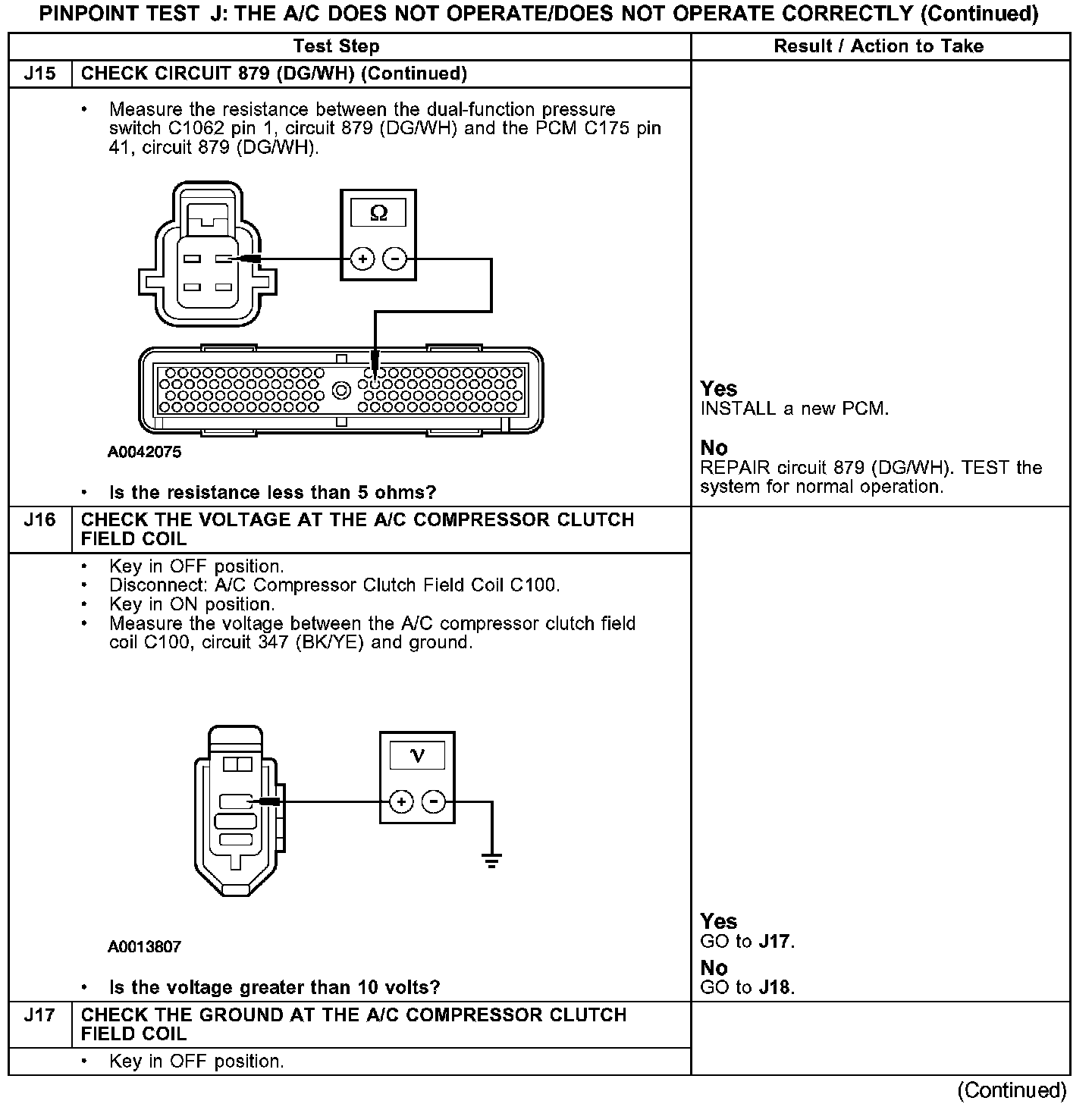

Test J12-J15:

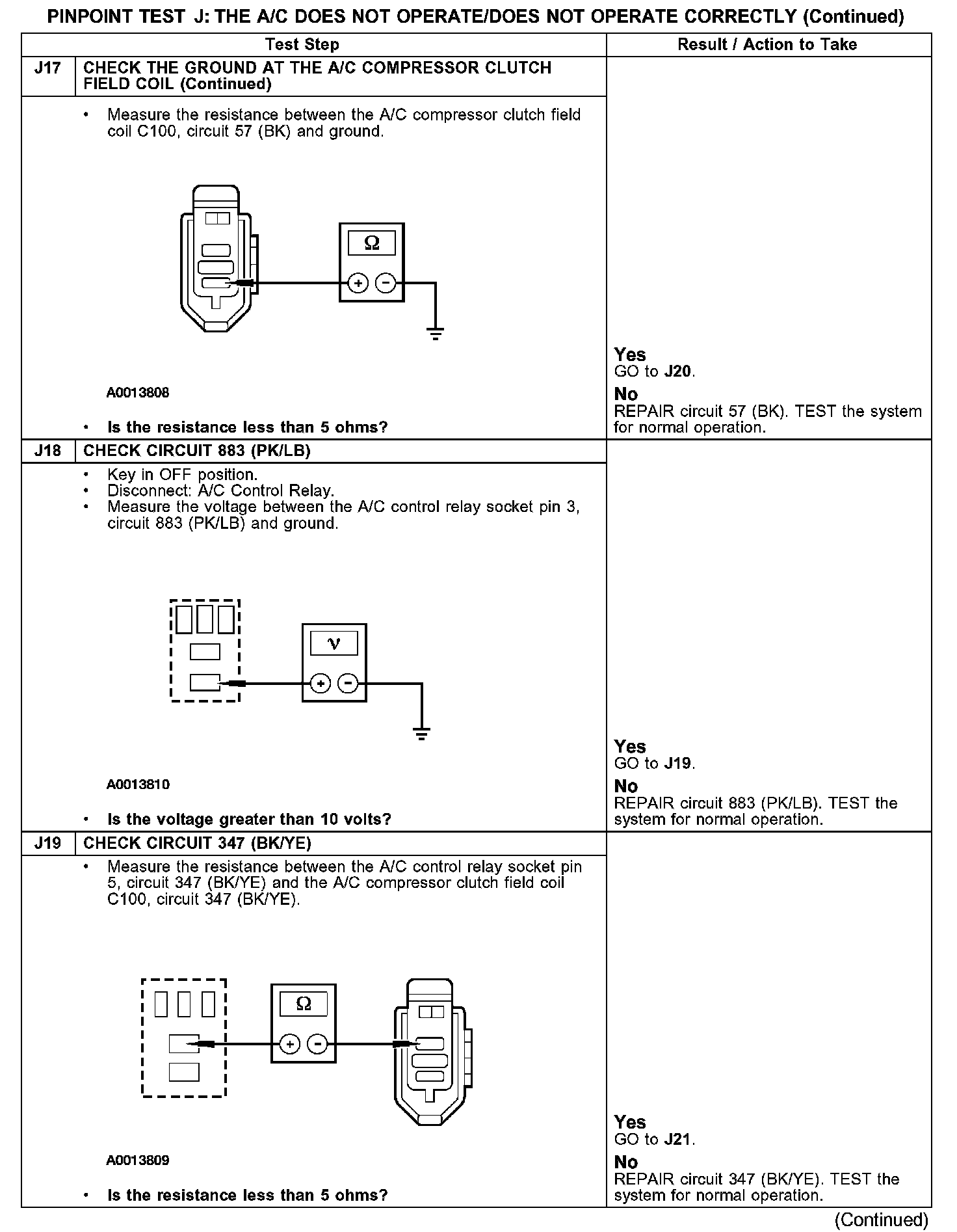

Test J15-J17:
Test J17-J19:

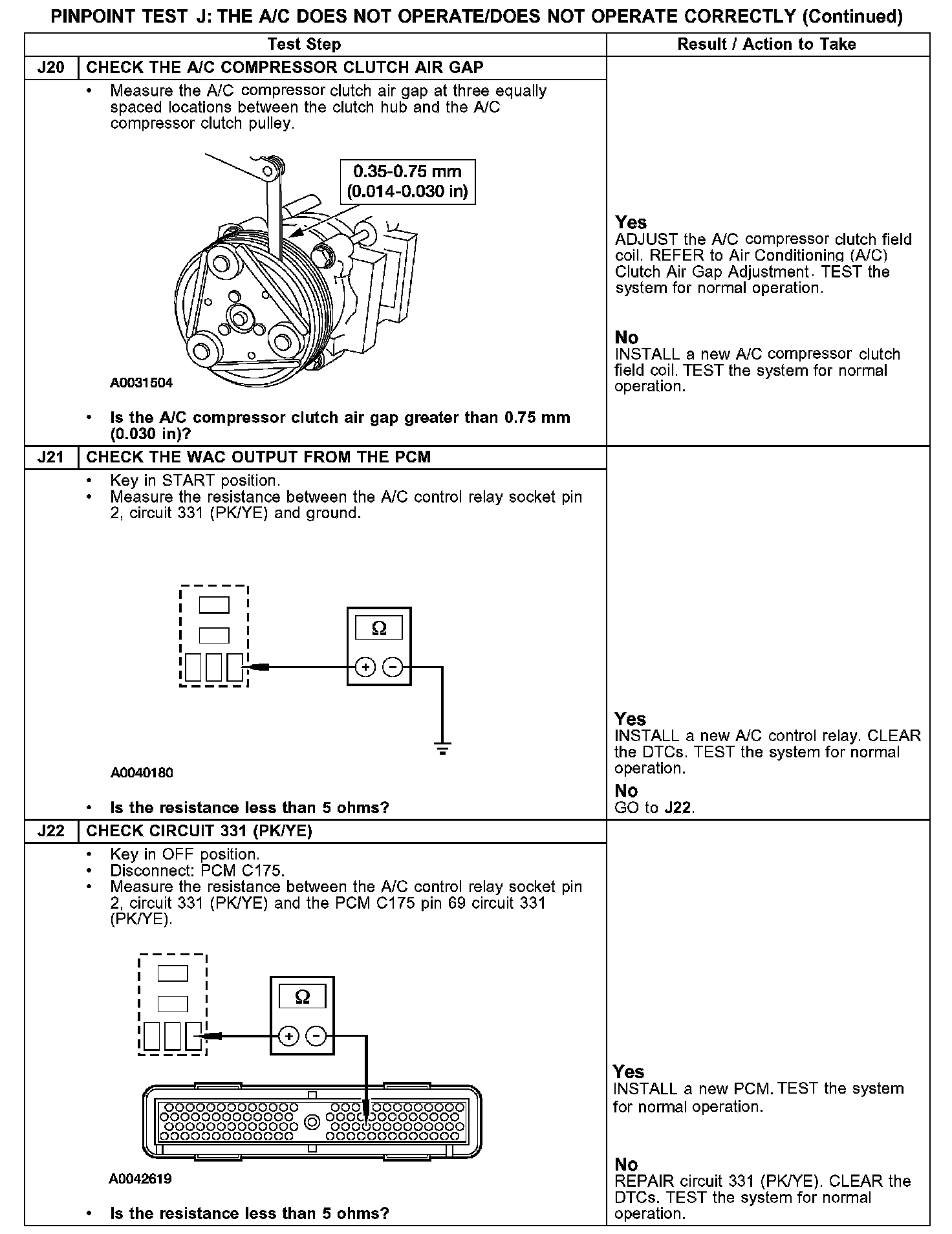

Test J20-J22:
