Test H: Incorrect/Erratic Direction of Air Flow From Outlet - EATC
Test H: Incorrect/Erratic Direction of Air Flow From Outlet - EATC
PINPOINT TEST H: INCORRECT/ERRATIC DIRECTION OF AIR FLOW FROM OUTLET - EATC

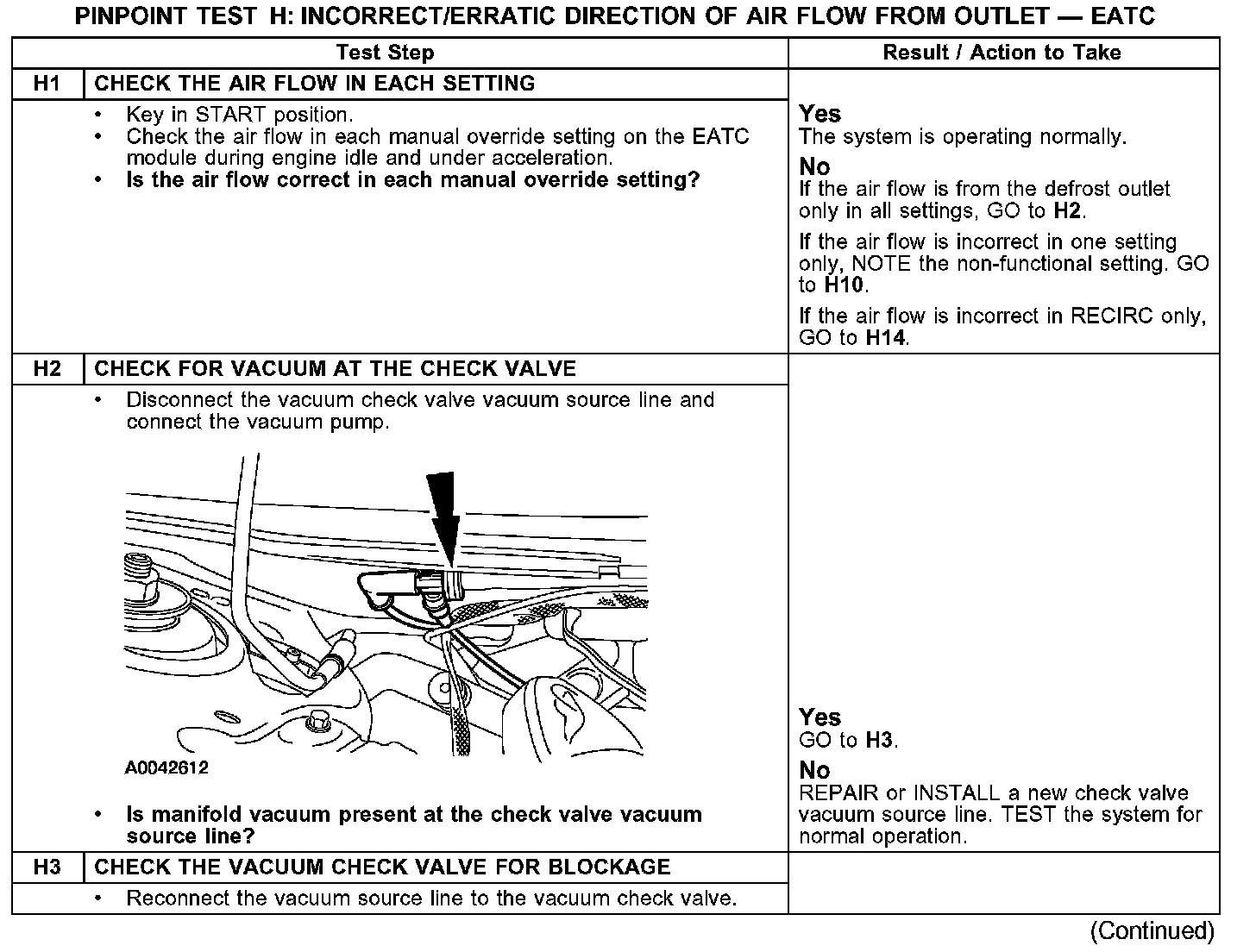

Test H1-H3:

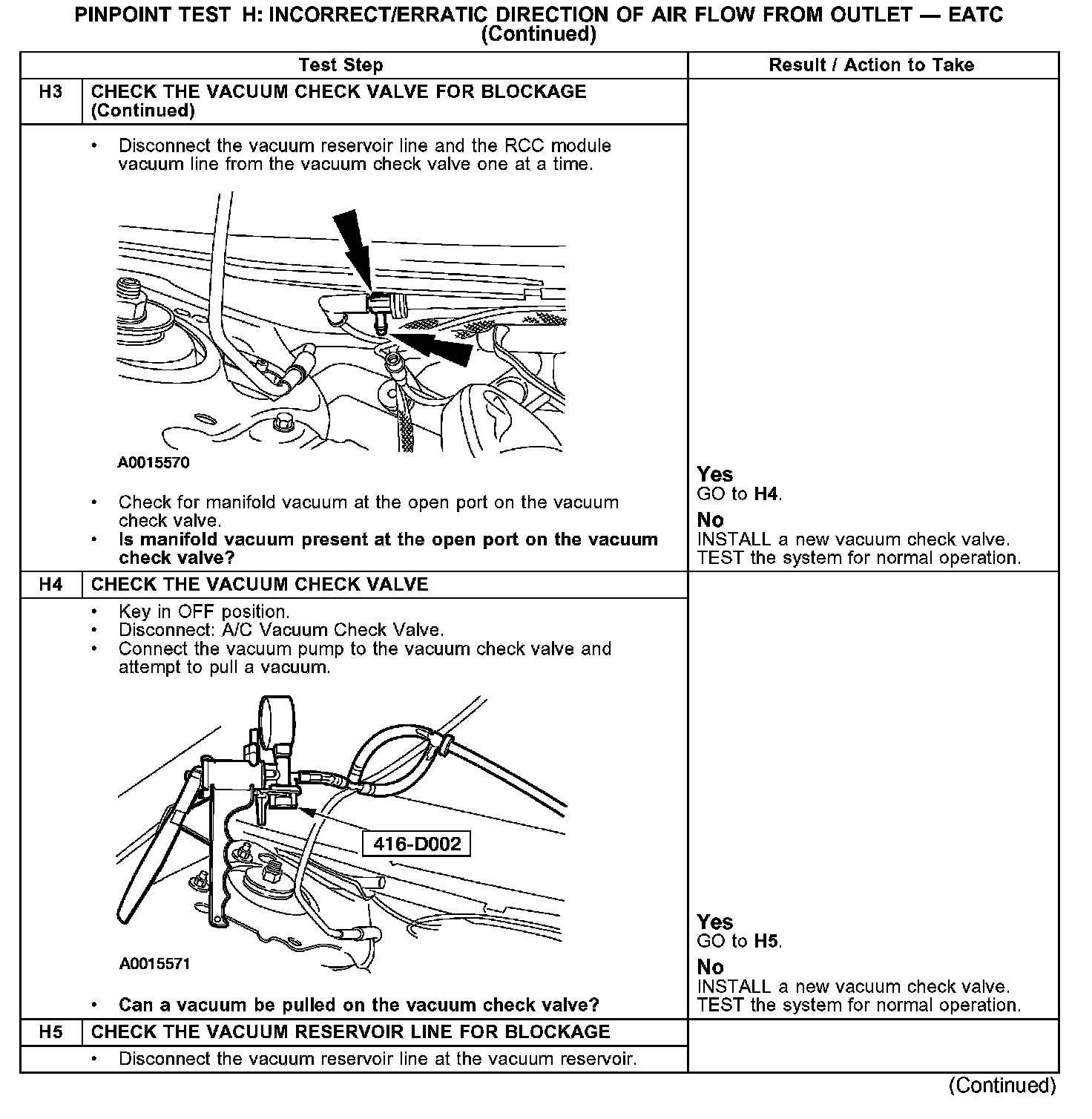

Test H3-H5:

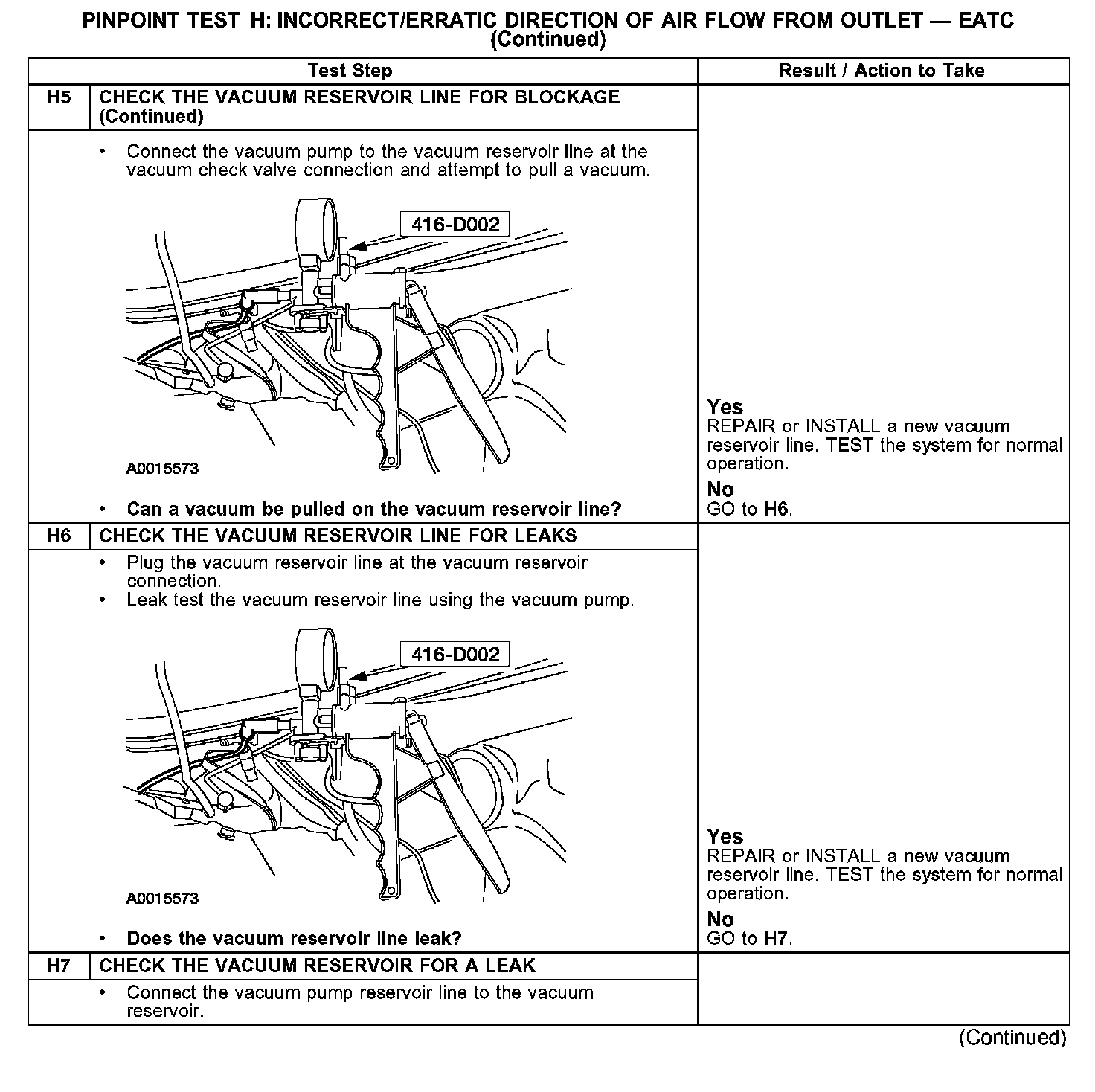

Test H5-H7:

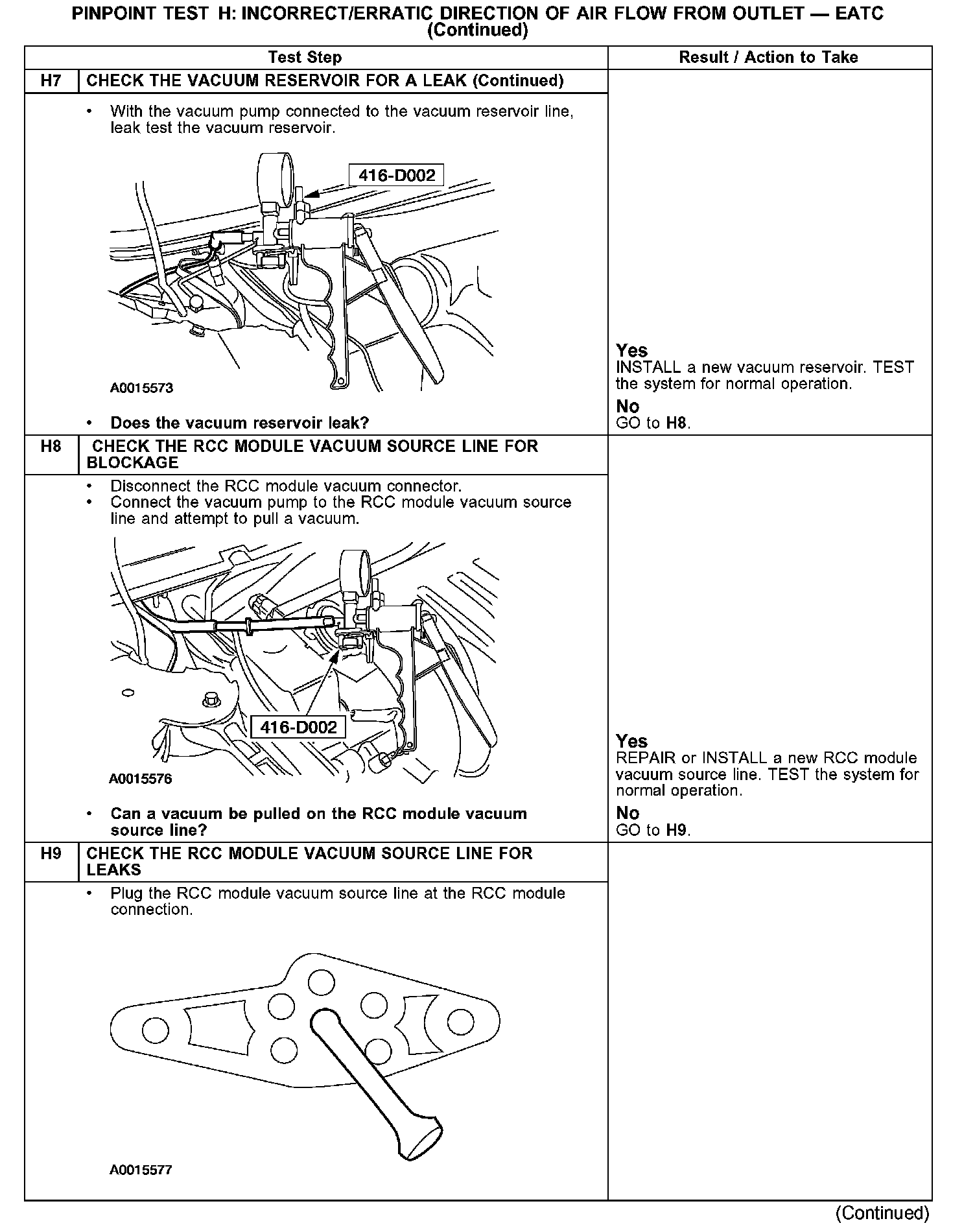

Test H7-H9:

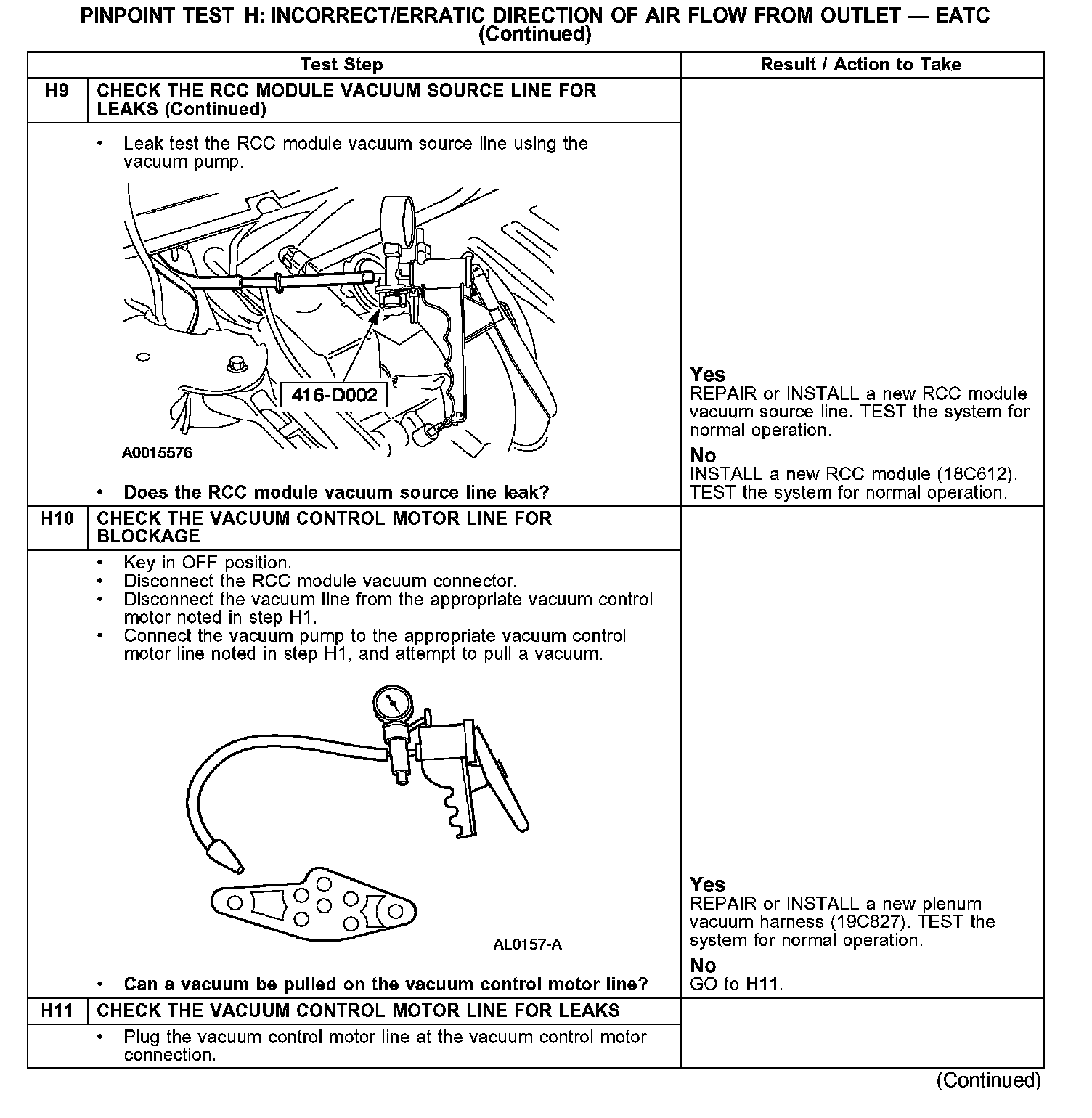

Test H9-H11:
Test H11-H14:

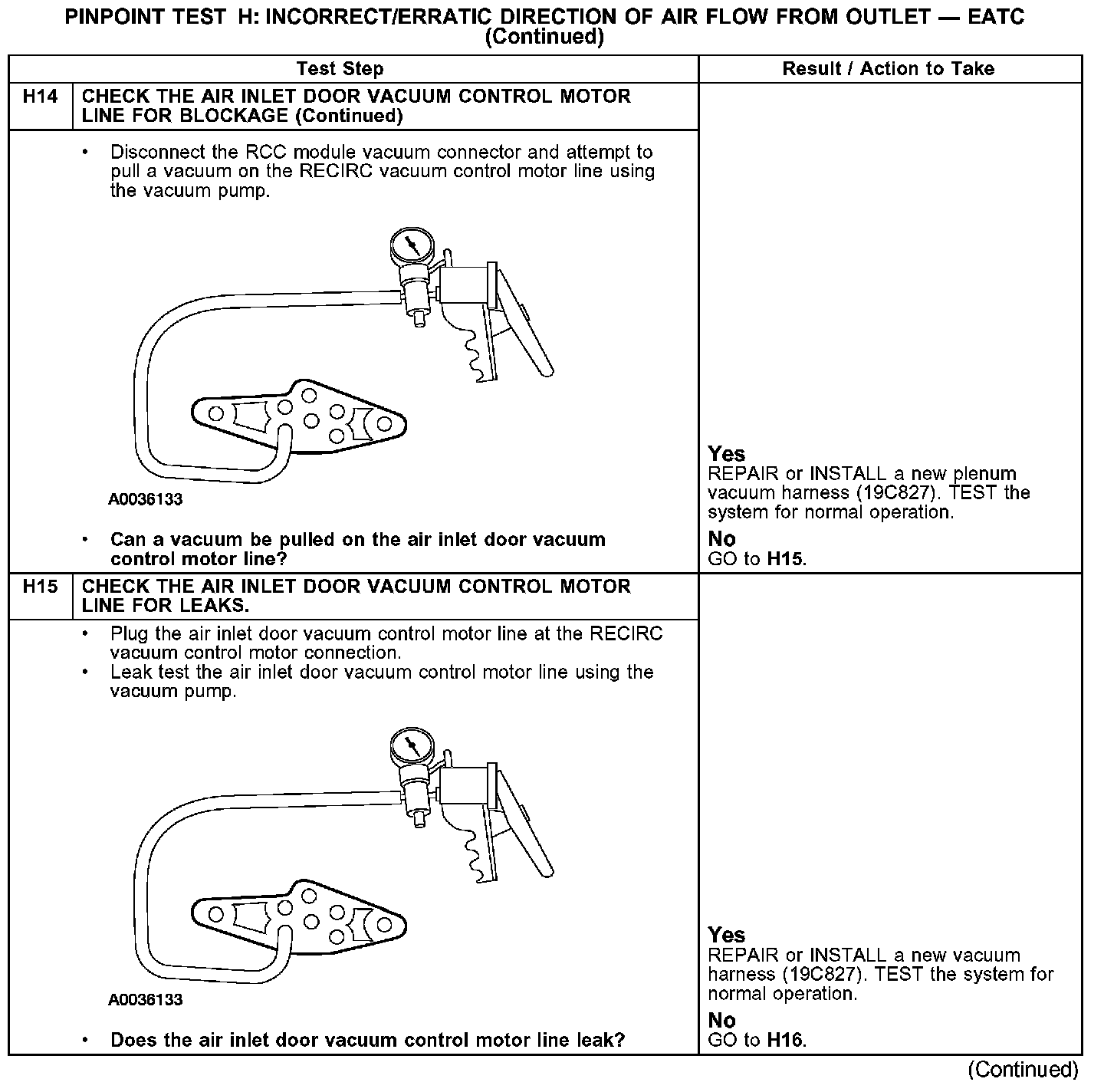

Test H14-H15:
Test H16-H17:
