Manual Climate Control

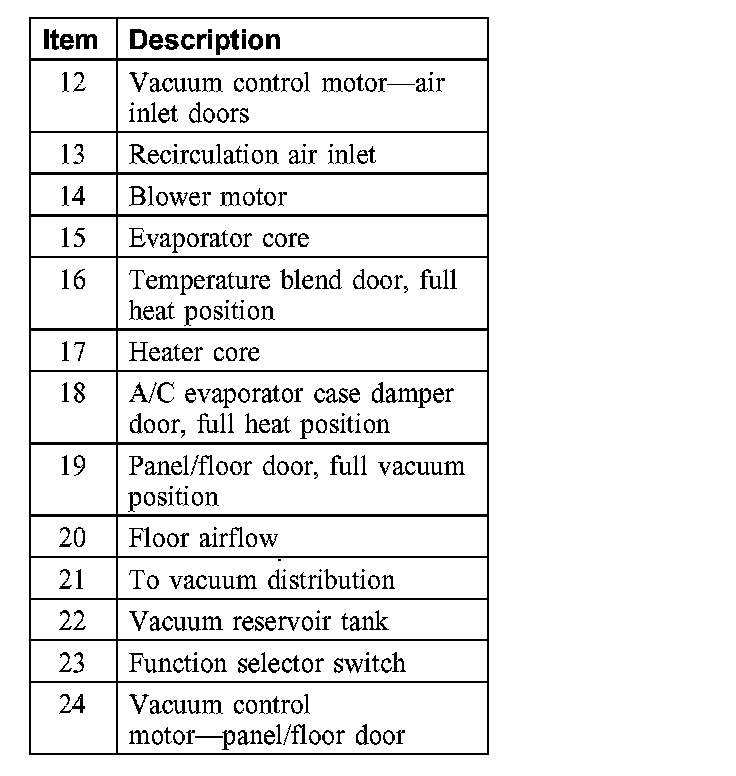

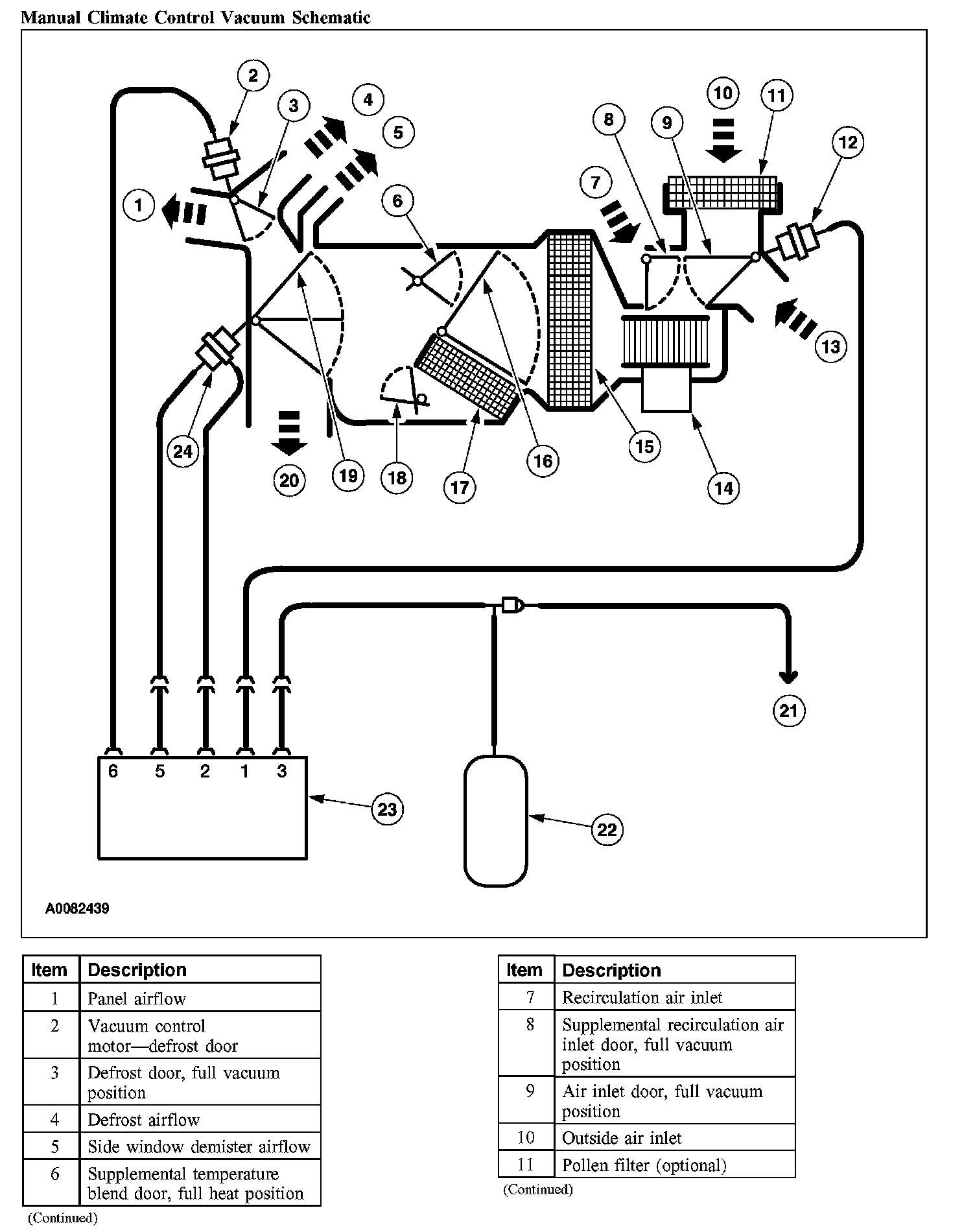

Manual Climate Control Vaccum Schematic, Part 1:






Manual Climate Control Vaccum Schematic, Part 2:

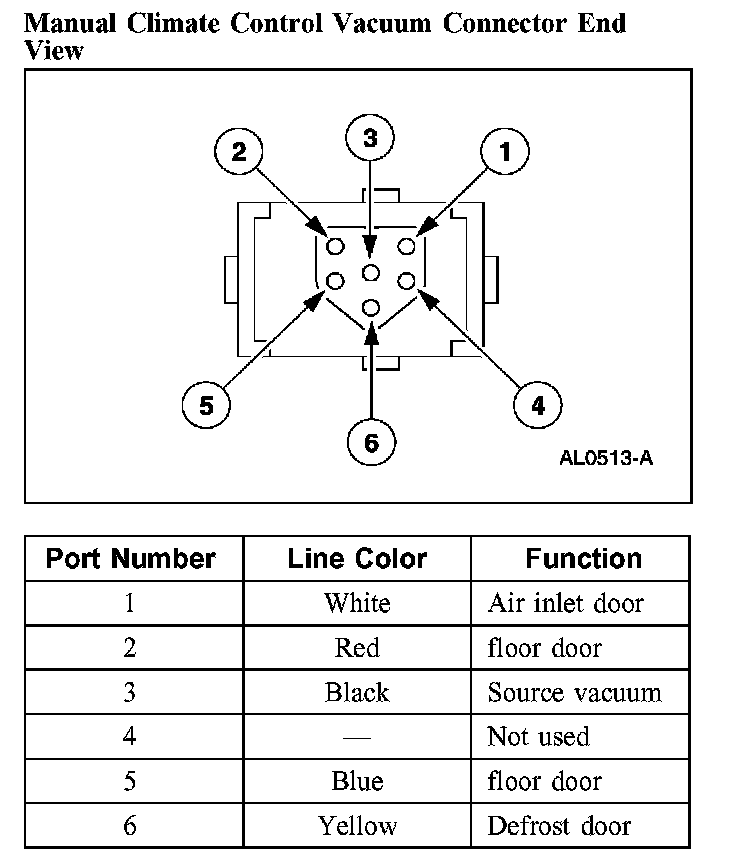

Manual Climate Control Vacuum Connectorener End View:

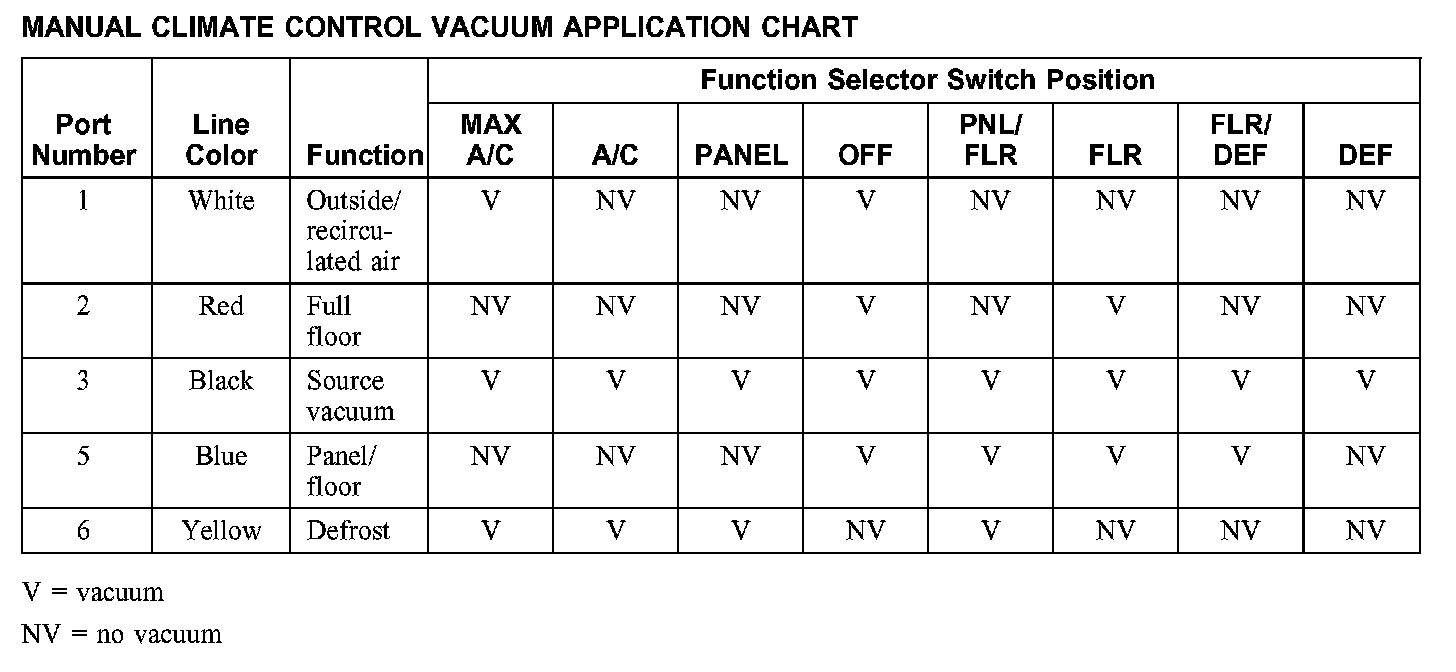

Manual Climate Control Vaccum Application Chart:
