Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> A/C Evaporator Discharge Temperature Sensor

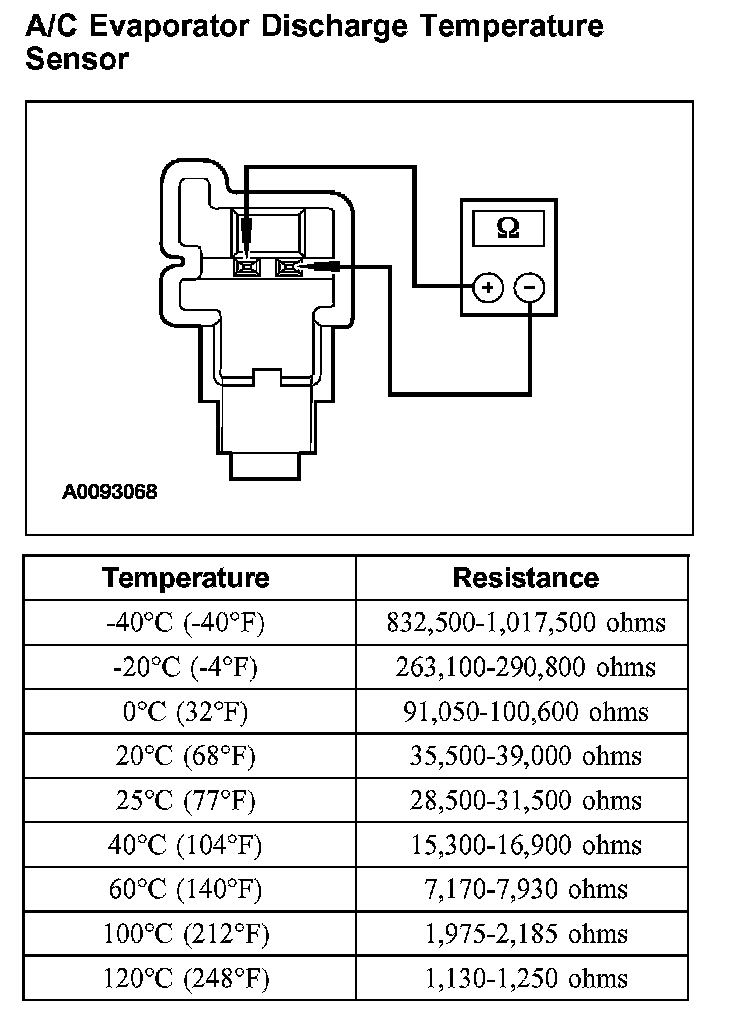

A/C Evaporator Discharge Temperature Sensor

A/C Evaporator Discharge Temperature Sensor:
