Remove and Installation

PLENUM CHAMBER

REMOVAL

NOTE: Vehicle with a center console is shown, vehicles without a center console are similar.

1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel, Instrument Panel

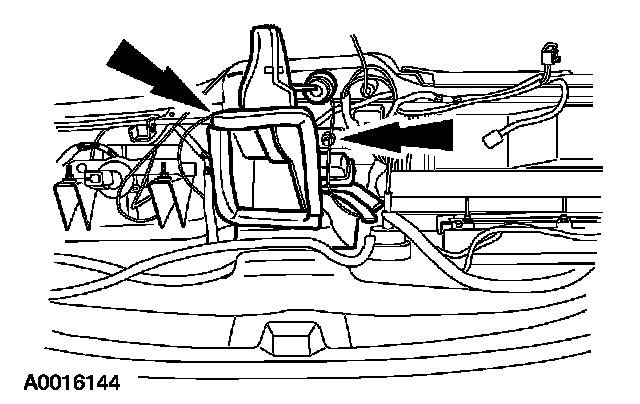

2. Disconnect the driver side and passenger side demister hoses.

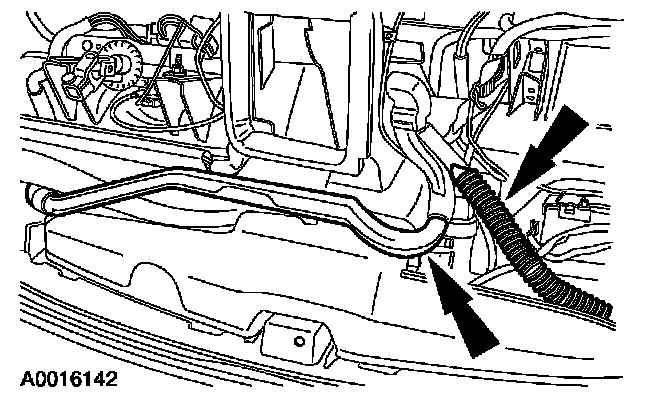

3. Disconnect the vacuum control motor hose.







4. Remove the two screws and the plenum chamber.


INSTALLATION
1. To install, reverse the removal procedure.
