Blower Motor Resistor: Service and Repair
BLOWER MOTOR RESISTORREMOVAL
1. Remove the right-side instrument panel insulator.

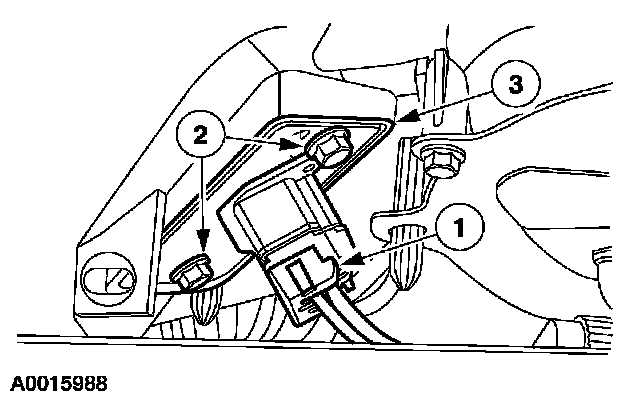

2. Remove the blower motor resistor.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the blower motor resistor.
INSTALLATION
1. To install, reverse the removal procedure.
