Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

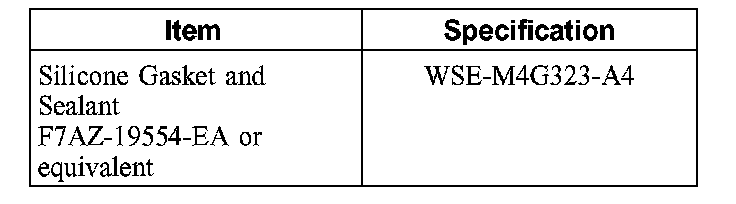

Material

Removal





1. Remove the oil level indicator and tube.

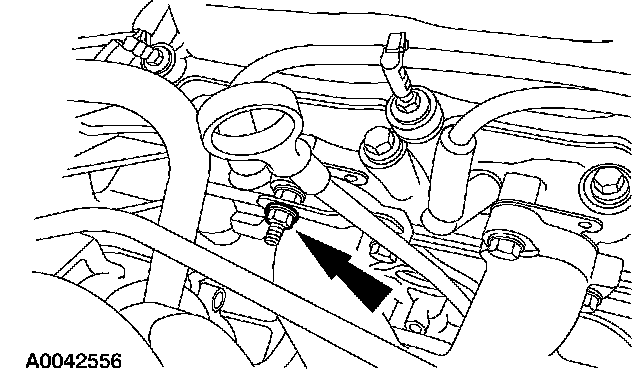

^ Remove the nut.
^ Remove the tube.

Installation

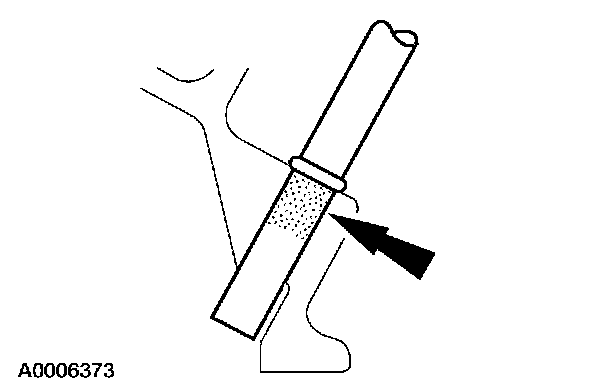

1. Coat the sealing surface of the oil level indicator tube with silicone gasket and sealant.





2. Install the oil level indicator tube.
^ Install the tube.
^ Install the nut.
