Harmonic Balancer - Crankshaft Pulley: Service and Repair

Crankshaft Pulley

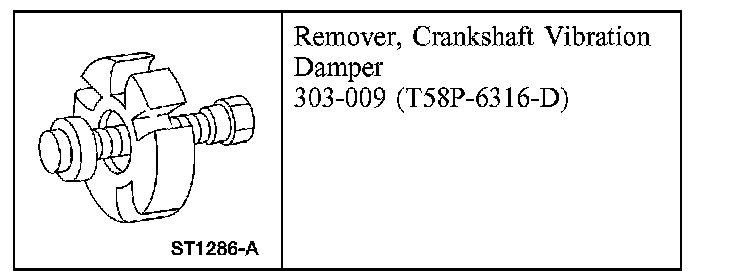

Special Tool(s)

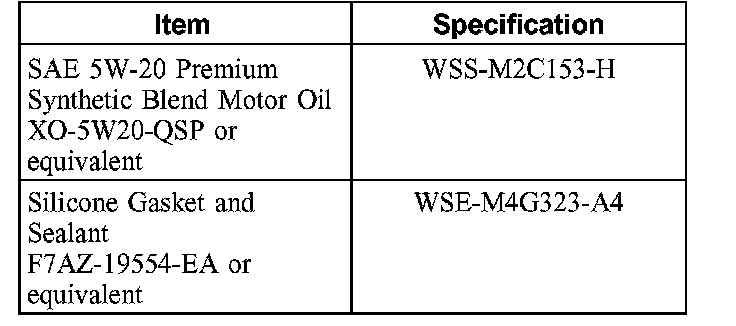

Material

Removal
1. Remove the accessory drive belt.
2. Raise and support the vehicle.
3. Remove the RH front wheel.
4. Remove the splash shield.

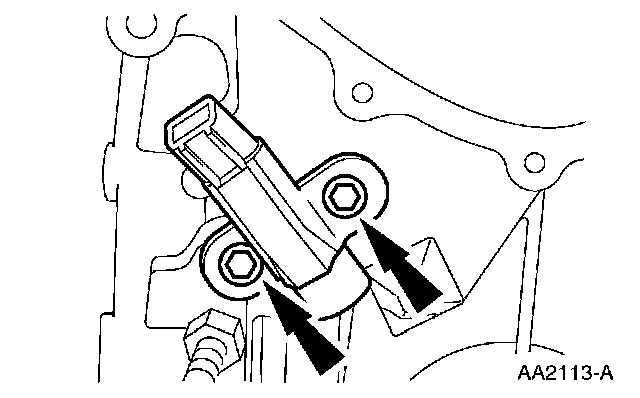

5. Disconnect and remove the Crankshaft Position (CKP) sensor.

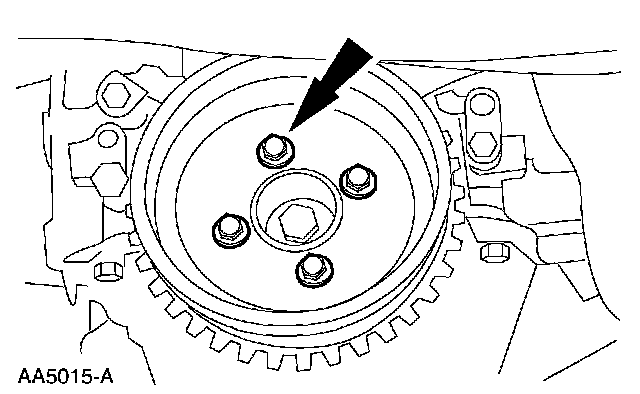

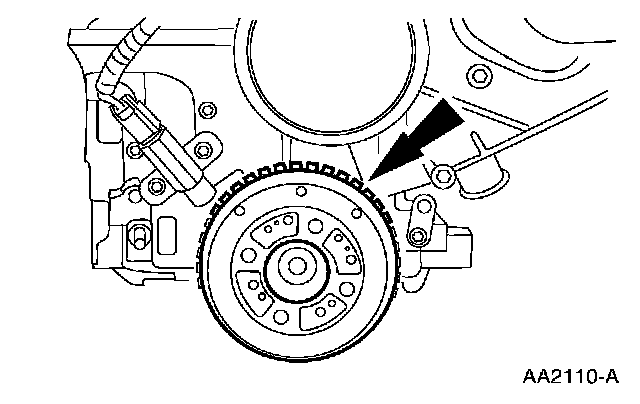

6. Remove the bolts and the crankshaft pulley.

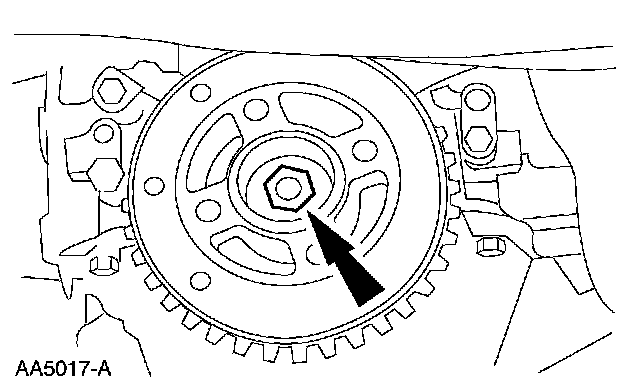

7. Remove the crankshaft damper bolt and washer.

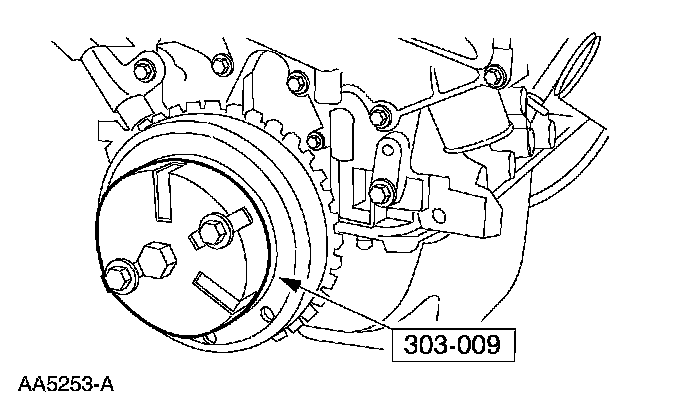

8. Using the special tool, remove the crankshaft damper.

Installation





1. NOTE: If the crankshaft damper is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Install the crankshaft damper.
^ Coat the sealing surfaces of the crankshaft damper with clean engine oil.
^ Coat the crankshaft damper keyway with silicone gasket and sealant.
^ Install the crankshaft damper.

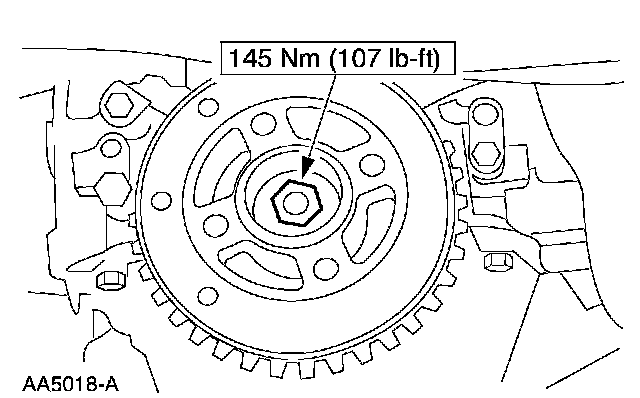

2. Install the crankshaft damper bolt and the washer.

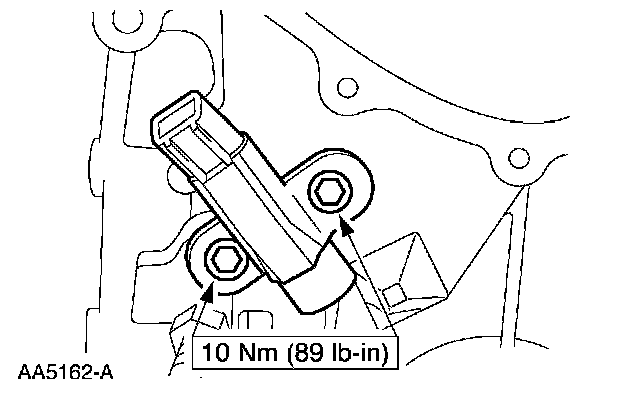

3. Install and connect the Crankshaft Position (CKP) sensor.





4. Install the crankshaft pulley.
5. Install the splash shield.
6. Install the RH front wheel.
7. Lower the vehicle.
8. Install the accessory drive belt.
