Hydraulic Lash Adjuster

Hydraulic Lash Adjuster

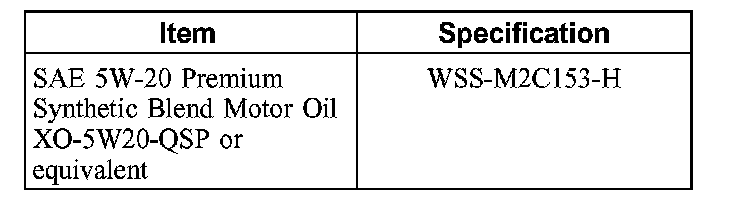

Material

Removal

NOTE: For a valve train noise concern, inspect the valve-to-rocker arm clearance, rocker arms and push rods for wear.

1. Remove the lower intake manifold.
2. Remove the pushrods.

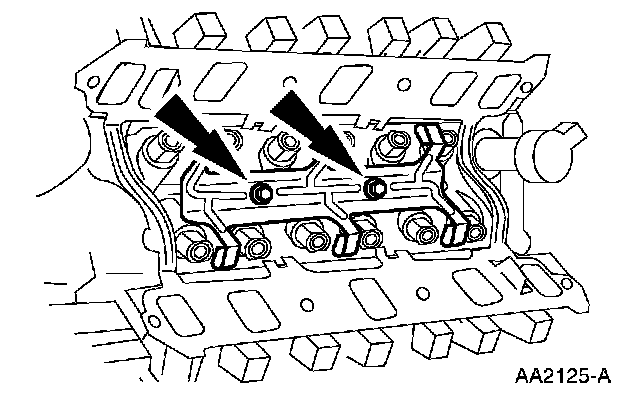

3. Remove the tappet guide plate retainer.

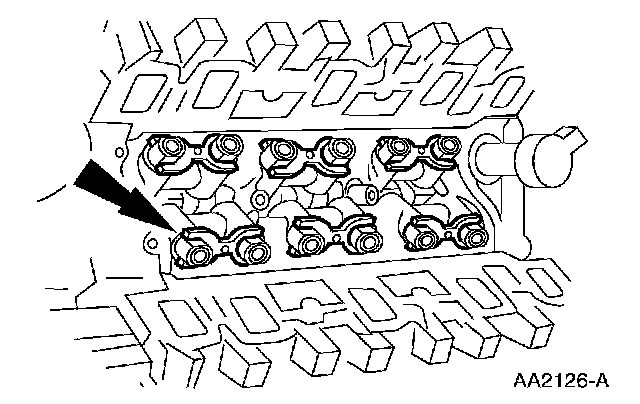

4. Remove the valve tappet guide plates.

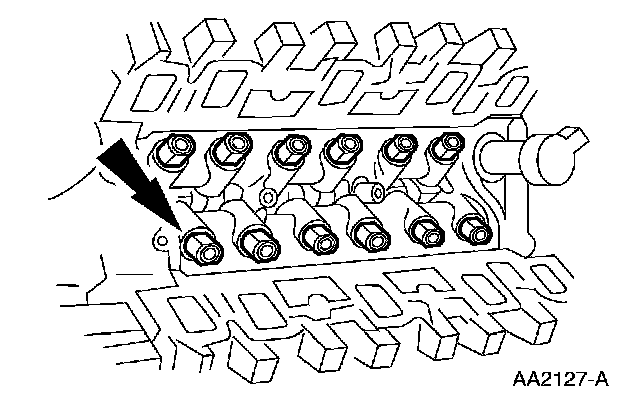

5. Remove the valve tappets.

Installation

1. NOTE: Lubricate the valve tappets and the valve tappet bores with clean engine oil.

Install the valve tappets.





2. Install the valve tappet guide plates.

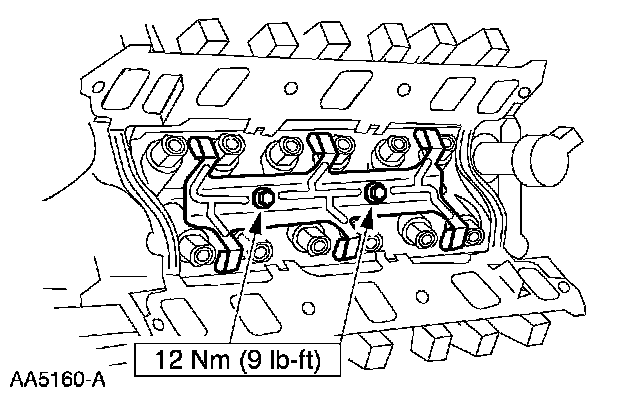

3. Install the tappet guide plate retainer.
4. Install the pushrods.
5. Install the lower intake manifold.
