Test D: The Cooling Fans Are Inoperative
Test D: The Cooling Fans Are Inoperative
PINPOINT TEST D: THE COOLING FANS ARE INOPERATIVE

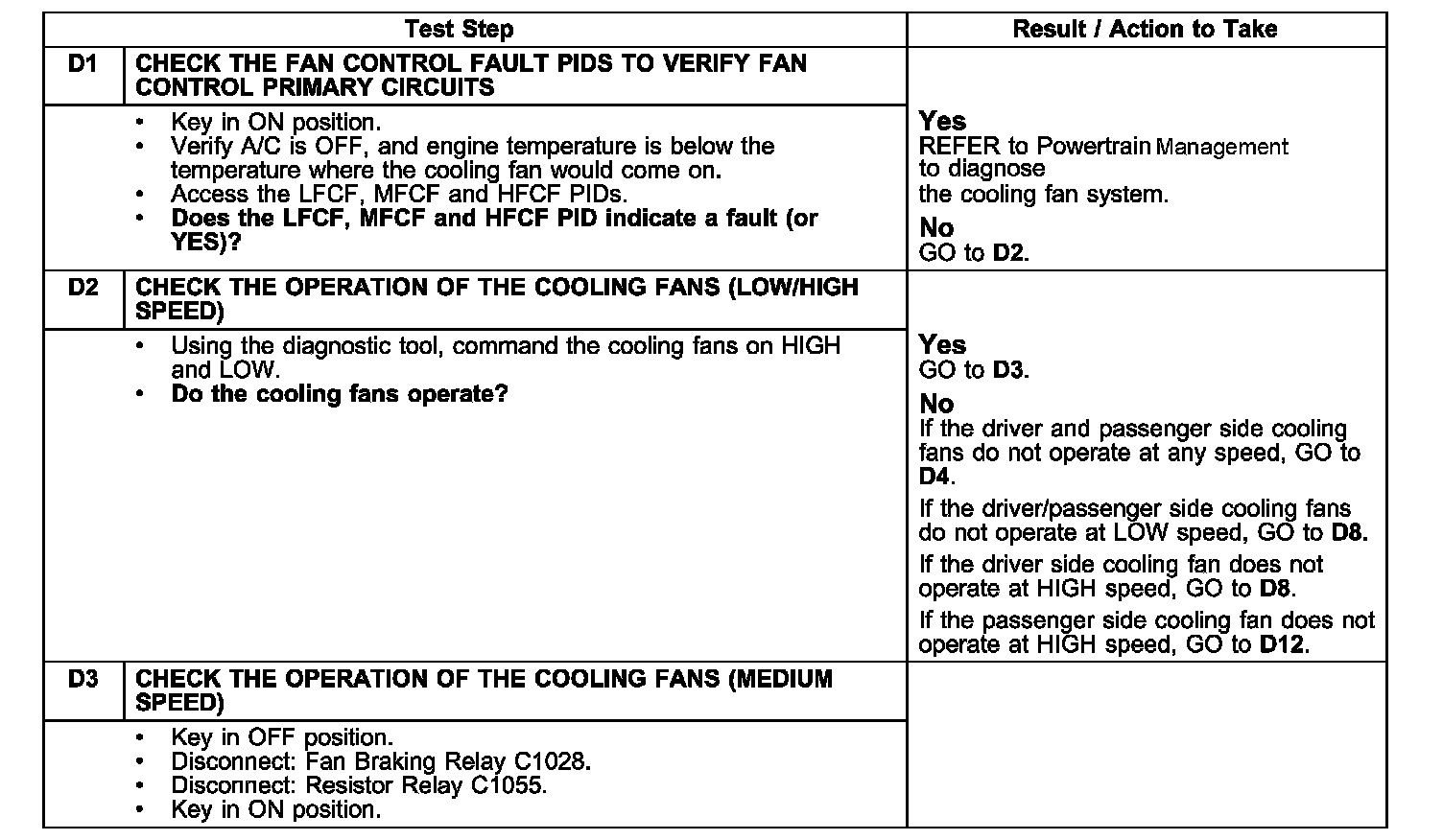

Test D1-D3:

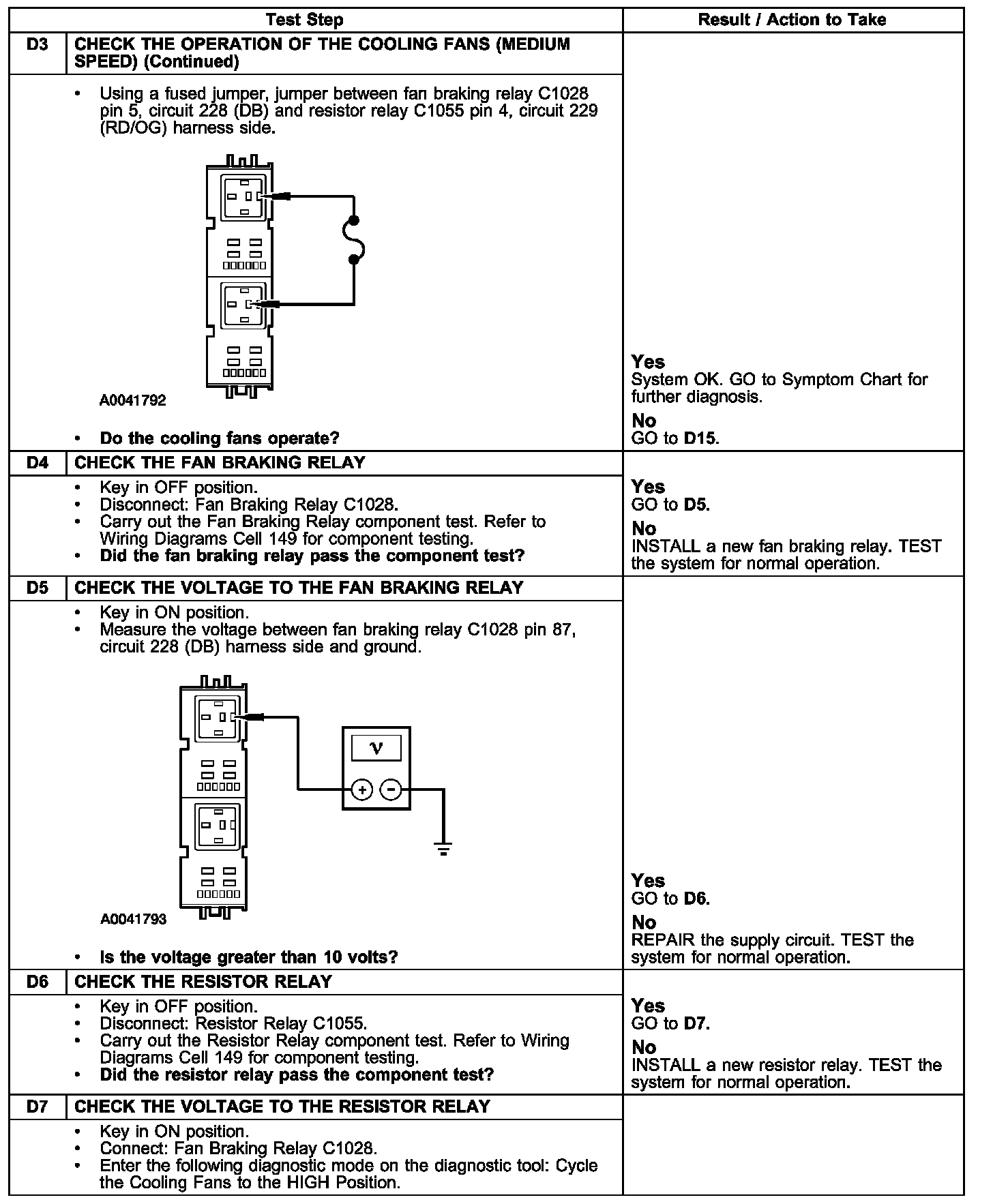

Test D3-D7:

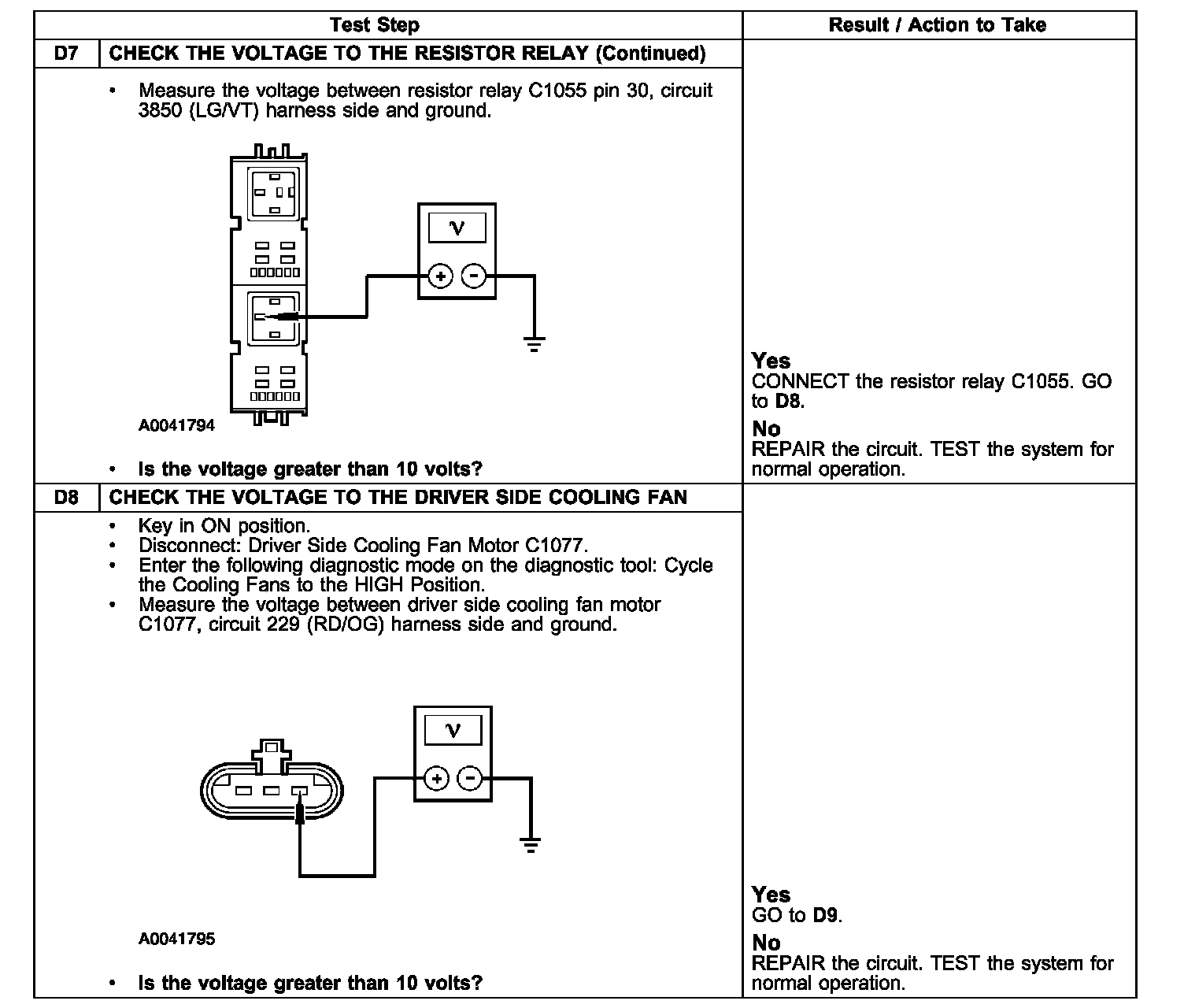

Test D7-D8:

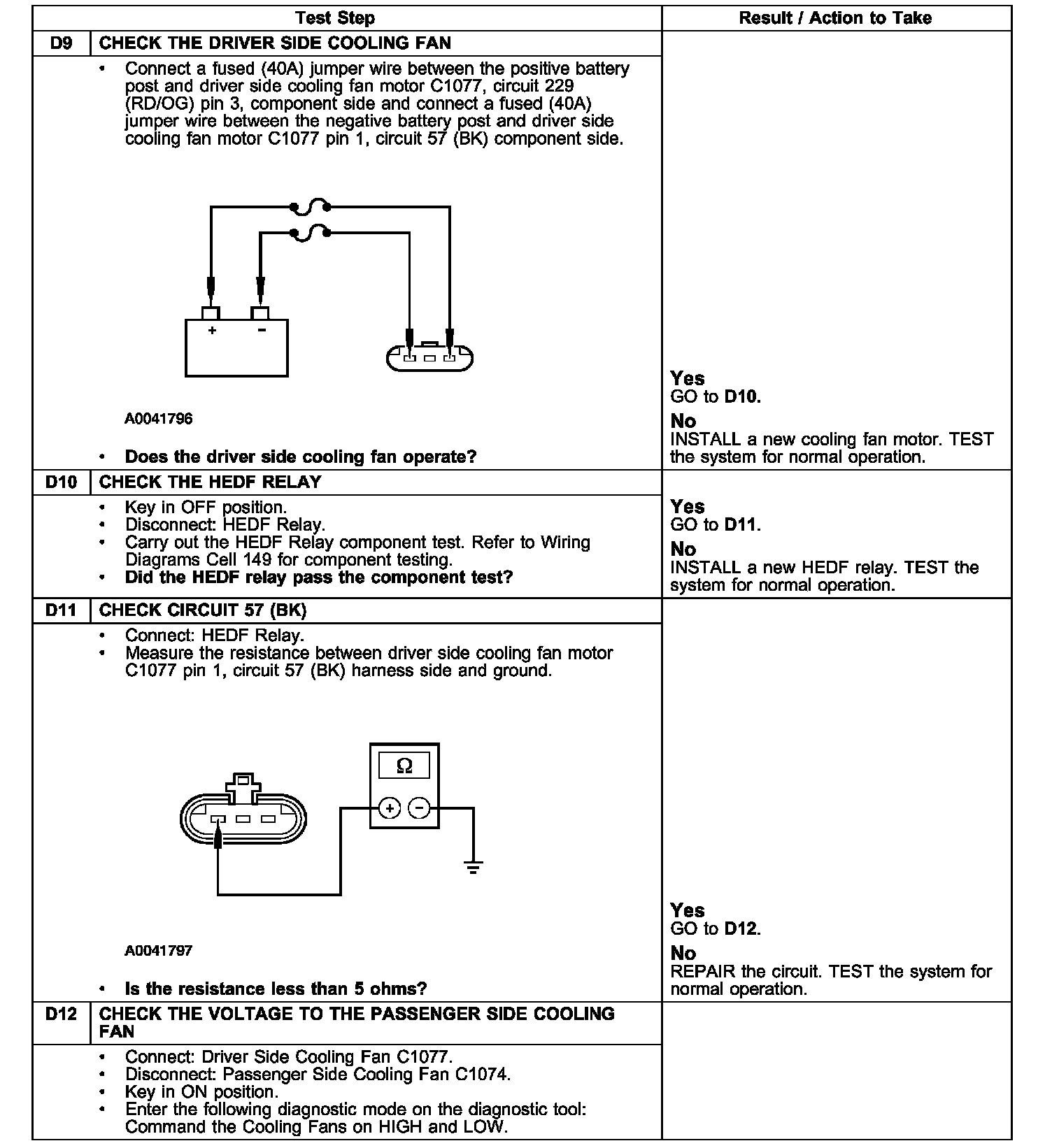

Test D9-D12:

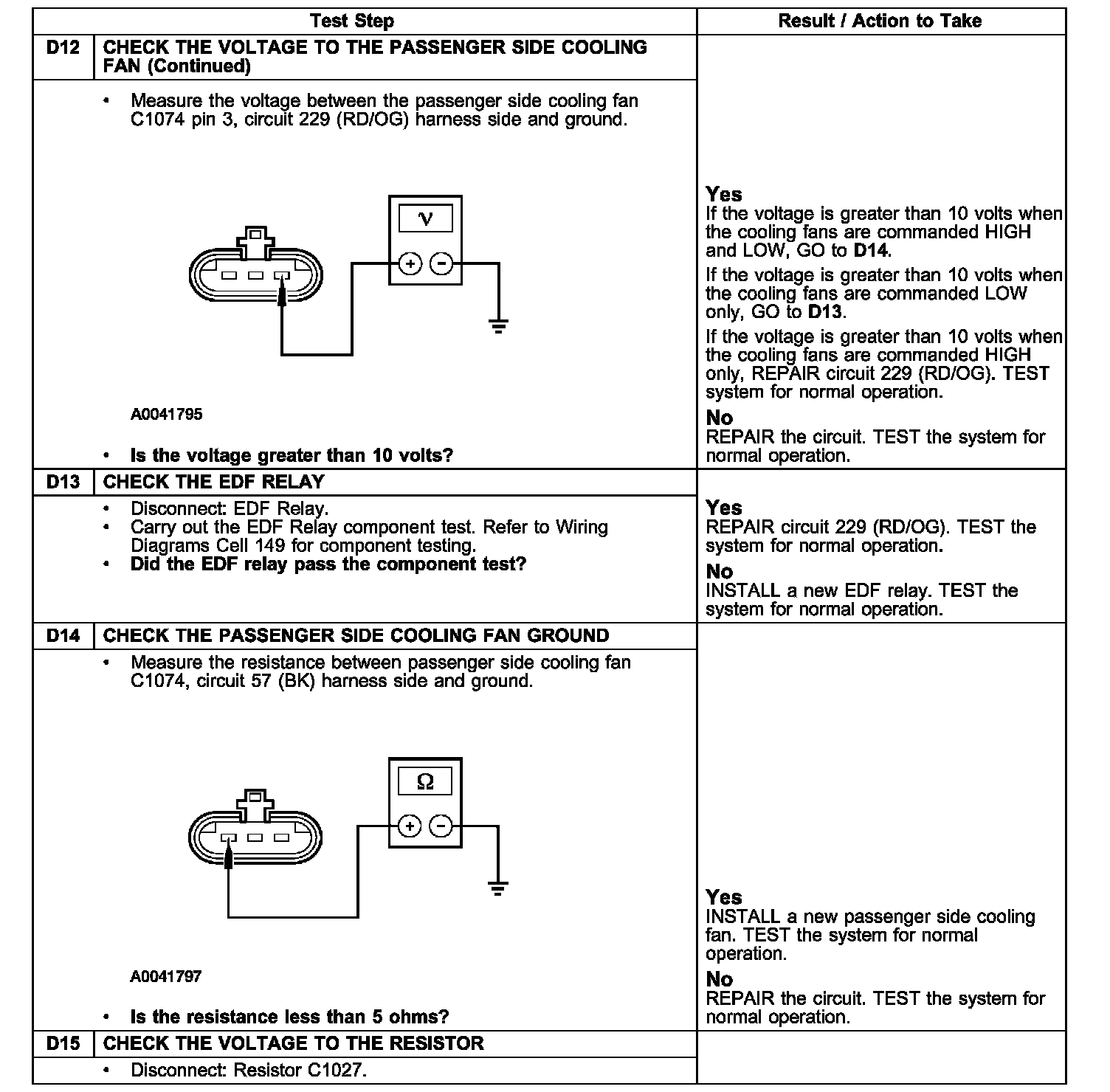

Test D12-D15:

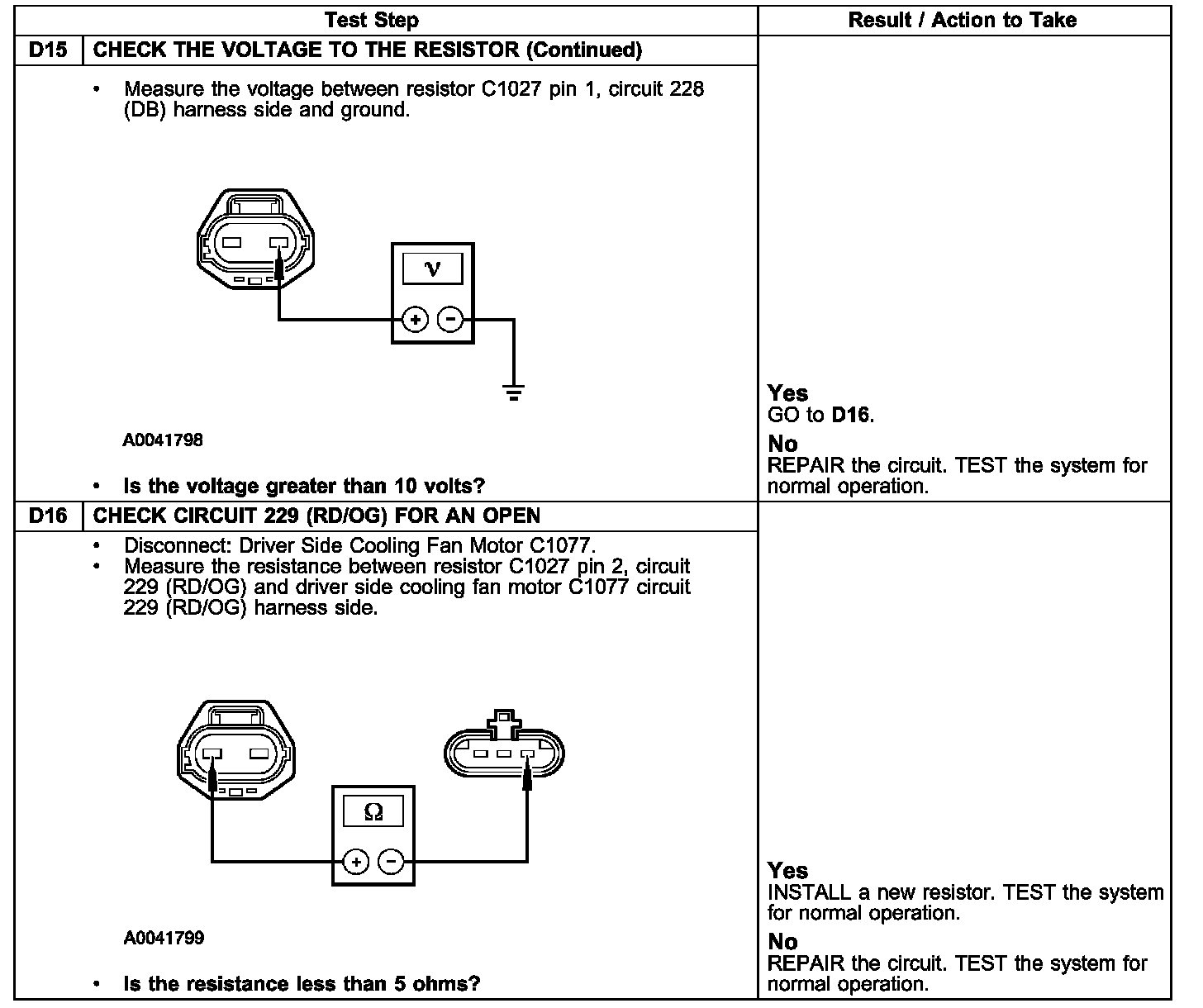

Test D15-D16:
