Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-34 (in Liftgate, Top, RH Side - Sedan)

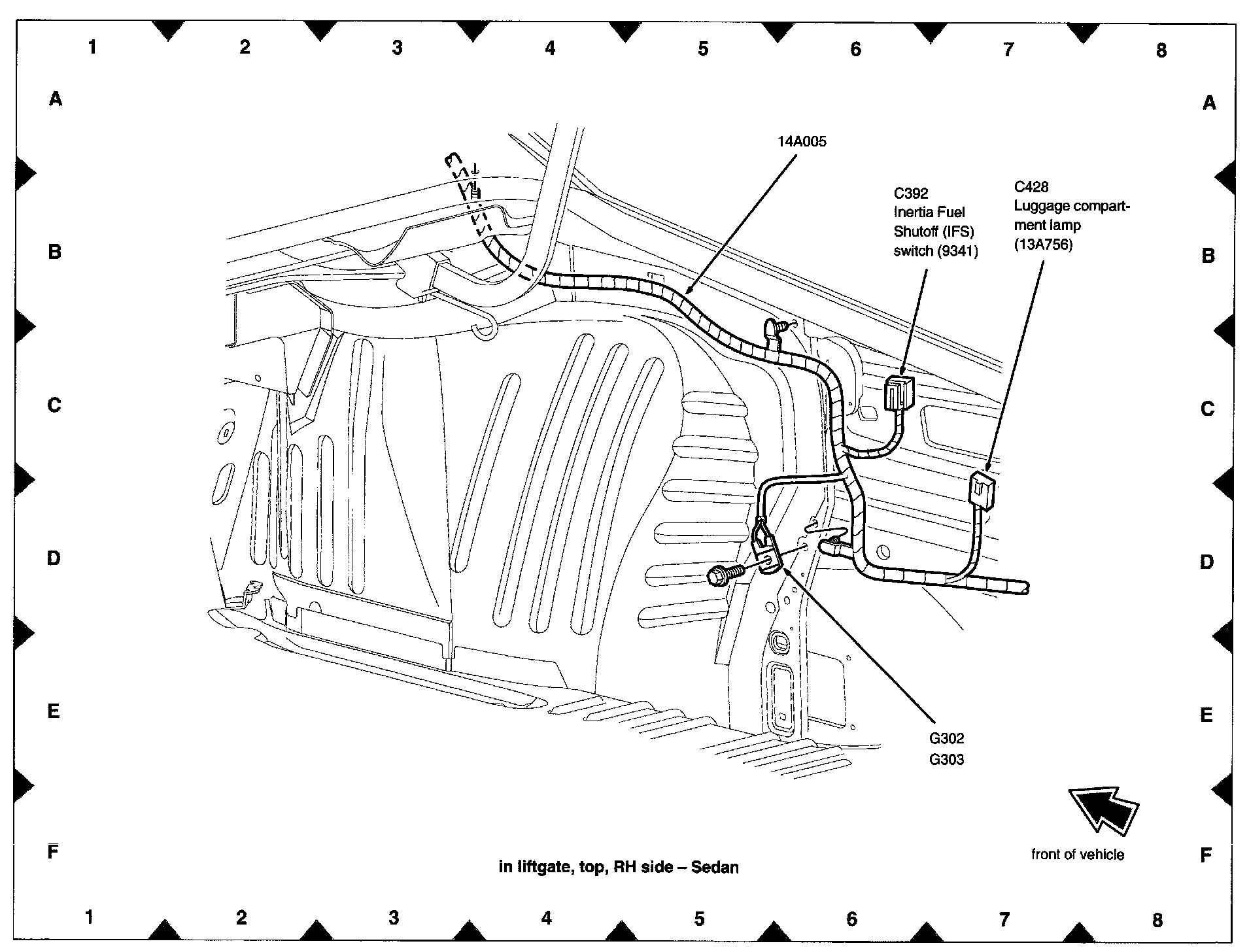

View 151-34 (in Liftgate, Top, RH Side - Sedan)

View 151-34 (in Liftgate, Top, RH Side - Sedan):
