Sunroof / Moonroof Panel: Service and Repair

ROOF OPENING PANEL GLASS

Removal and Installation







1. Open the roof opening panel glass halfway.

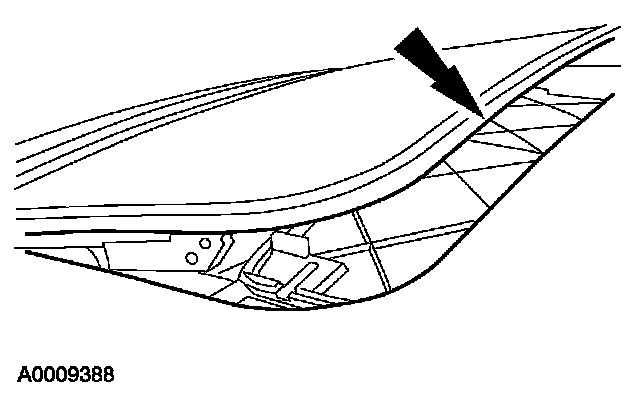

2. Unsnap the roof opening panel trough and position it aside.

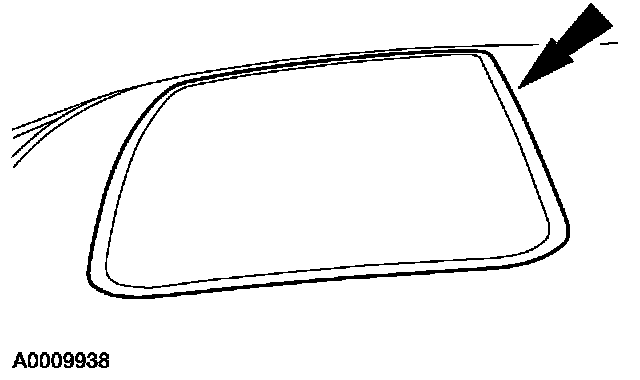

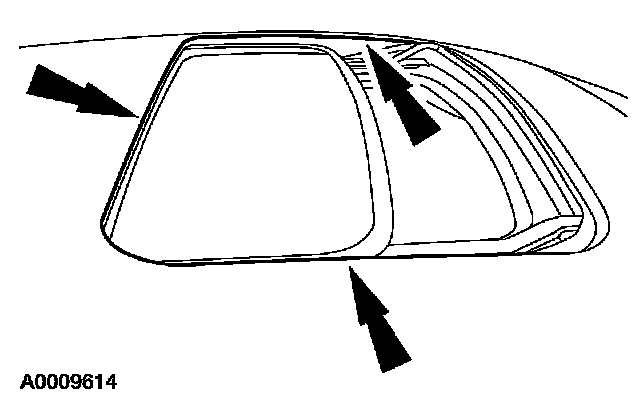

3. Protect the painted surfaces around the opening.







4. Position the roof opening panel glass into the vent position.

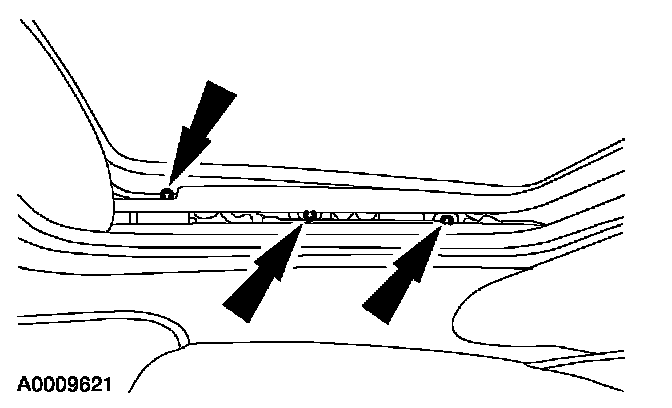

5. Remove the six roof opening panel glass screws.







6. Remove the roof opening panel glass.
7. To install, reverse the removal procedure.
8. Align the roof opening panel.
9. Initialize the roof opening panel motor.
