Test E: The Auto-Dimming Mirror Does Not Operate Correctly
Test E: The Auto-Dimming Mirror Does Not Operate Correctly
PINPOINT TEST E: THE AUTO-DIMMING MIRROR DOES NOT OPERATE CORRECTLY

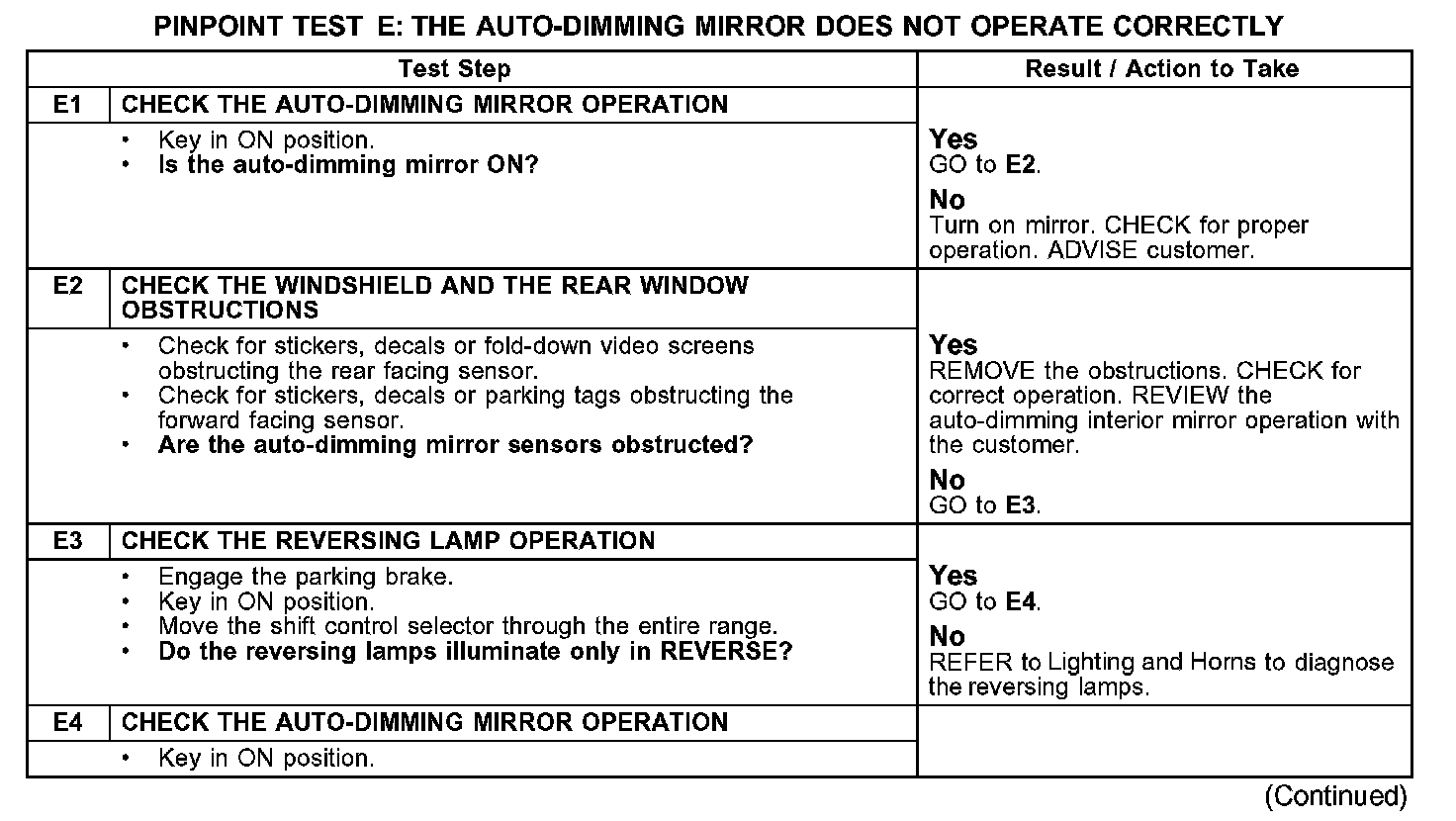

E1-E4:

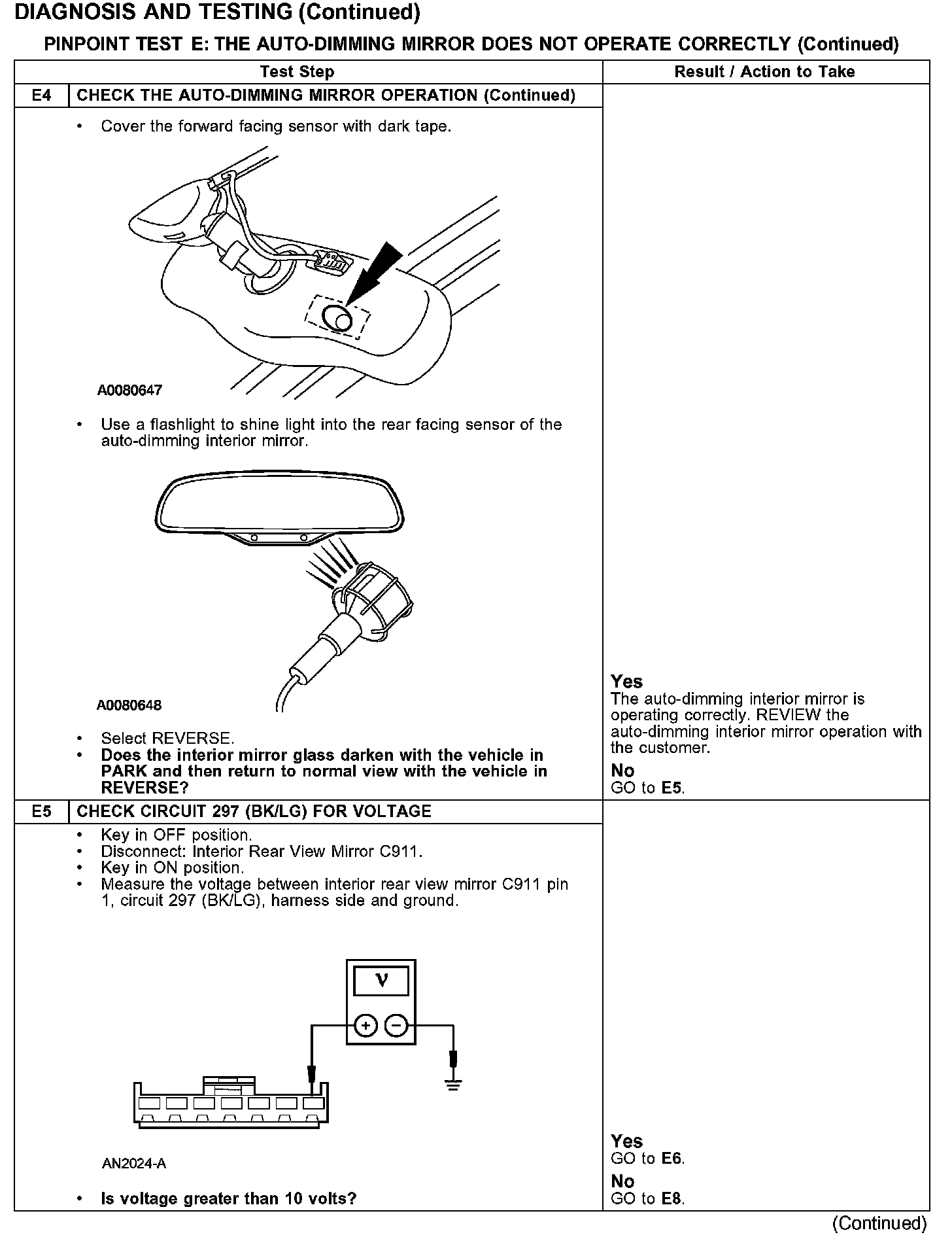

E4-E5:

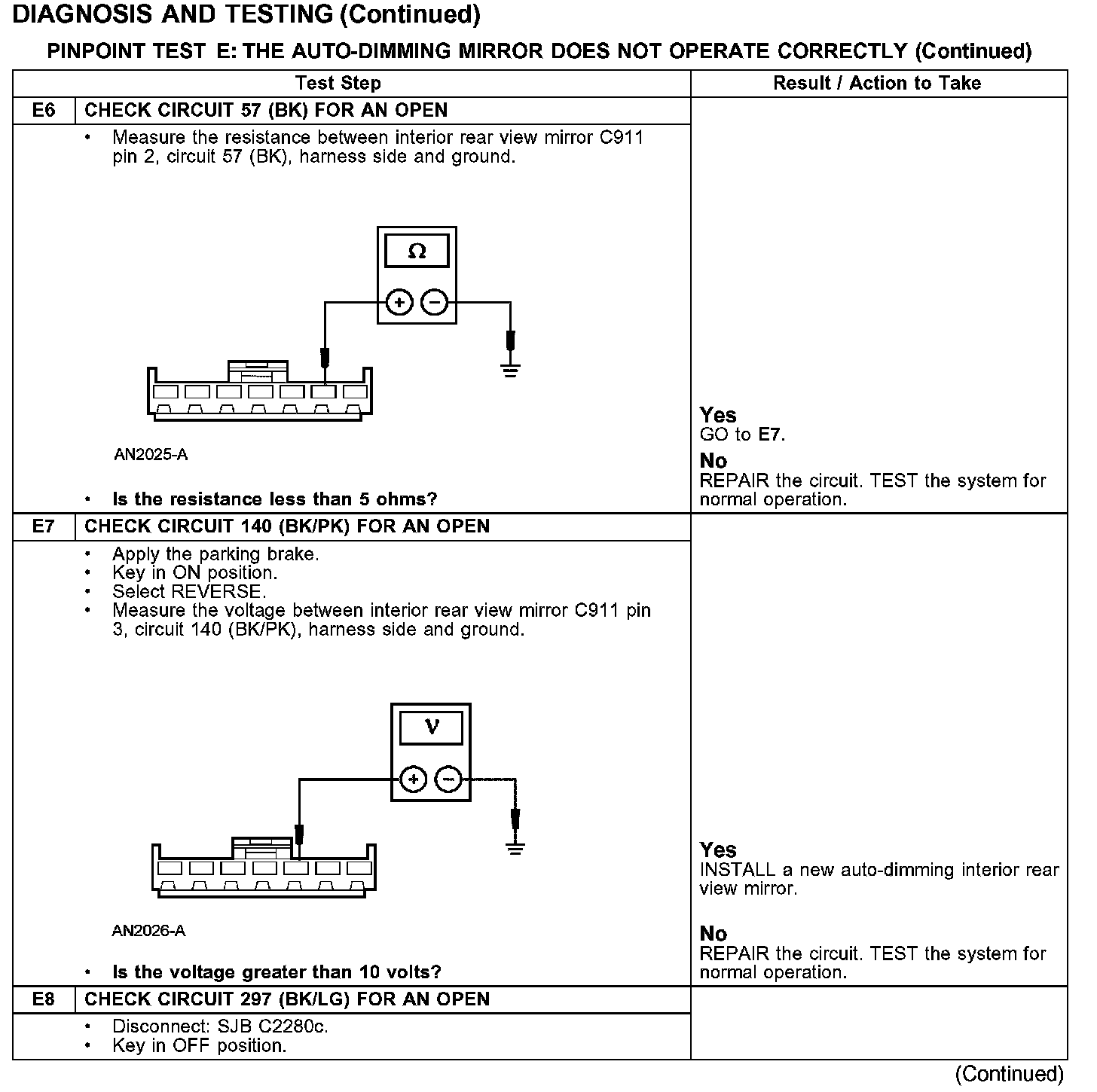

E6-E8:

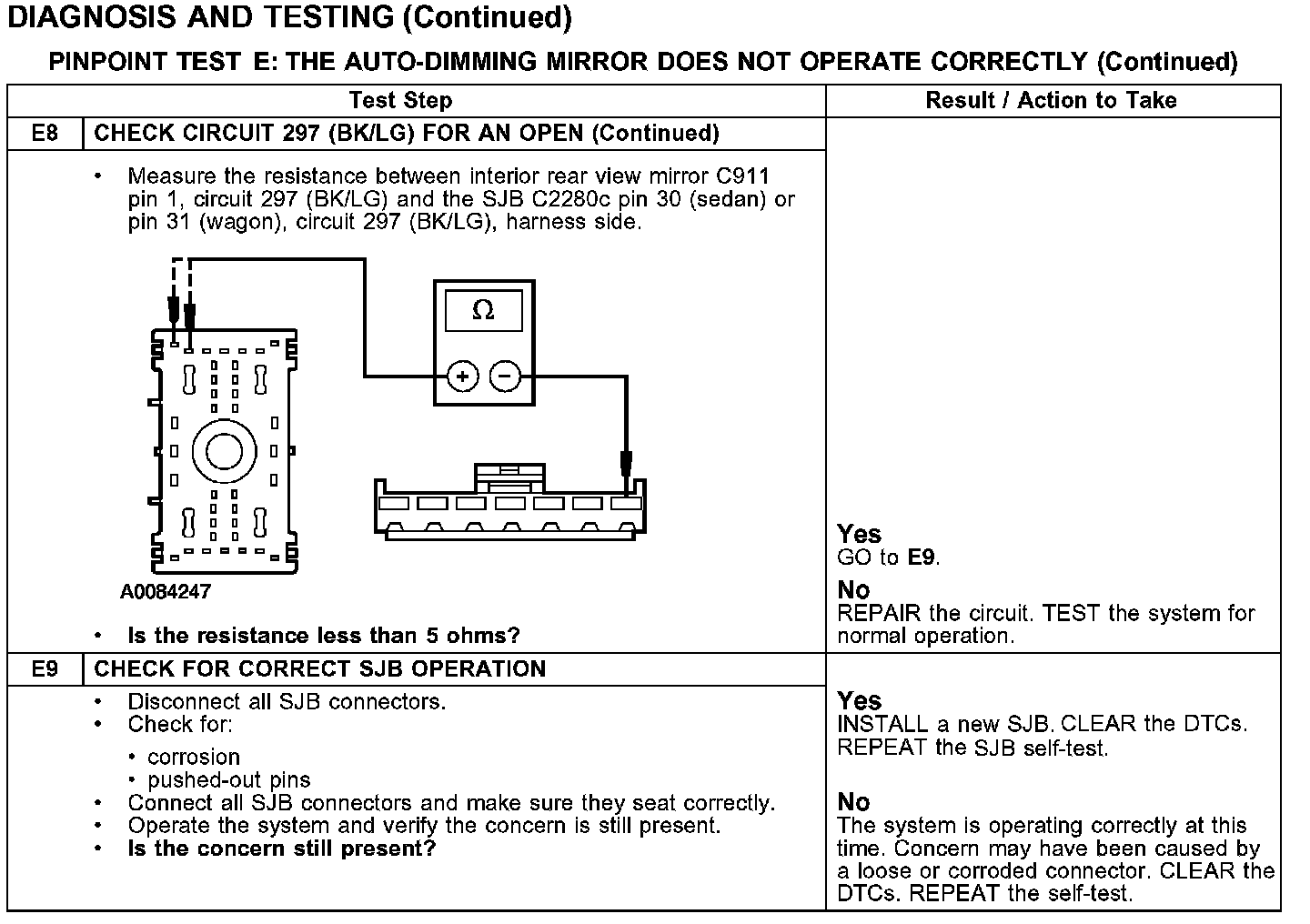

E8-E9:
