Exterior Mirror Cover

EXTERIOR MIRROR COVER

Removal and Installation
1. Remove the exterior mirror glass.

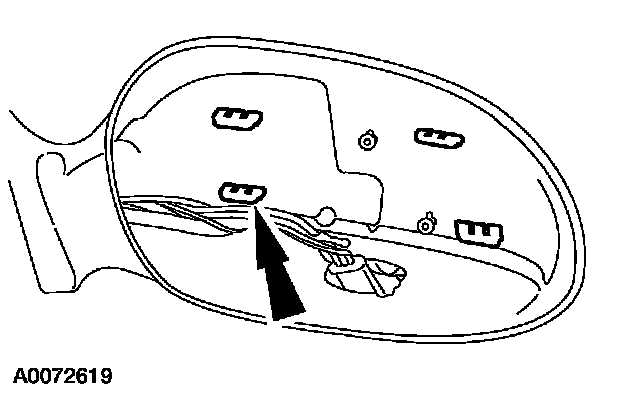

2. To access the 4th tab, the wire routing tab has to be snapped off. Depress the four tabs and remove the exterior mirror cover.
3. To install, reverse the removal procedure.
