B-Pillar Trim Panel

B-PILLAR TRIM PANEL

Torx Bit, Safety Belt Bolt:

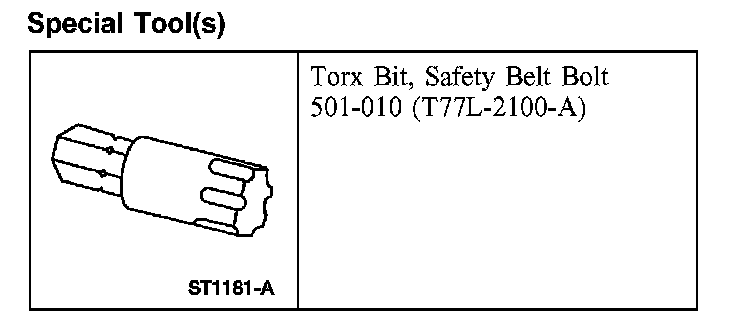

Special Tool(s)

Removal and Installation

NOTE: If the side air bag has been deployed, inspect the front and back side of the upper and lower B-pillar trim panel and foam for damage and install a new panel if necessary.







1. NOTE: Inspect the D-ring cover for damage. If the cover is damaged or will not remain closed, install a new cover.

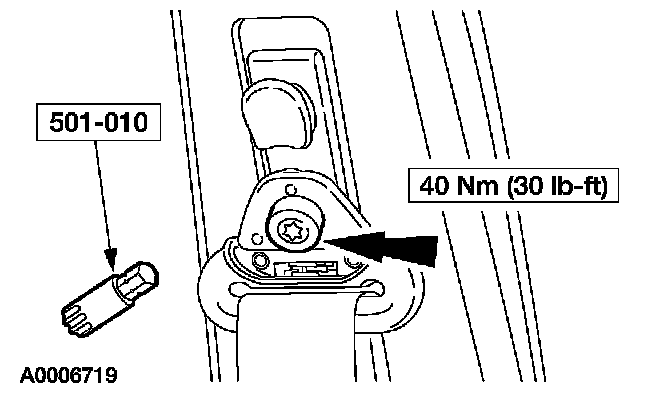

Using the special tool, remove the safety belt D-ring cover and the D-ring bolt.

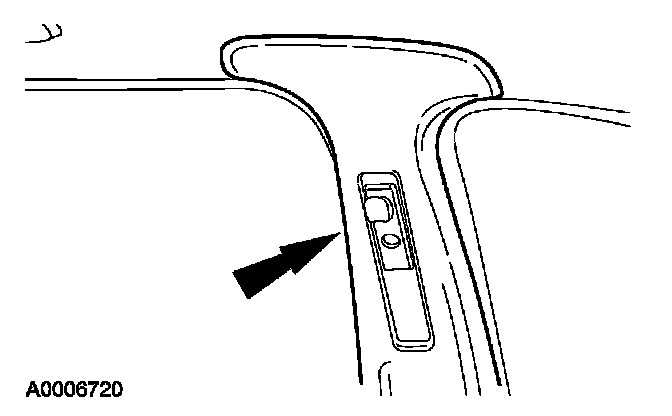

2. Remove the upper B-pillar trim panel.

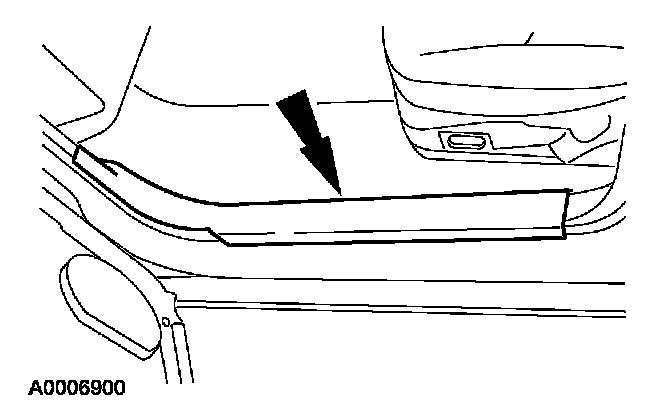

3. Remove the front scuff plate.







4. Remove the safety belt anchor.

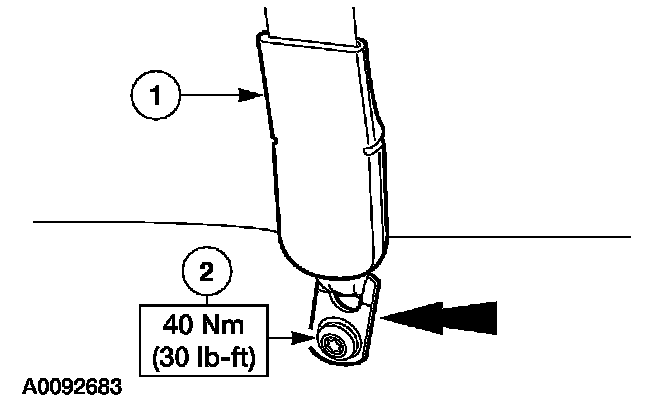

1 Raise the safety belt anchor boot.
2 Using the special tool, remove the bolt.

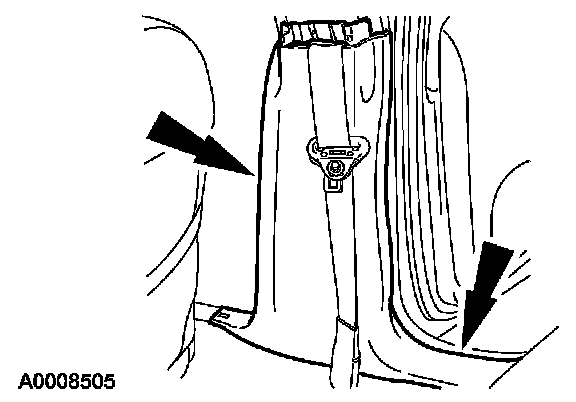

5. Pull up and out to release the retaining clips. Route the safety belt out and remove the lower B-pillar trim panel.
6. To install, reverse the removal procedure.
