Rear Shelf: Service and Repair

PARCEL SHELF

Removal and Installation







1. Disengage the LED module from the parcel shelf.

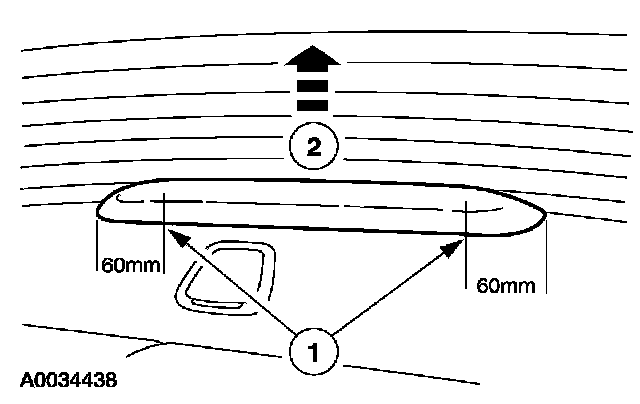

1 Insert two thin bladed 20 mm (0.8 in) wide tools (approximately 60 mm from the outside edges of the LED module) and push rearward to disengage the retaining clips.
2 Lift the front of the LED module from the parcel shelf.







2. Remove the LED module.

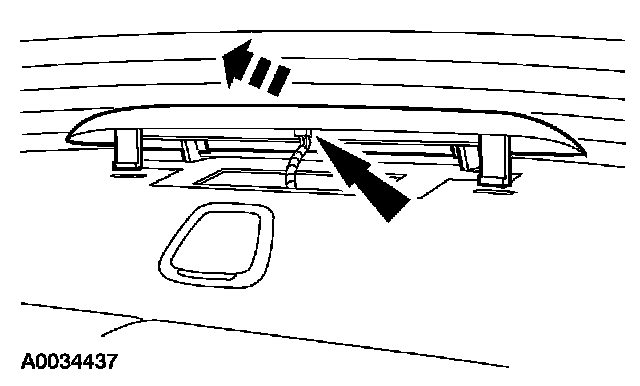

- Disconnect the connector and pull the LED module forward.

3. Remove the rear seat backrest and the rear seat cushion.

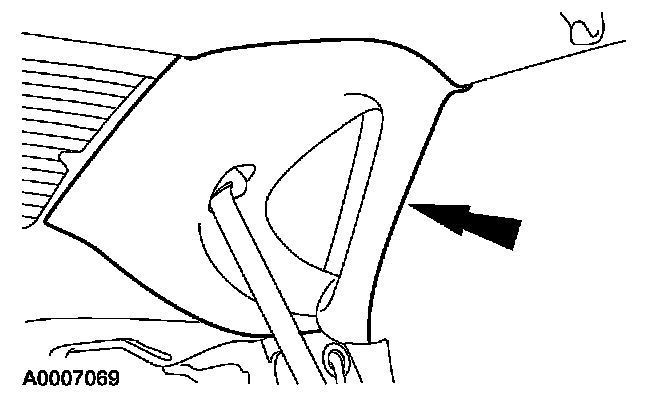

4. Remove the LH and RH roof trim panels.







5. Remove the pin-type retainers and the parcel shelf.
6. To install, reverse the removal procedure.
