Instrument Panel Center Finish Panel

INSTRUMENT PANEL CENTER FINISH PANEL

REMOVAL
1. Disconnect the battery ground cable.
2. Apply the parking brake.
3. If equipped with floor selector lever, position the selector lever in 1.
4. Remove the integrated control panel (ICP).







5. Remove the instrument panel lower steering column cover.
1 Remove the bolts.
2 Remove the instrument panel lower steering column cover.

6. Remove the ashtray.







7. NOTE: When installing the instrument panel center finish panel, be sure the alignment tabs are positioned correctly.

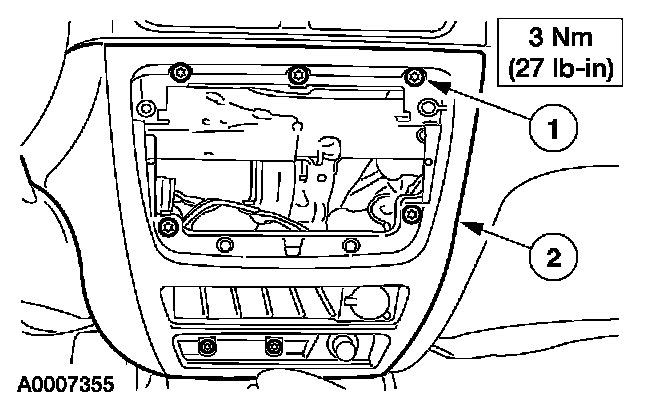

Remove the instrument panel center finish panel.
1 Remove the screws.
2 Remove the instrument panel center finish panel.

- Disconnect the electrical connector by reaching through the ICP opening.

INSTALLATION
1. To install, reverse the removal procedure.
