Test D: The CD Changer Is Inoperative/Does Not Operate Correctly
Test D: The CD Changer Is Inoperative/Does Not Operate Correctly
PINPOINT TEST D: THE
CD CHANGER
IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

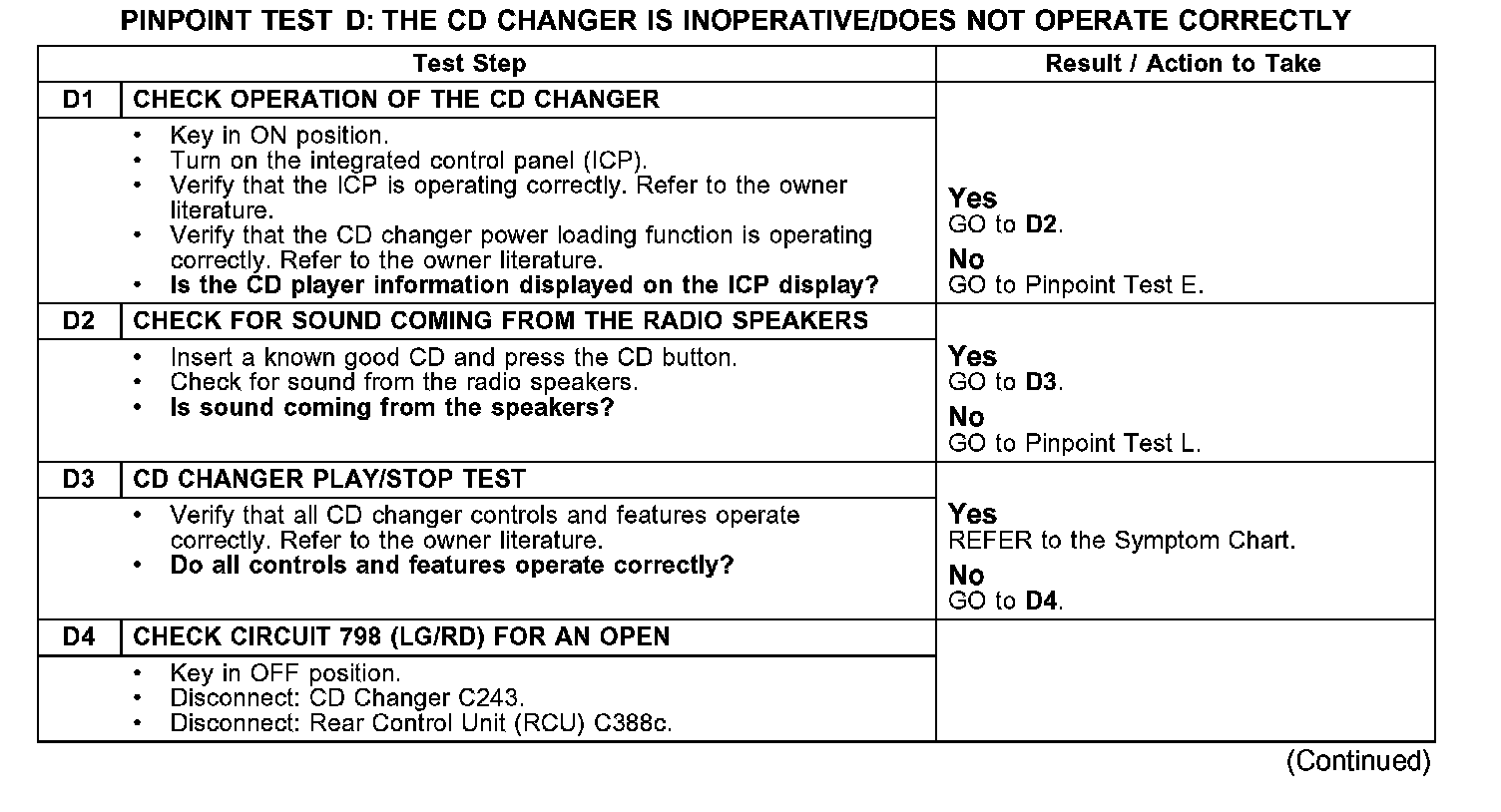

Test D1-D4:

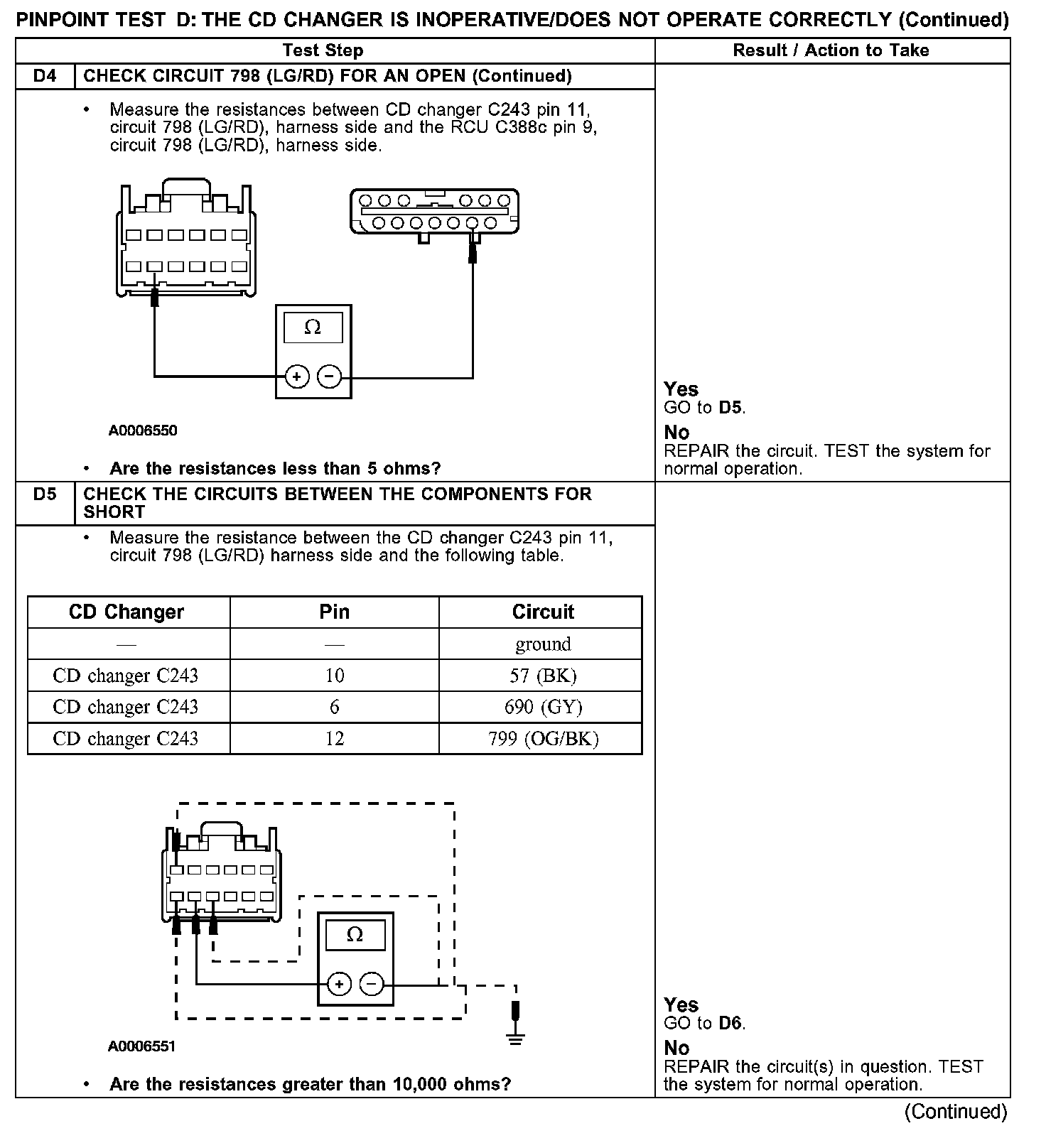

Test D4-D5:

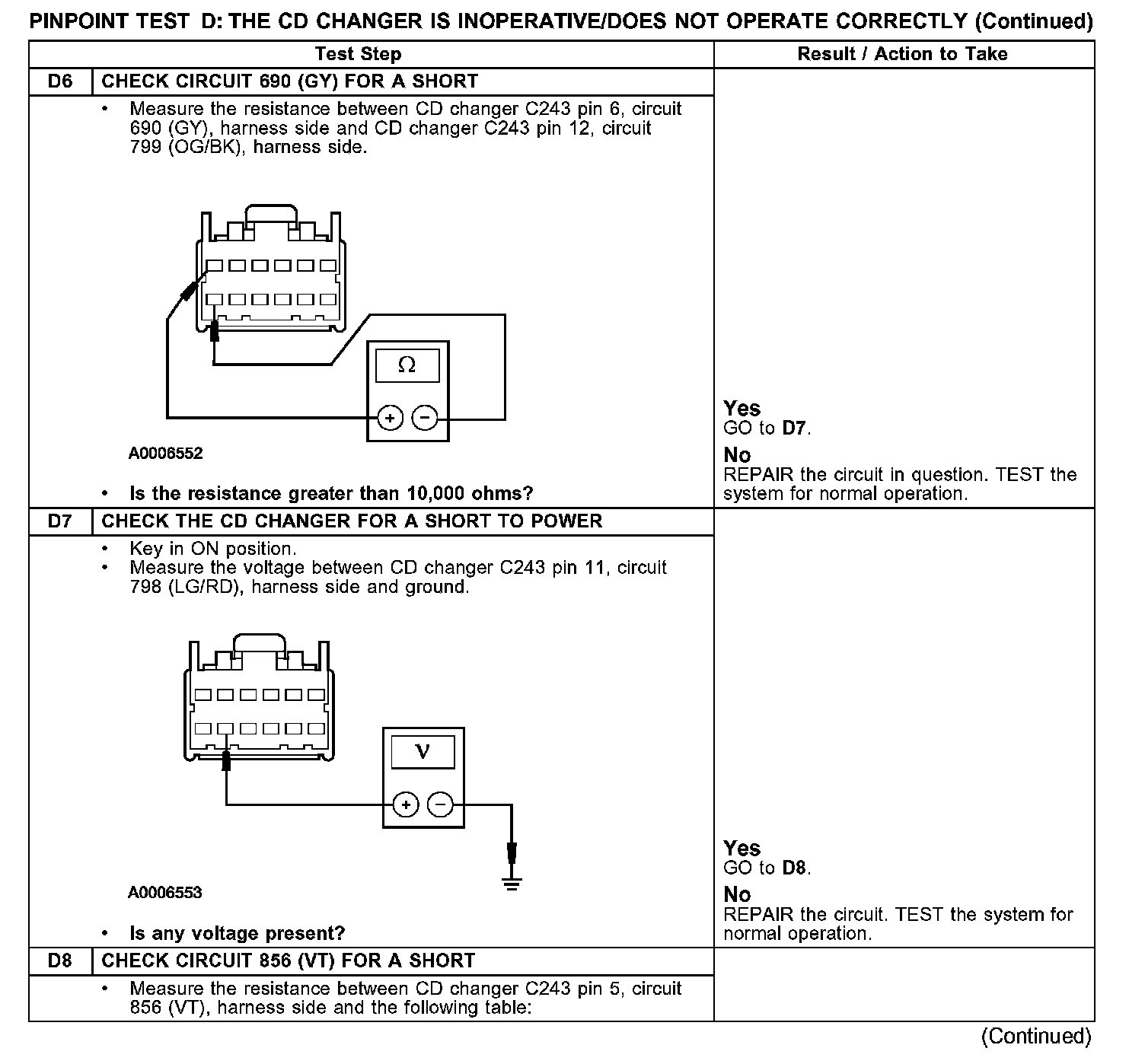

Test D6-D8:
Test D8-D10:

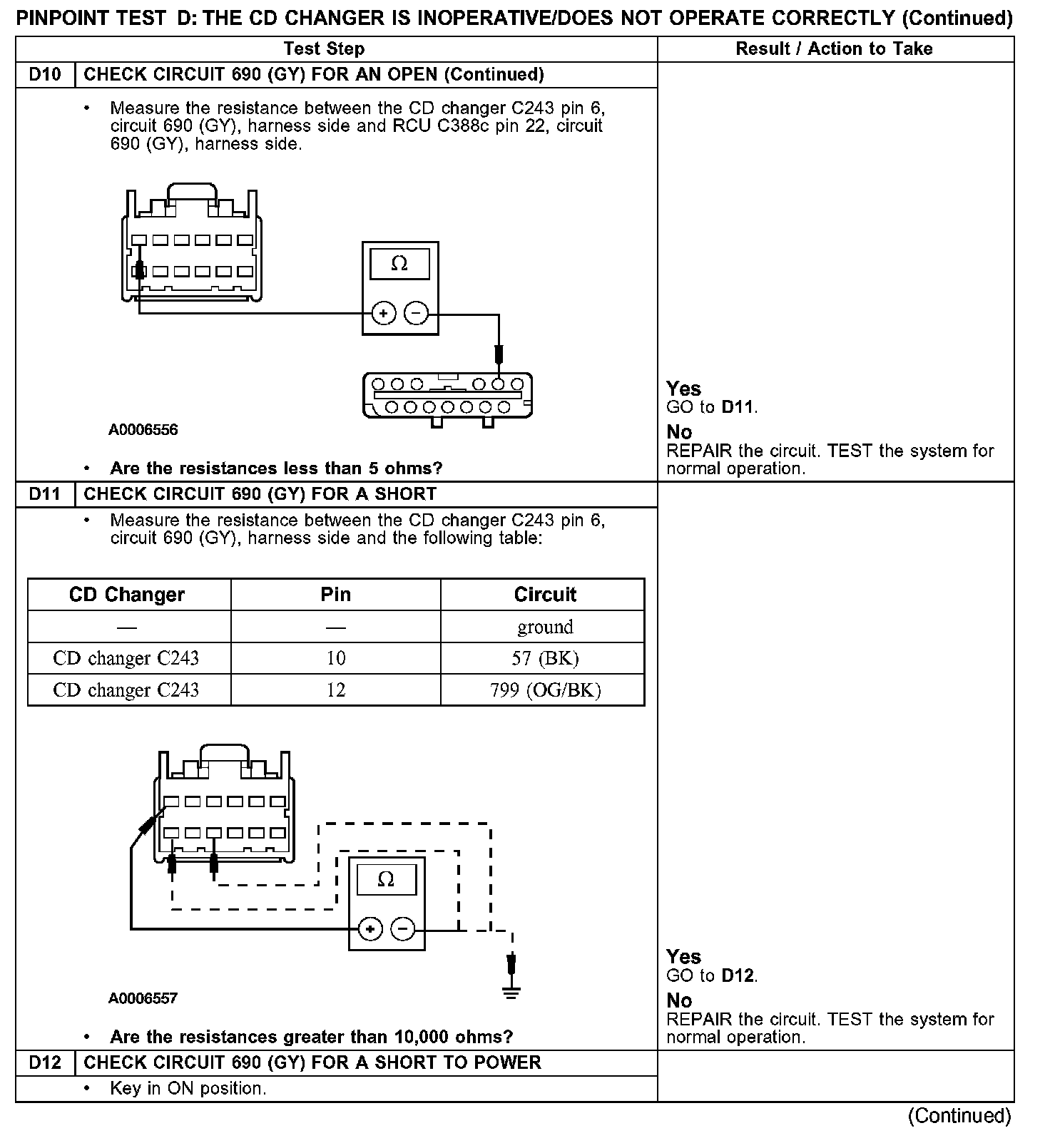

Test D10-D12:

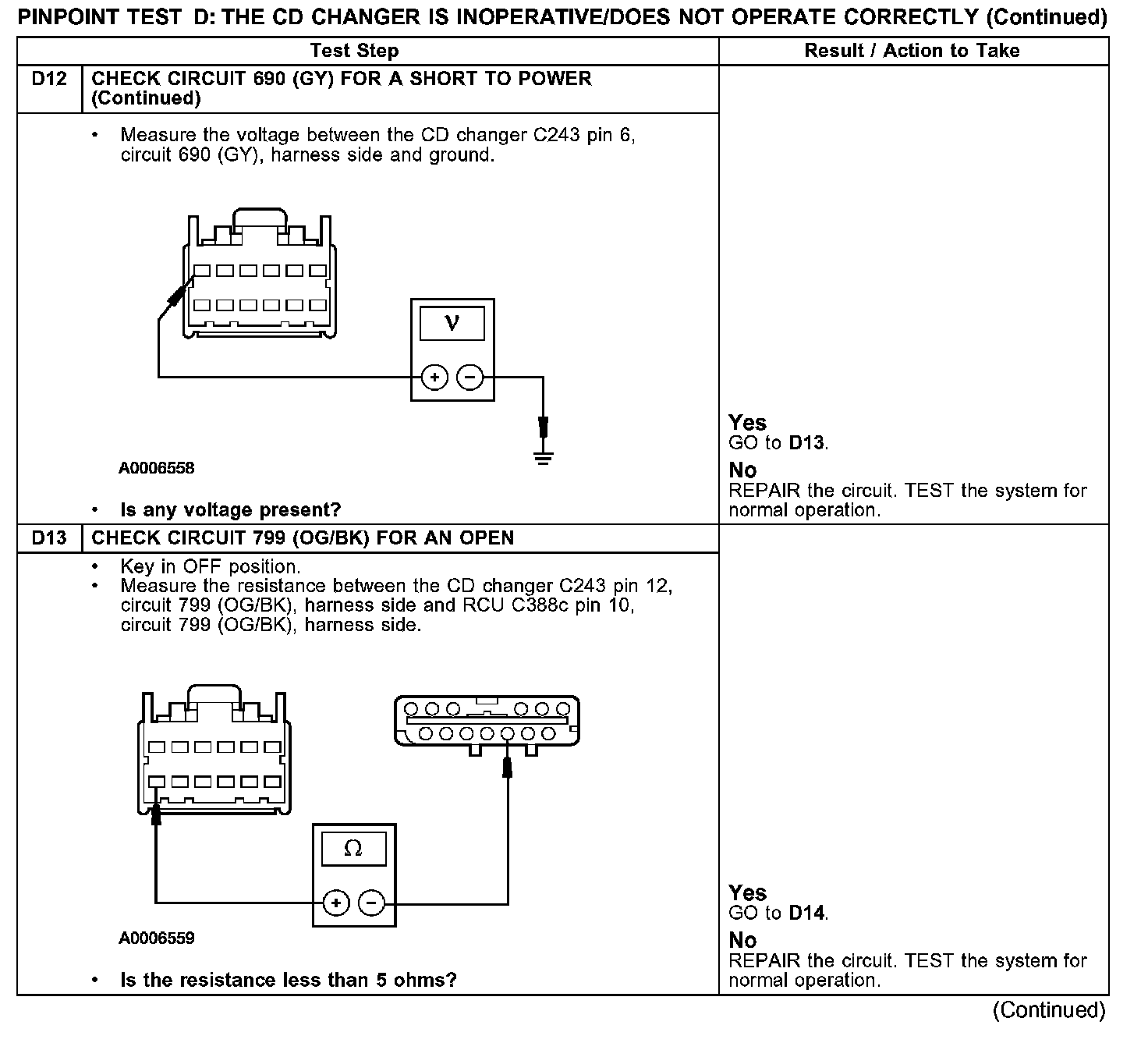

Test D12-D13:

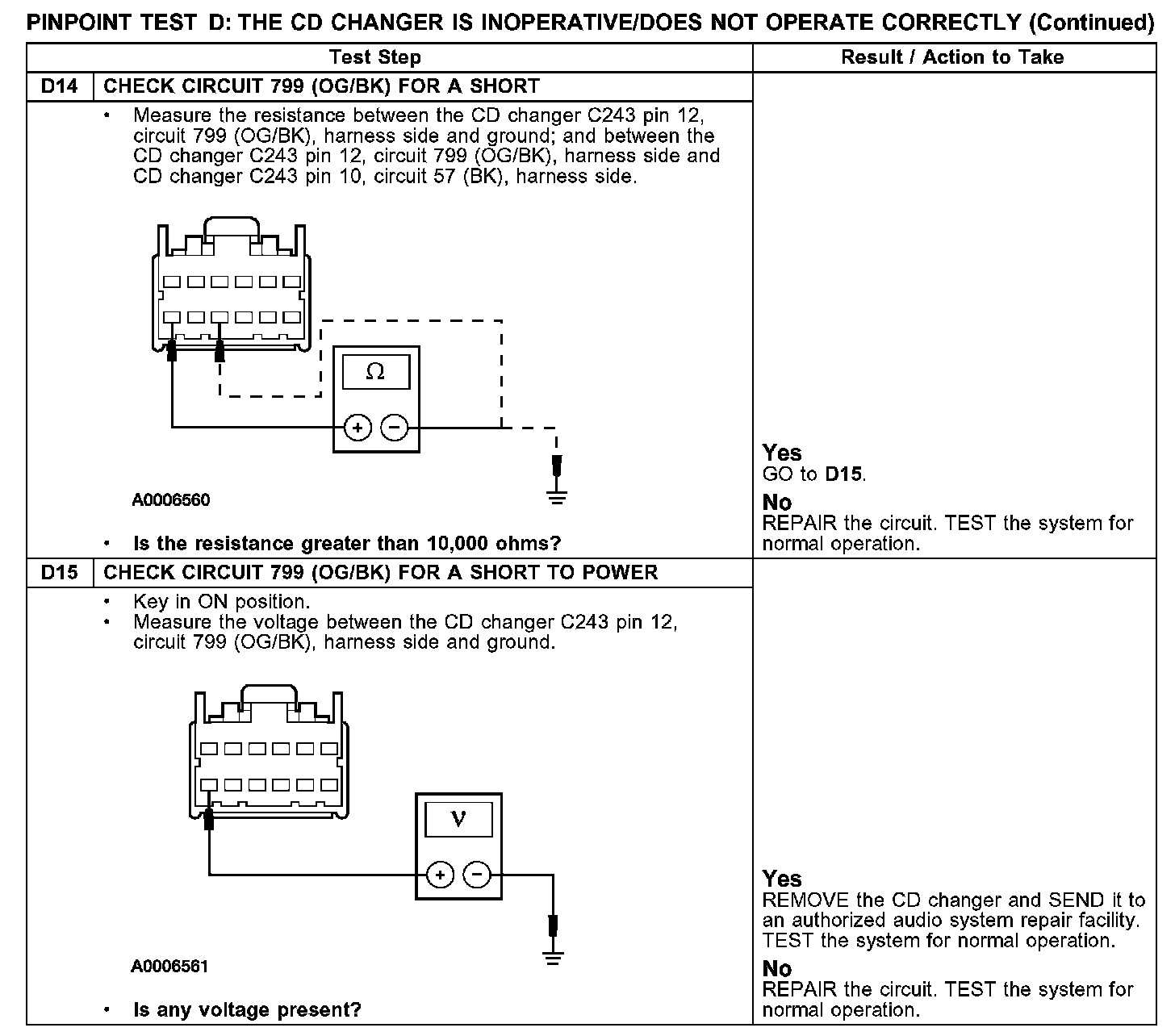

Test D14-D15:
