Test A: The Audio Unit Is Inoperative

PINPOINT TEST A: THE AUDIO UNIT IS INOPERATIVE

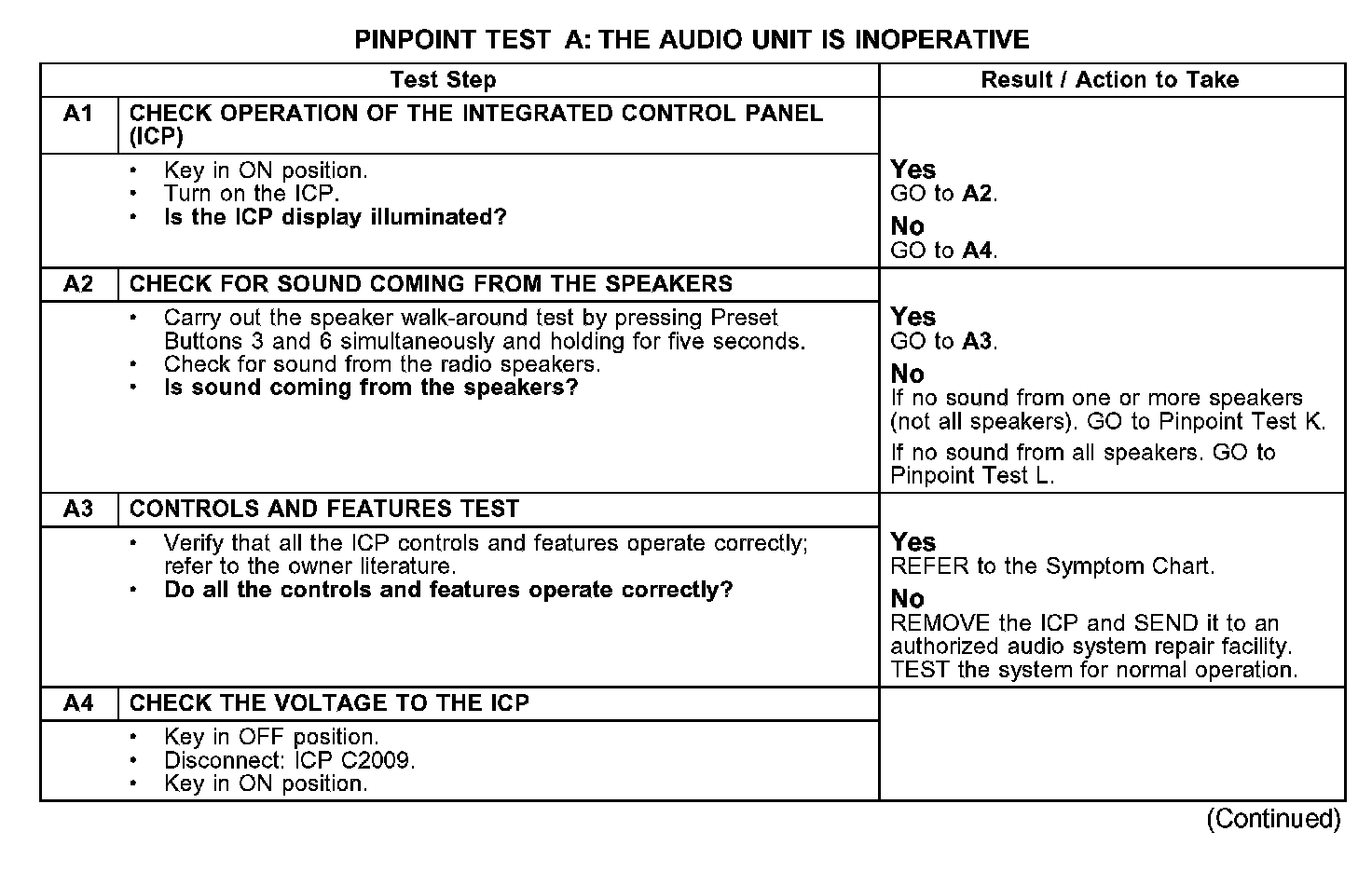

Test A1-A4:

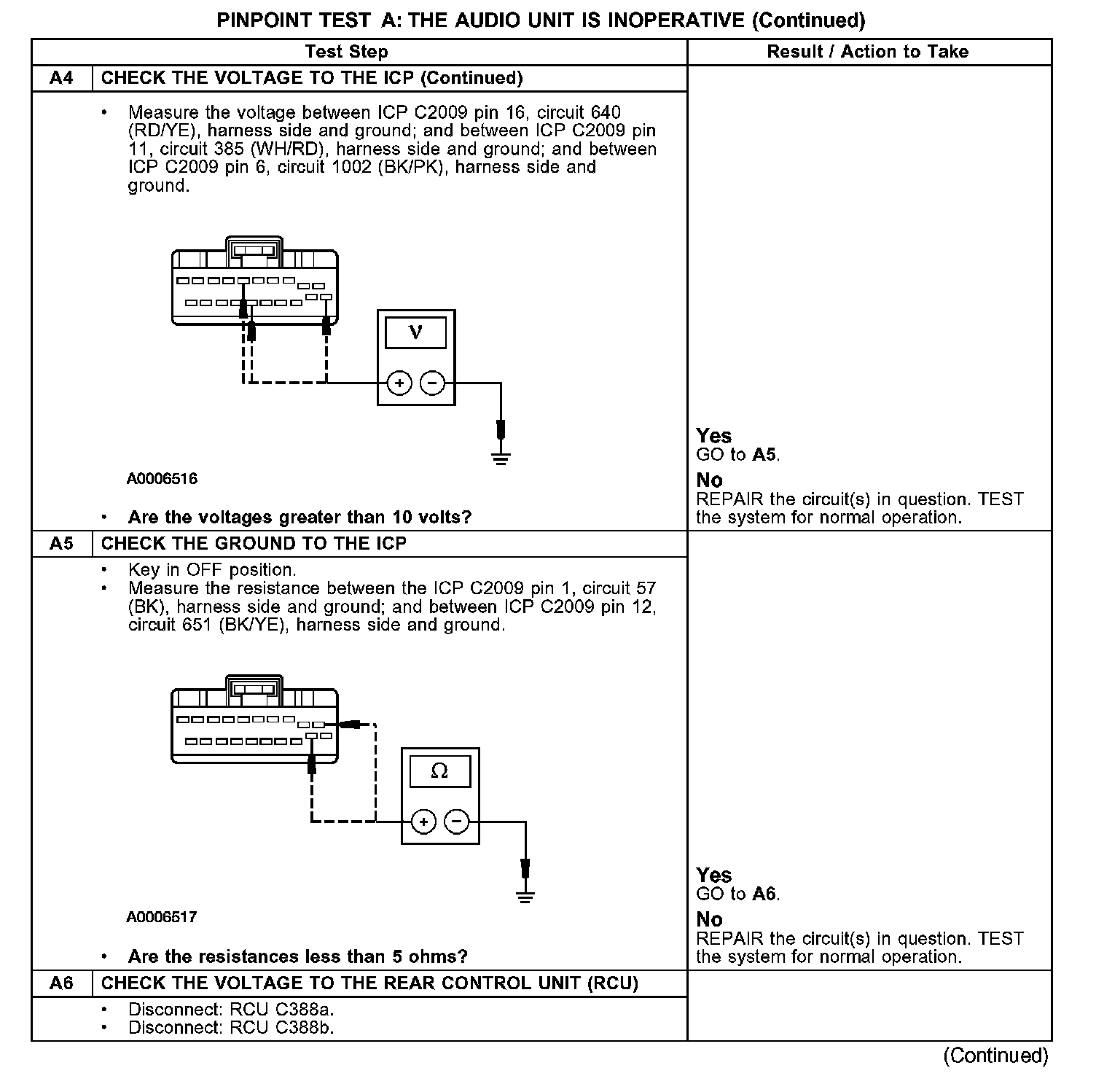

Test A4-A6:

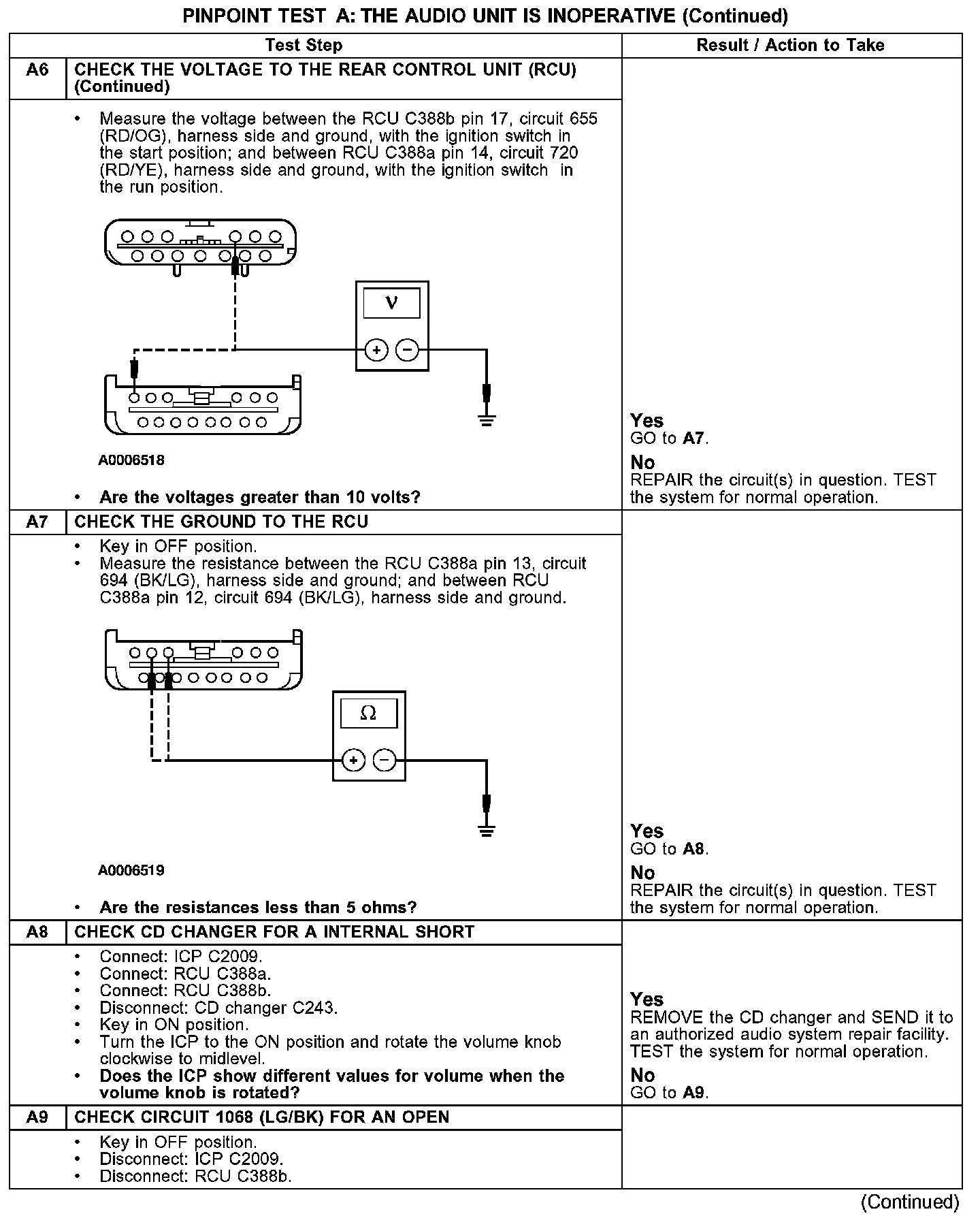

Test A6-A9:

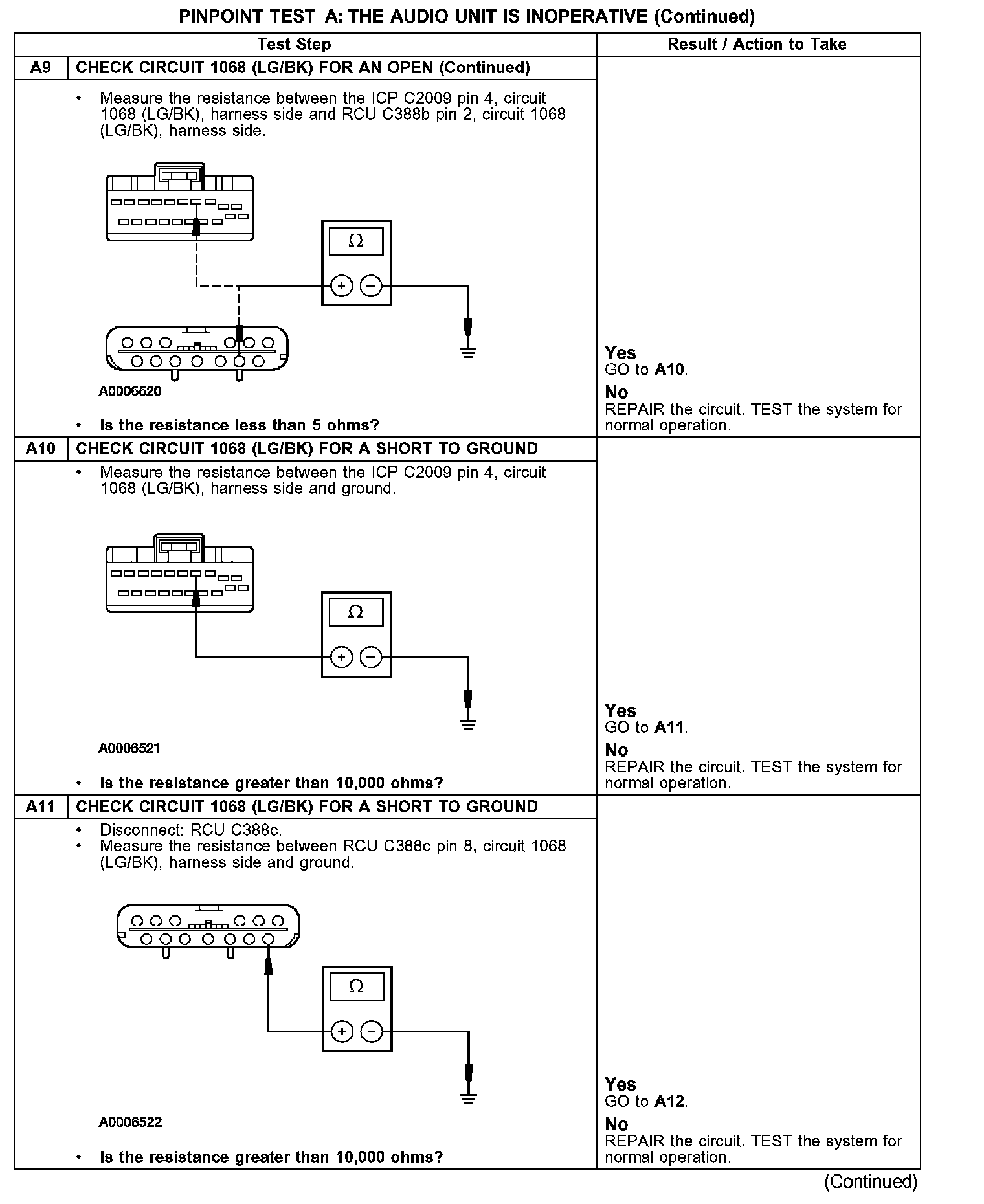

Test A9-A11:

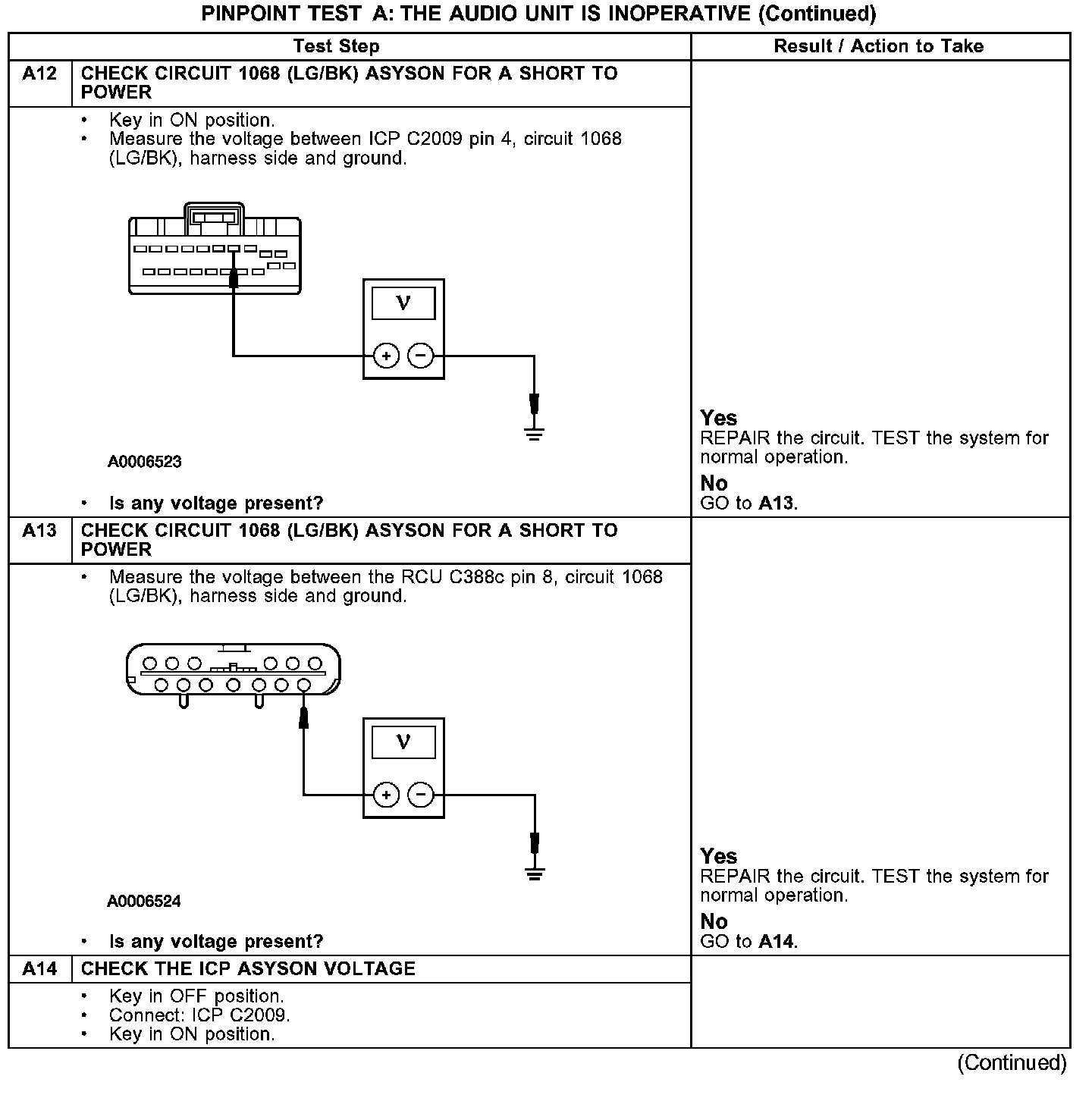

Test A12-A14:

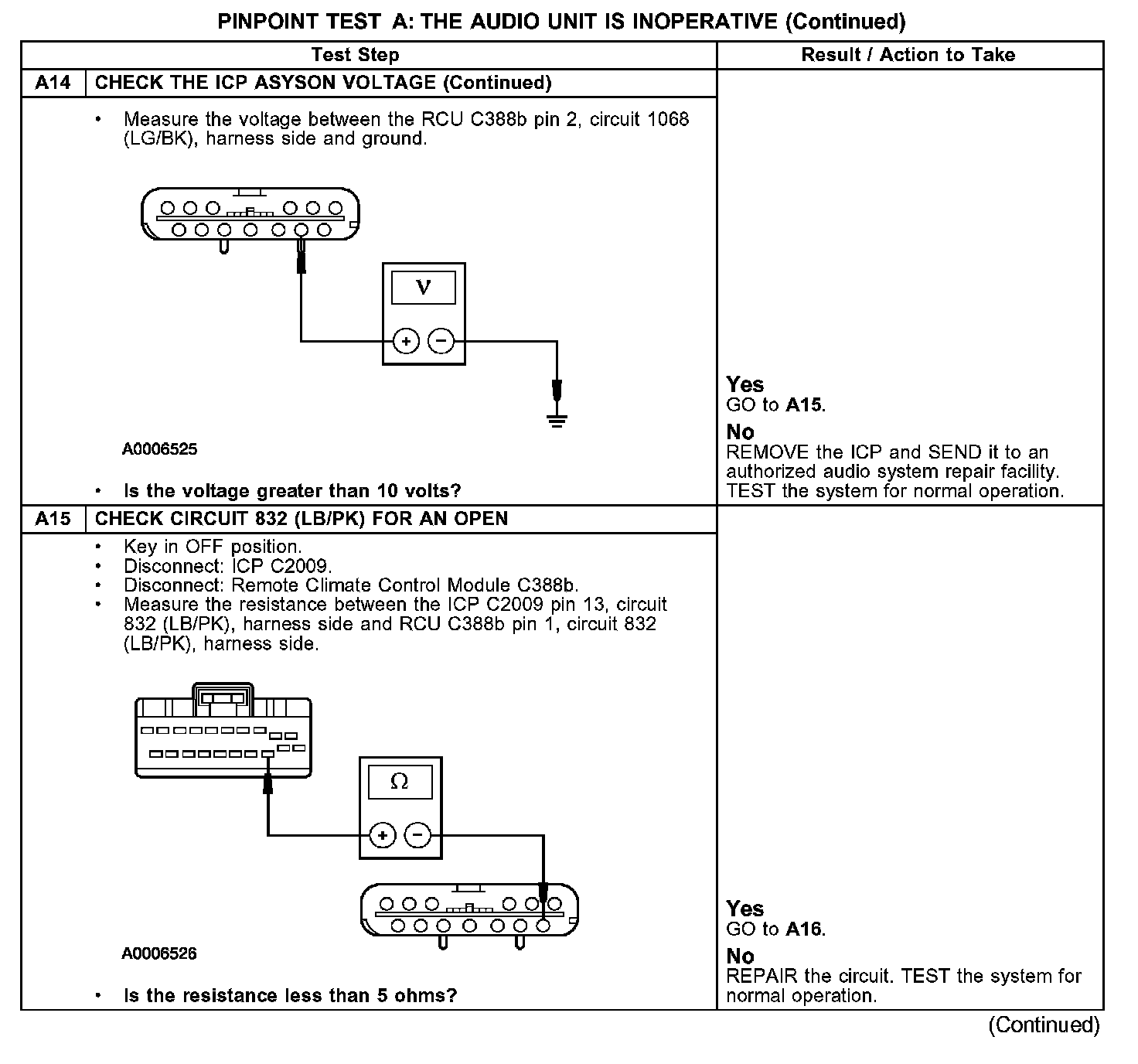

Test A14-A15:

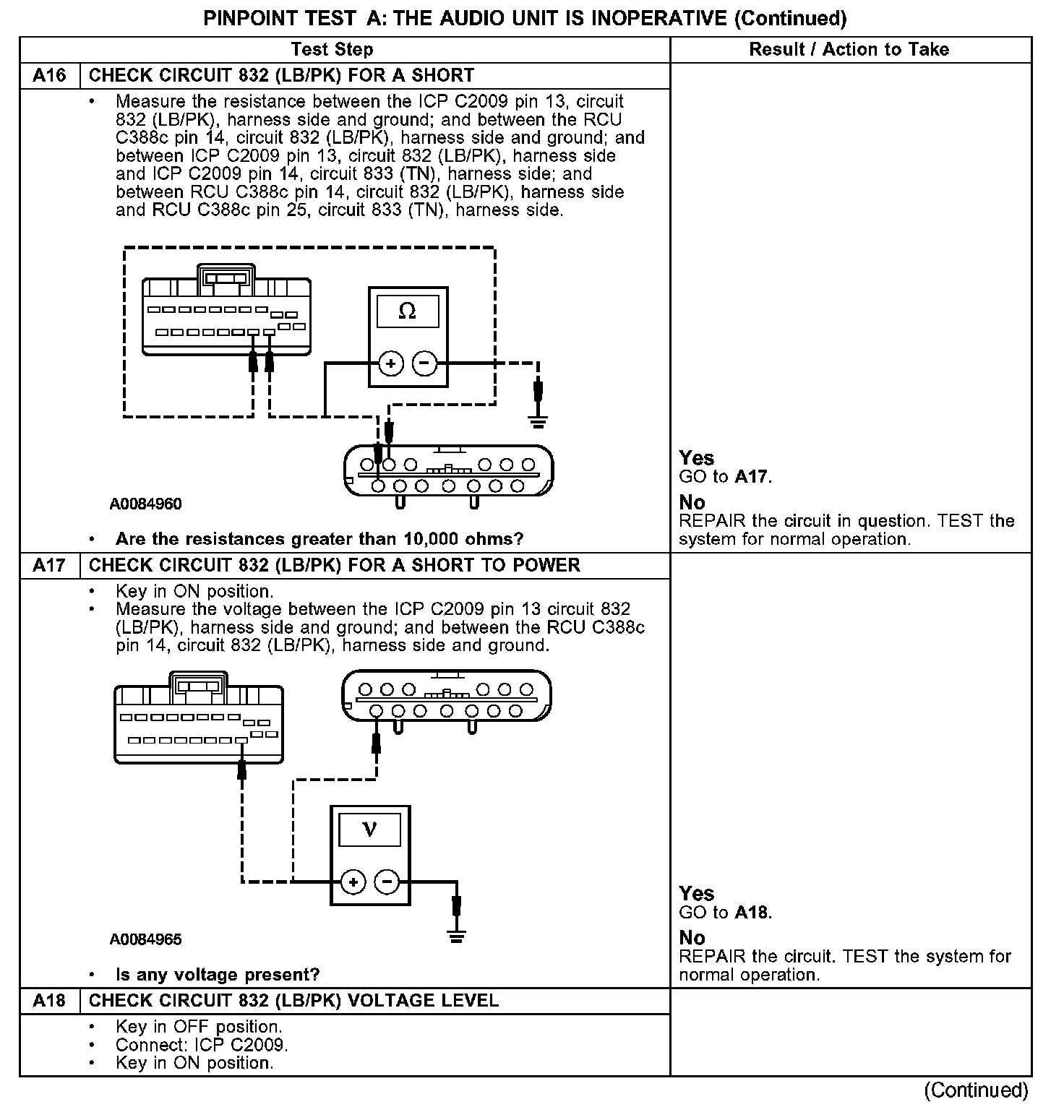

Test A16-A18:






Test A18-A20:

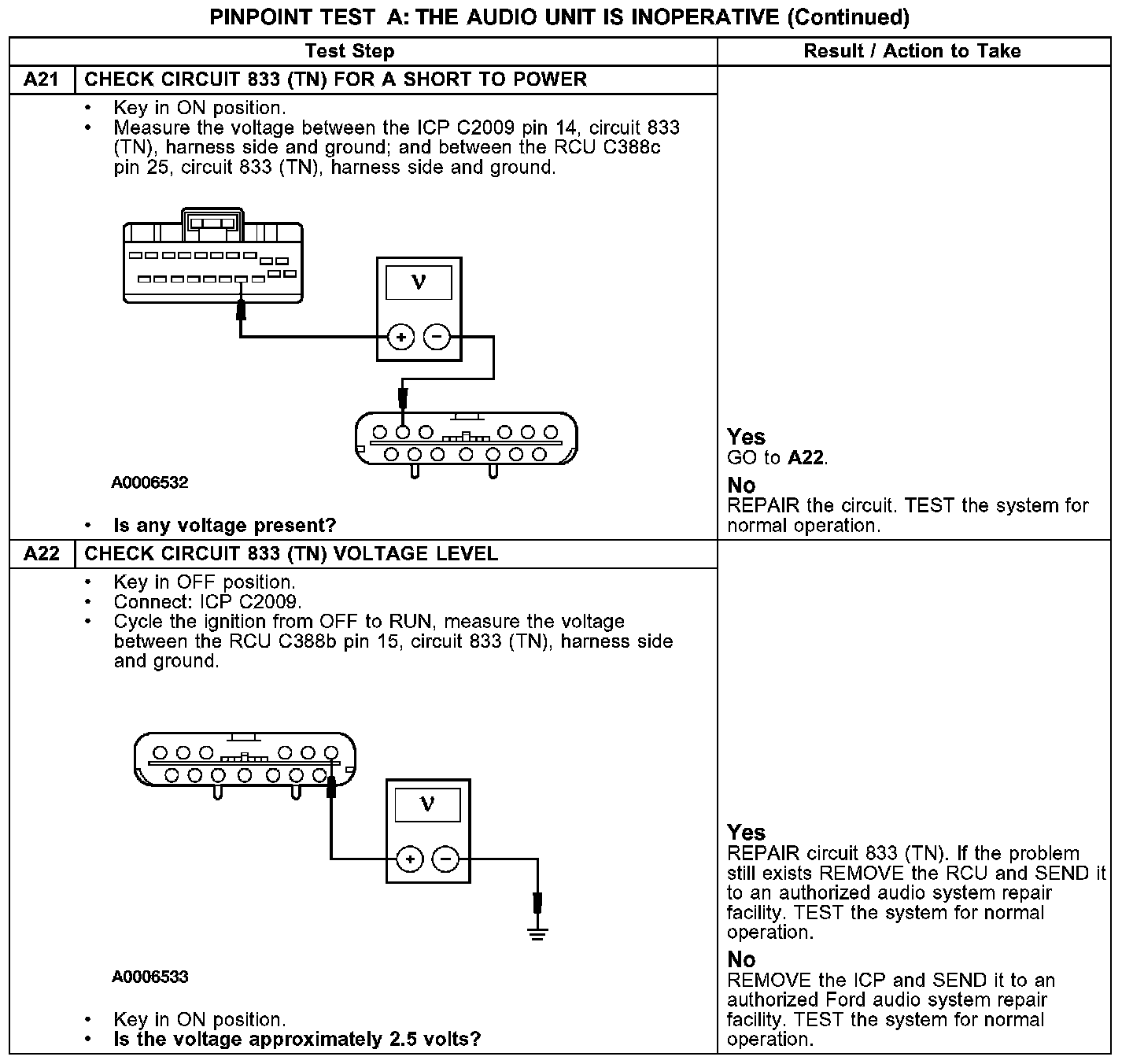

Test A21-A22:
