Initial Inspection and Diagnostic Overview

INSPECTION AND VERIFICATION

1. Verify the customer concern by operating the electronic audio system with the engine running and the vehicle in and out of motion.

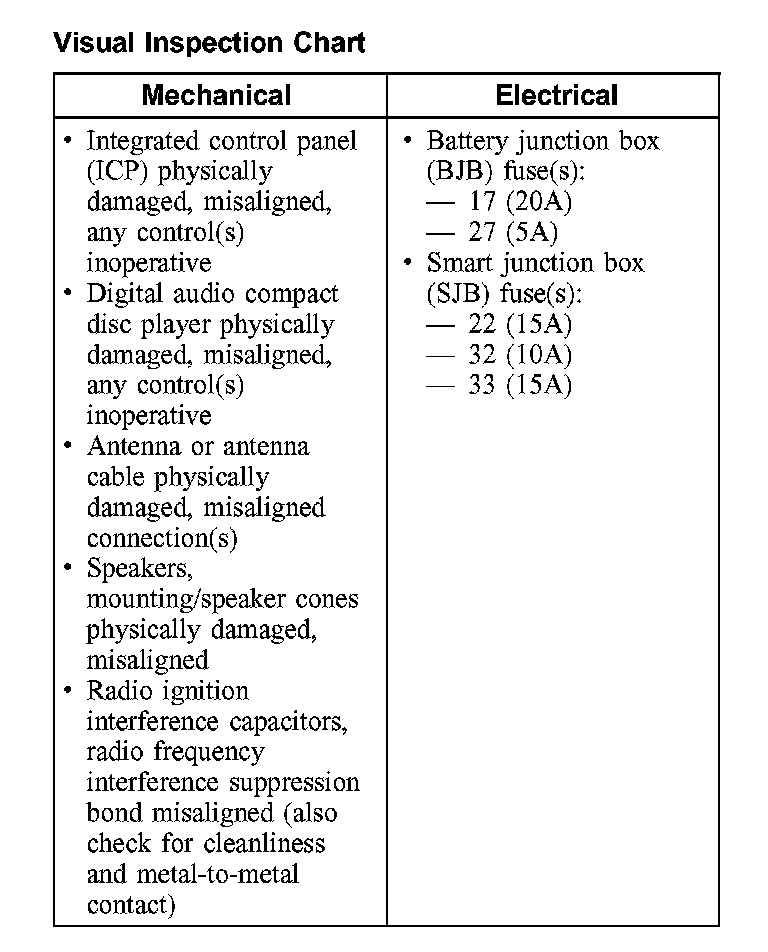

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If the fault is not visually evident, proceed to diagnose the integrated control panel (ICP) by entering the ICP Self-Diagnostic Mode. Reading and Clearing Diagnostic Trouble Codes
