Six Passenger Sedan

COMPACT DISC (CD) CHANGER - SIX PASSENGER SEDAN

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the luggage compartment scuff plate.
3. Remove the LH luggage compartment trim panel.

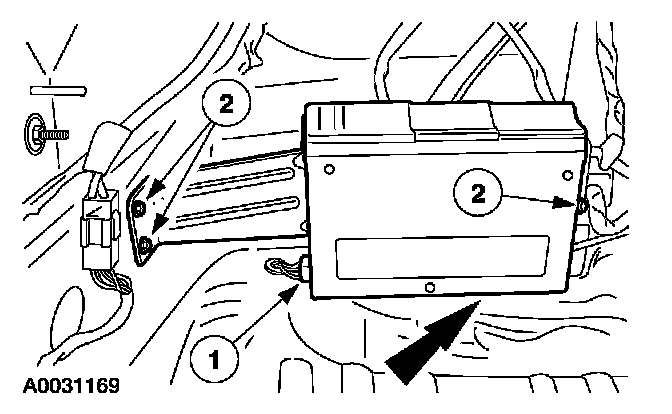

4. Remove the CD changer.
1 Disconnect the electrical connector.
2 Remove the screws.

INSTALLATION
1. To install, reverse the removal procedure.
