Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Garage Door Opener Transmitter >> Testing and Inspection >> Pinpoint Tests

Pinpoint Tests

PINPOINT TEST A: THE UNIVERSAL TRANSMITTER IS INOPERATIVE

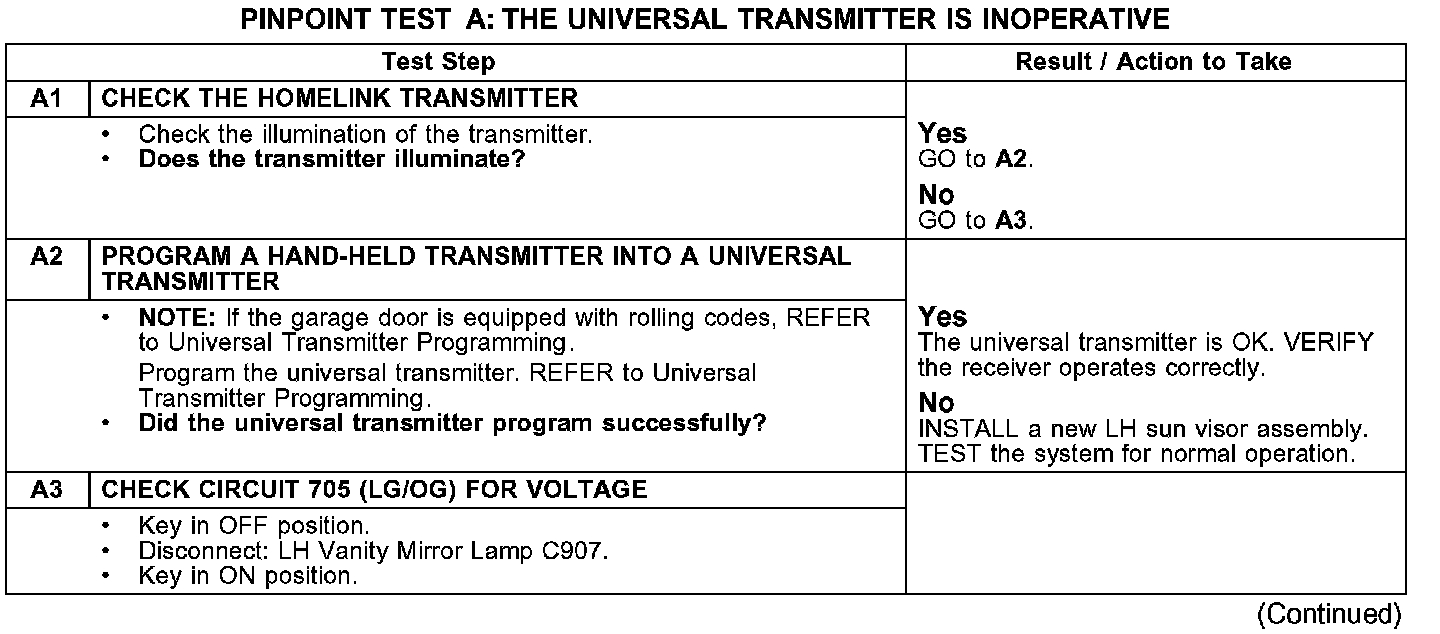

Test A1-A3:

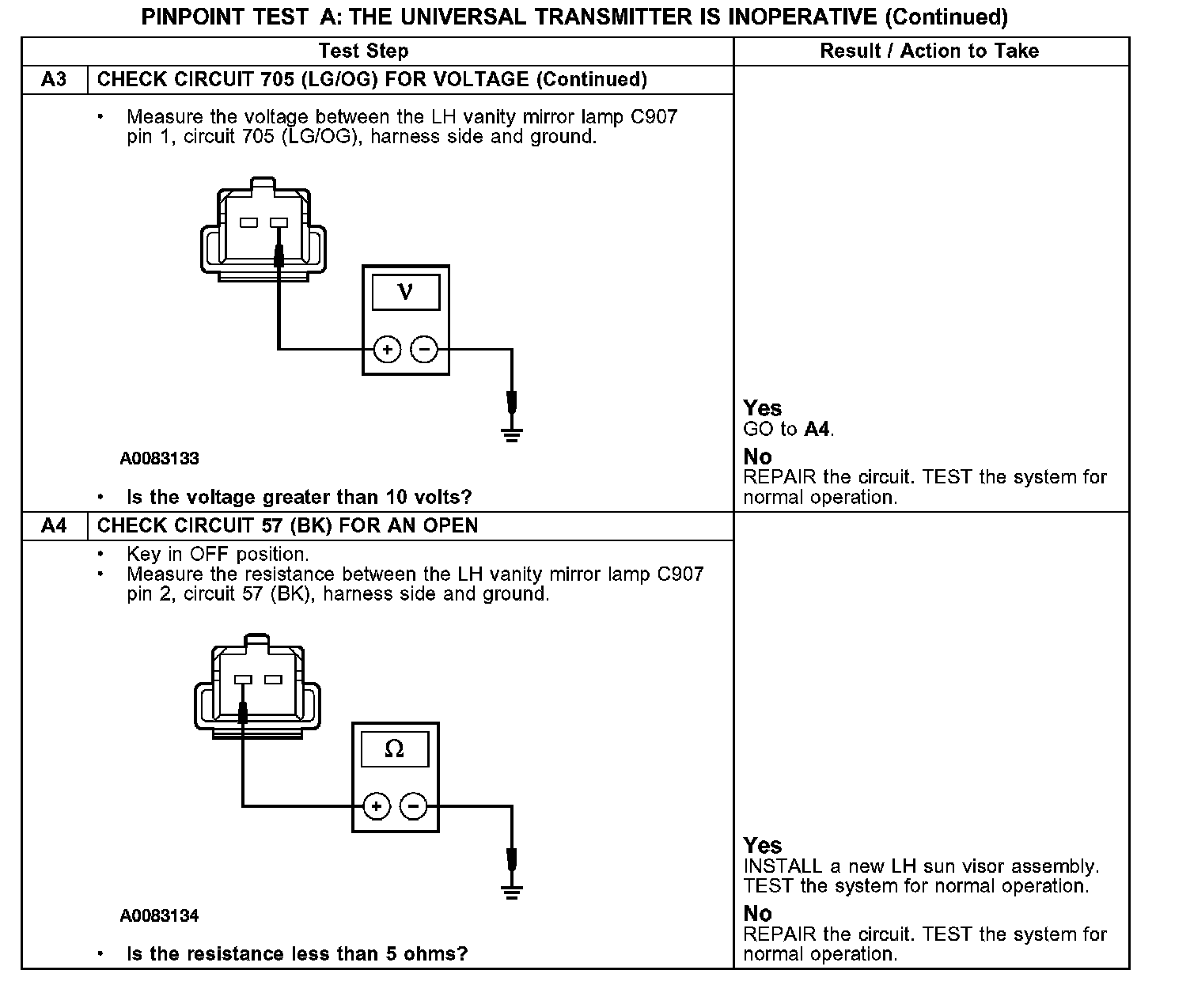

Test A3-A4:
