PINPOINT TEST D: PATS RECEIVED INVALID FORMAT OF KEY-CODE FROM IGNITION KEY TRANSPONDER

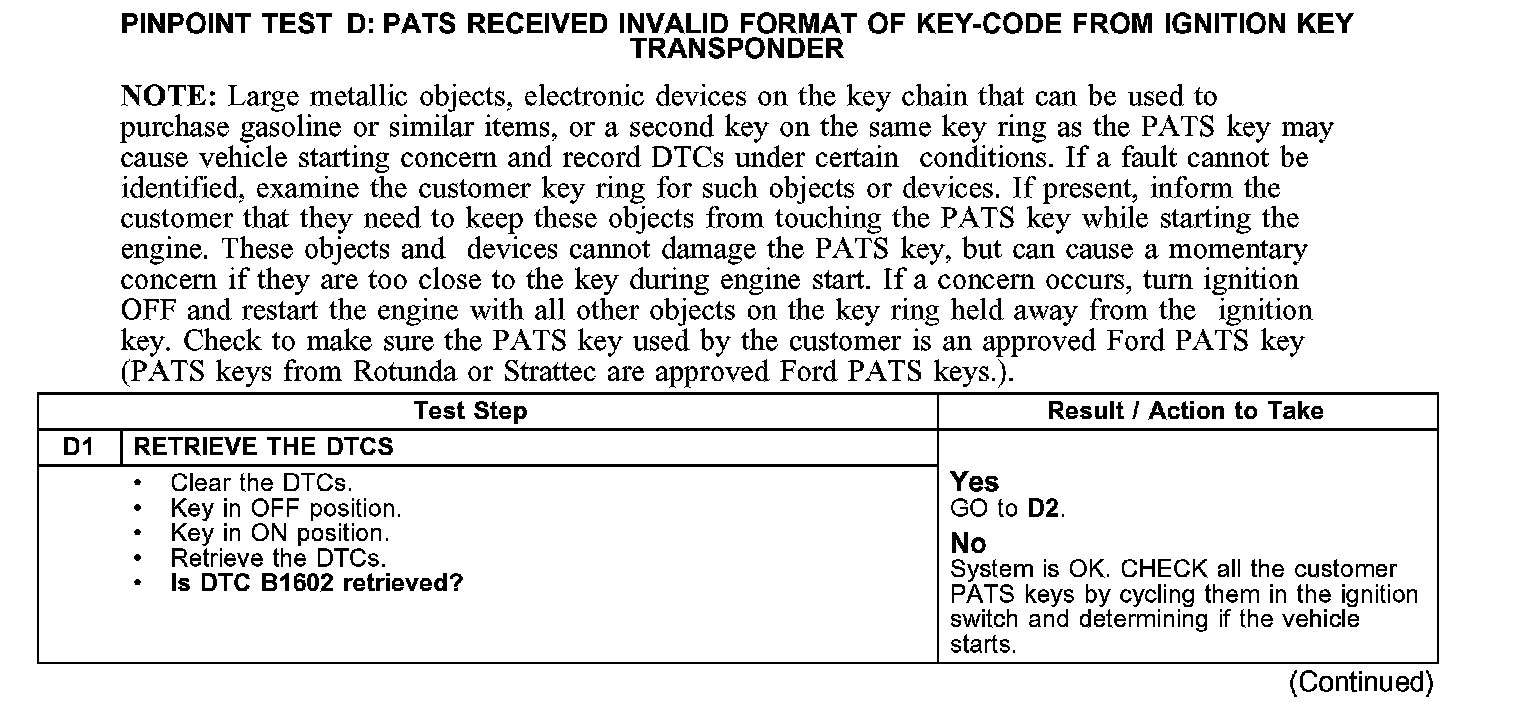

Test D1:

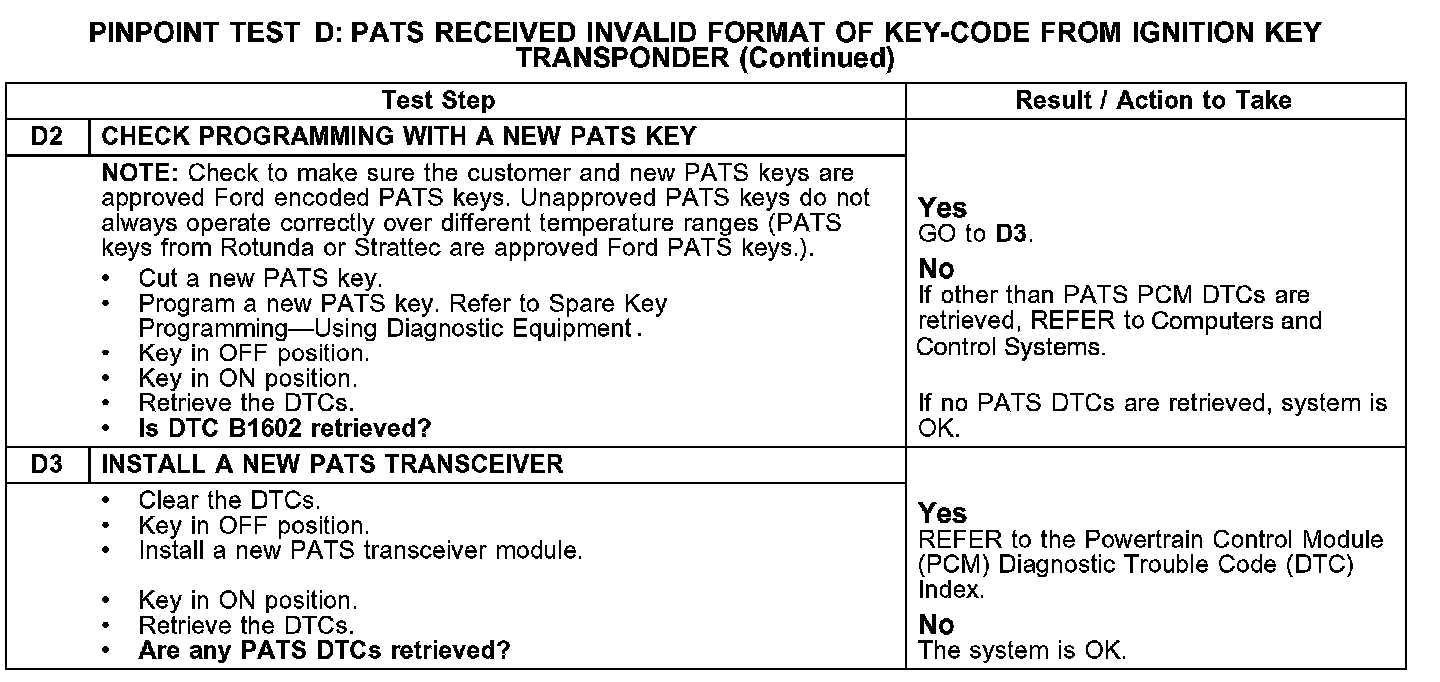

Test D2-D3:
