PINPOINT TEST C: PATS RECEIVED INCORRECT KEY-CODE FROM IGNITION KEY TRANSPONDER

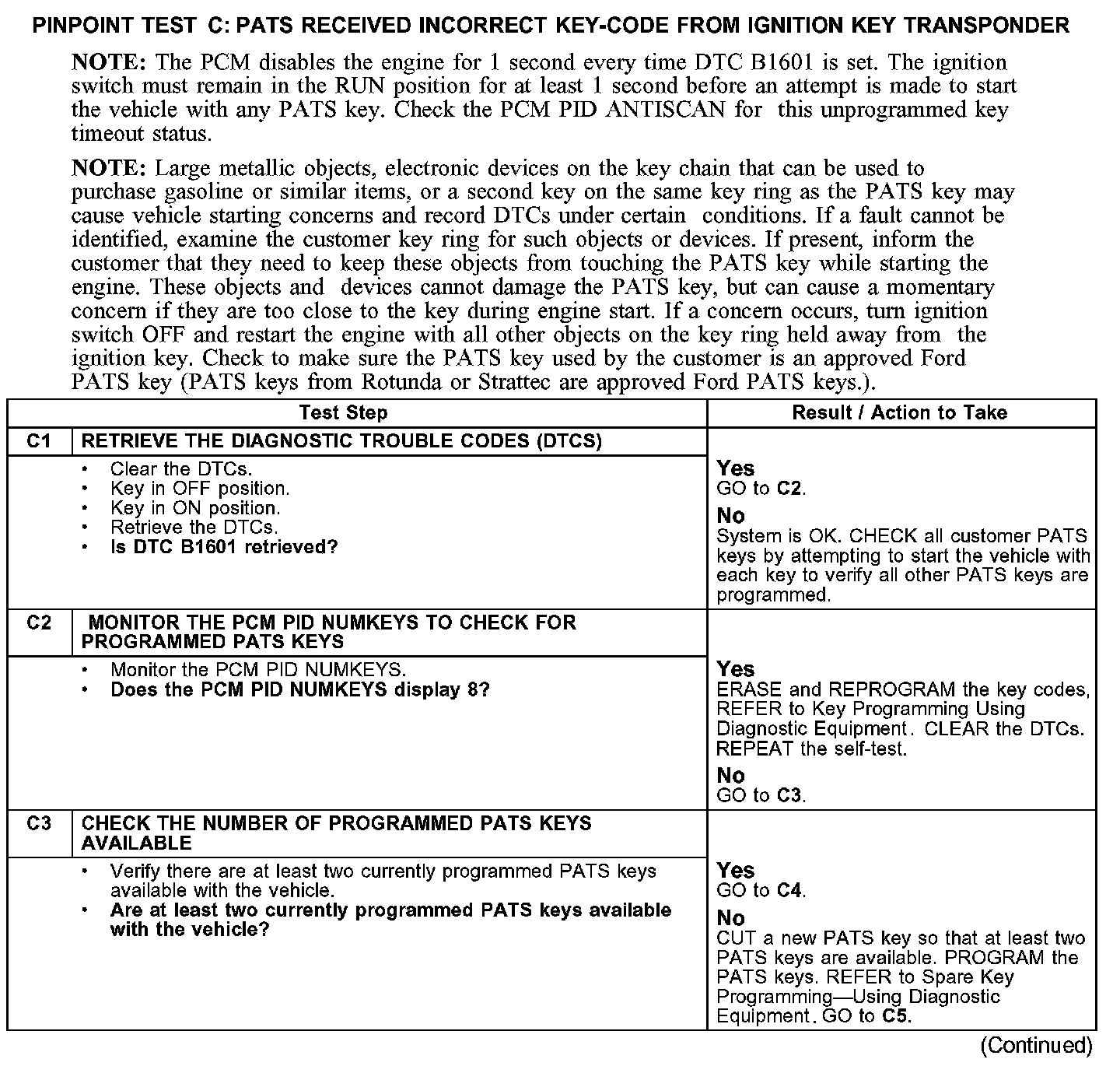

Test C1-C3:

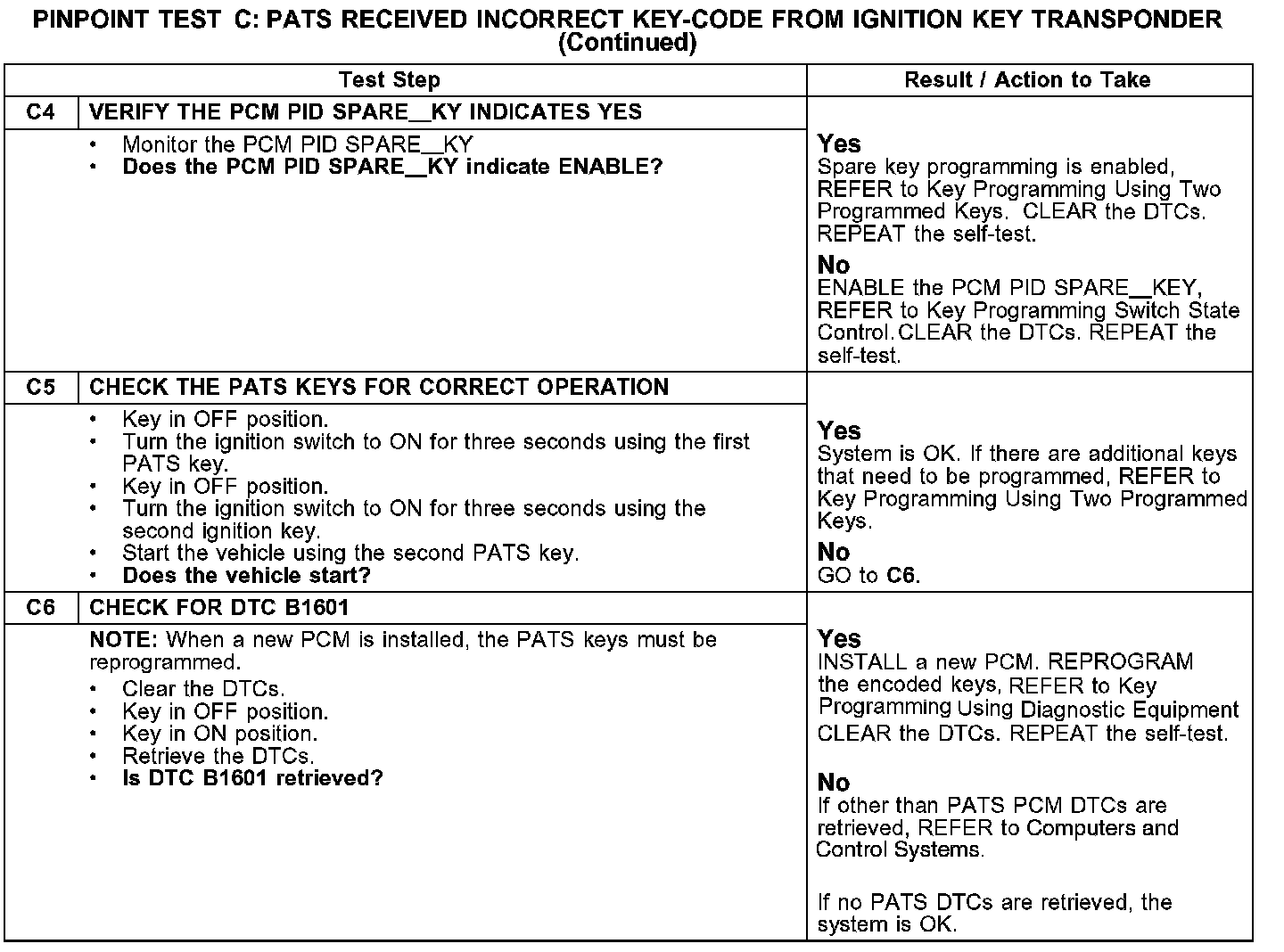

Test C4-C6:
