Test A: Shift Solenoid

PINPOINT TEST A: SHIFT SOLENOID

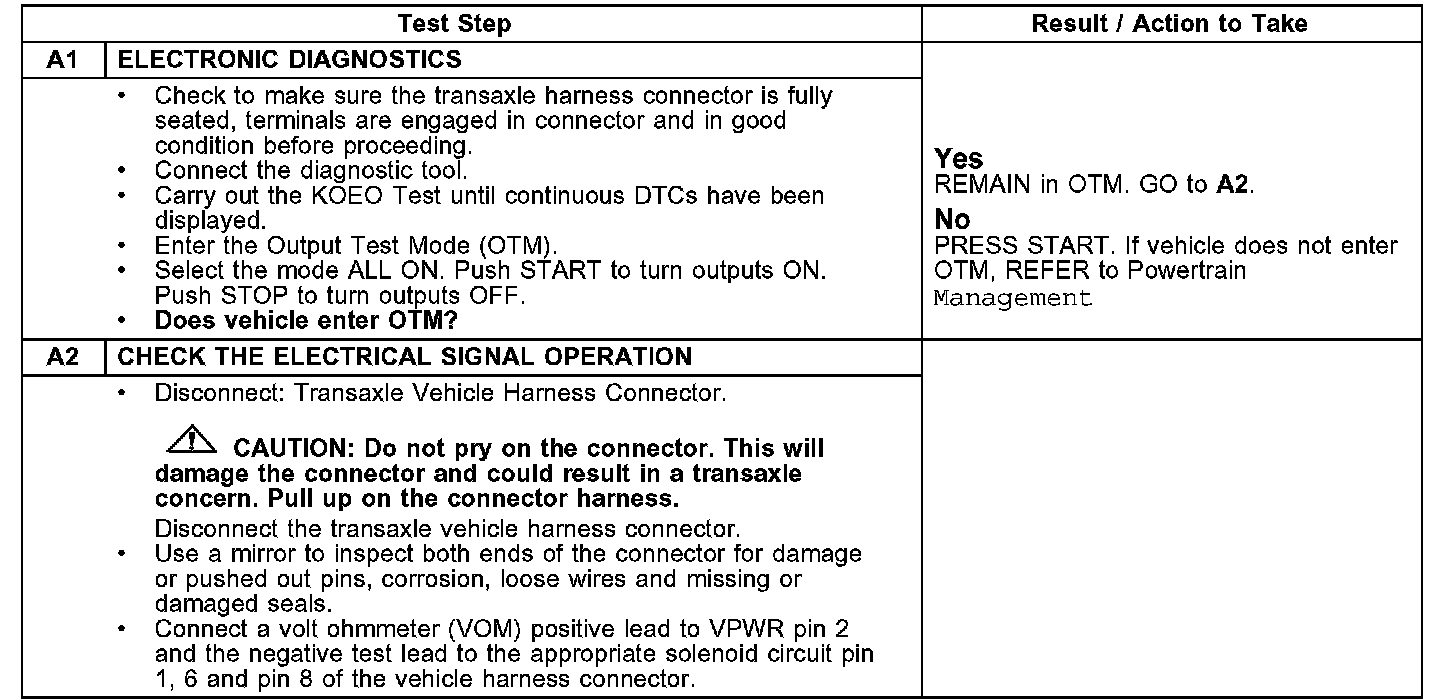

Test A1-A2:

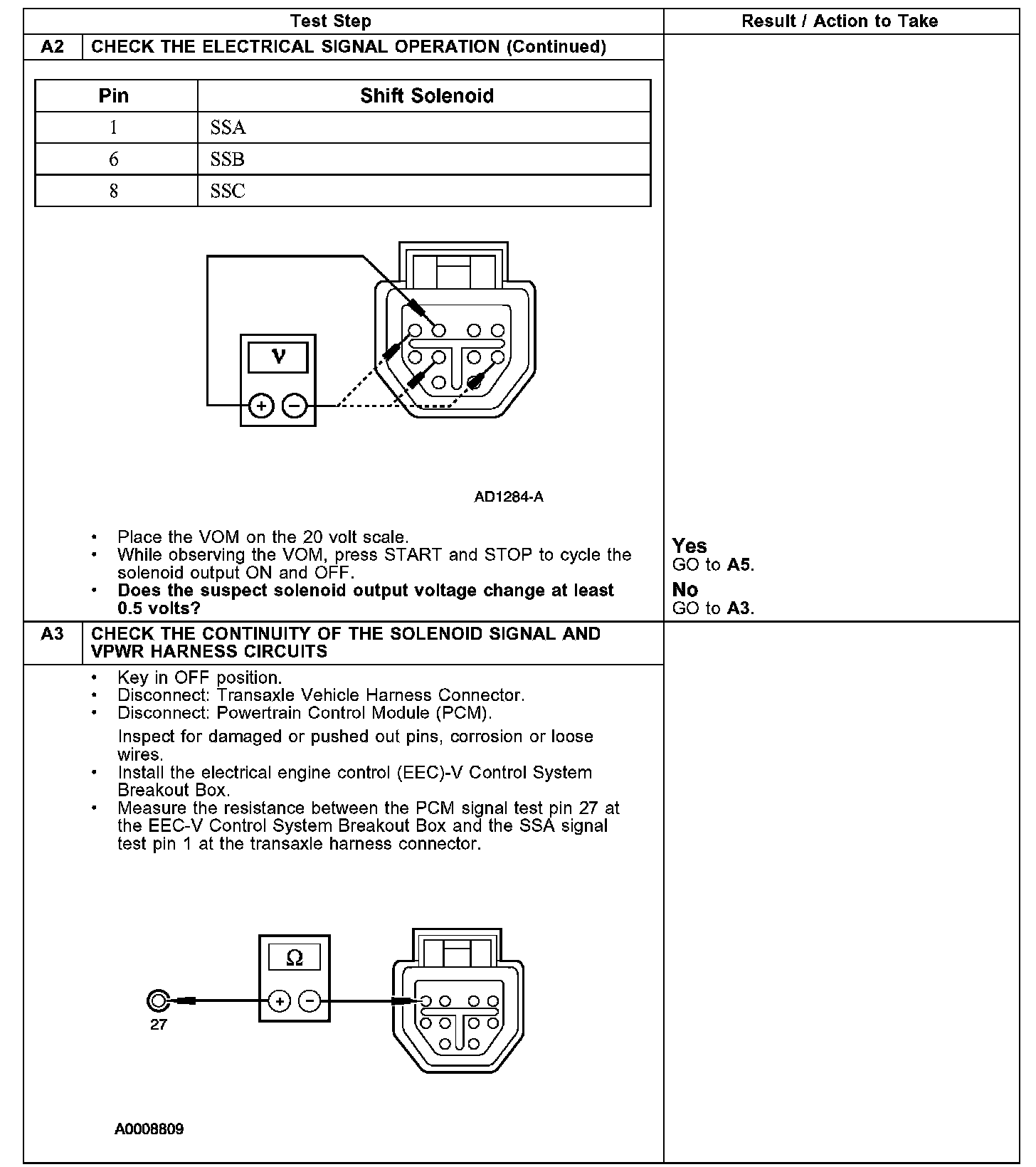

Test A2-A3:

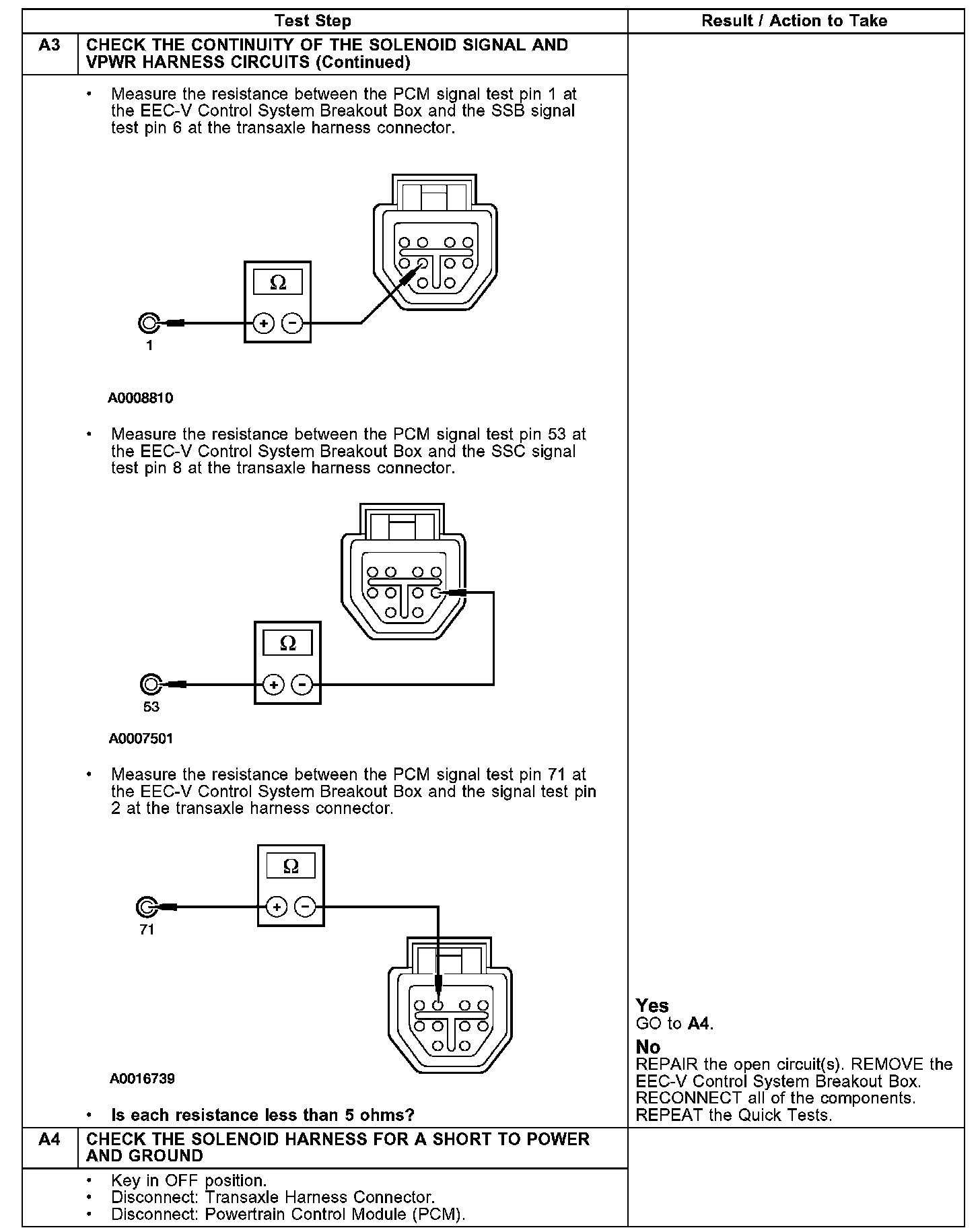

Test A3-A4:

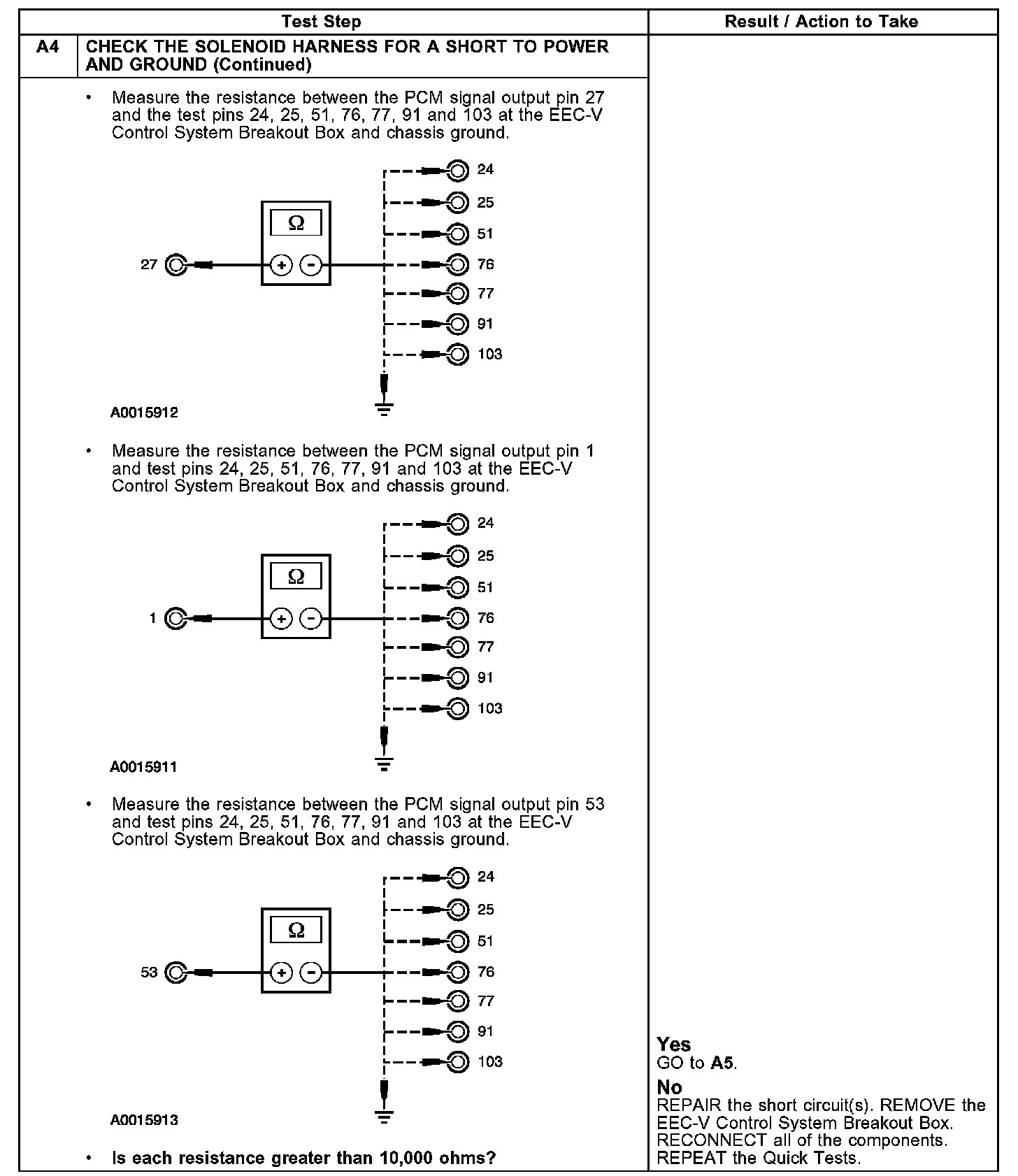

Test A4 Continued:

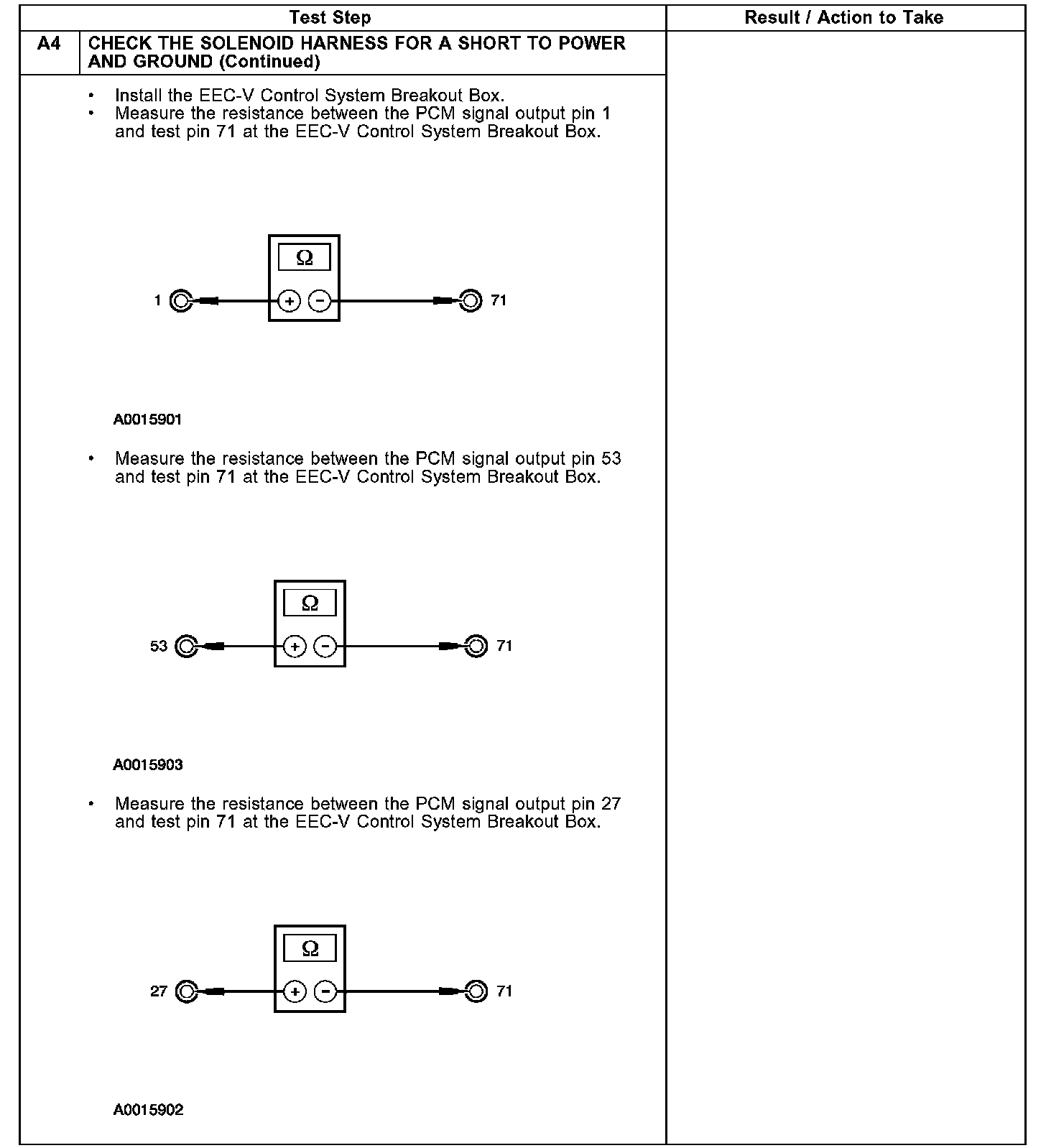

Test A4 Continued:

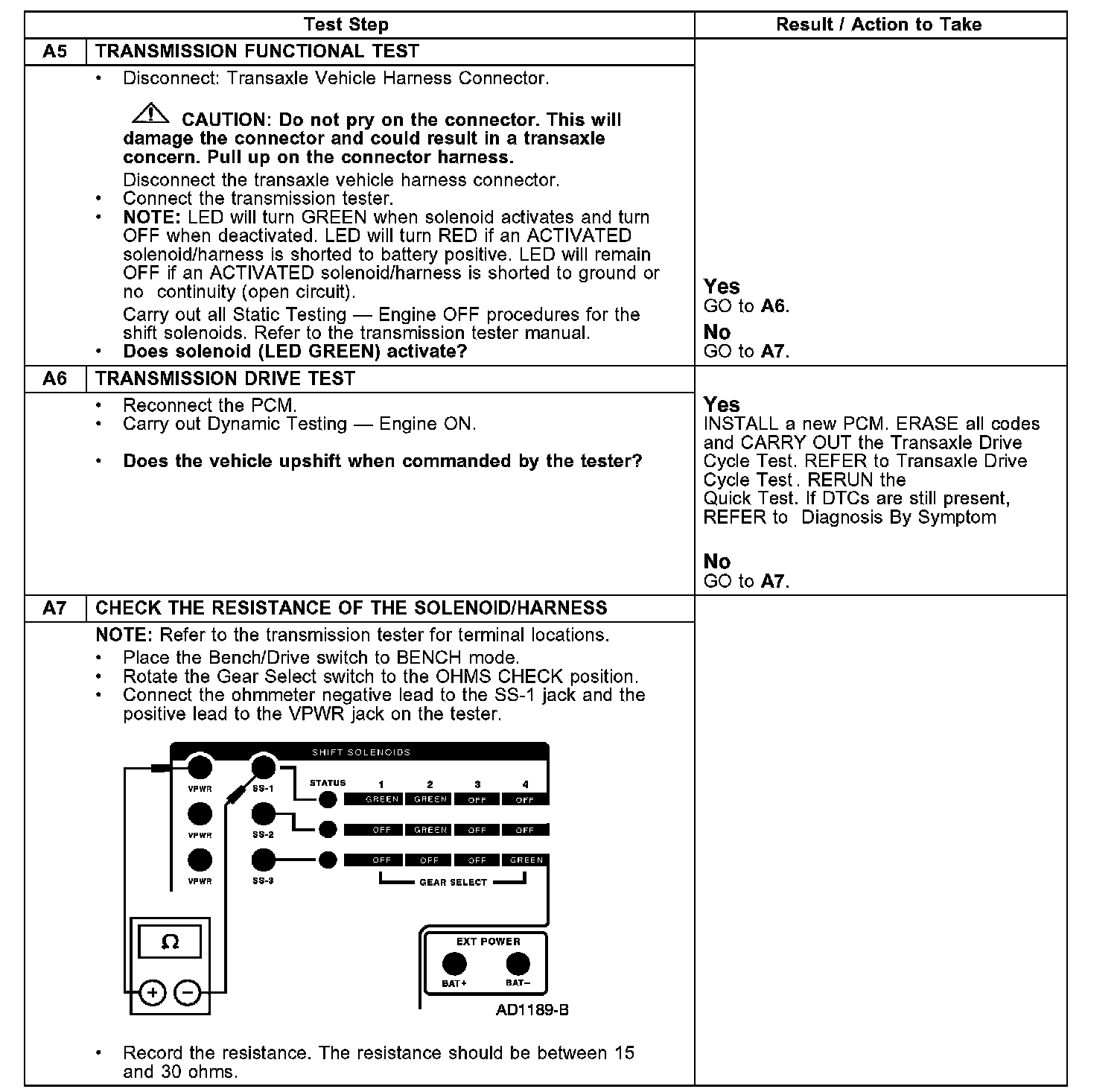

Test A5-A7:

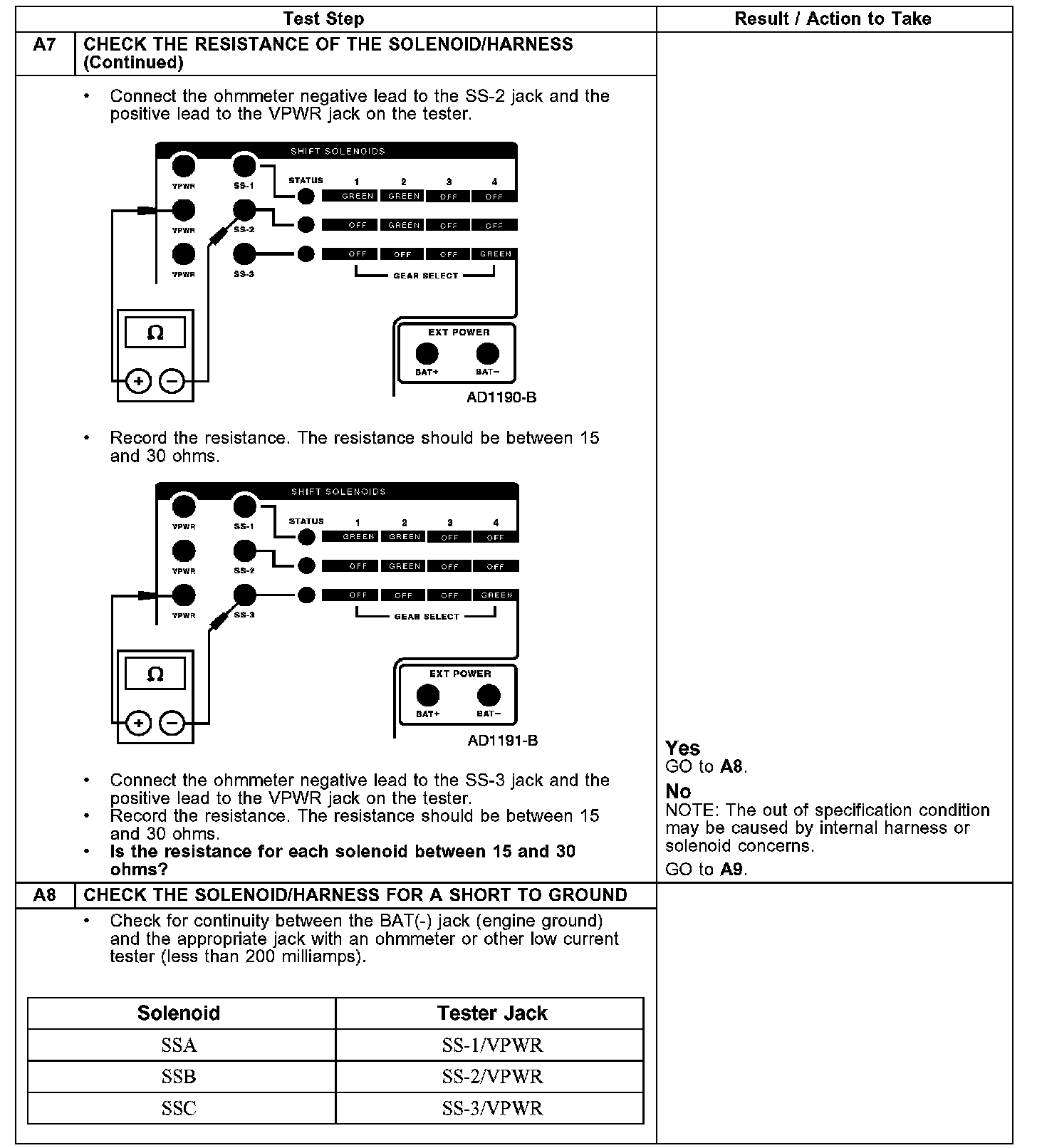

Test A7-A8:

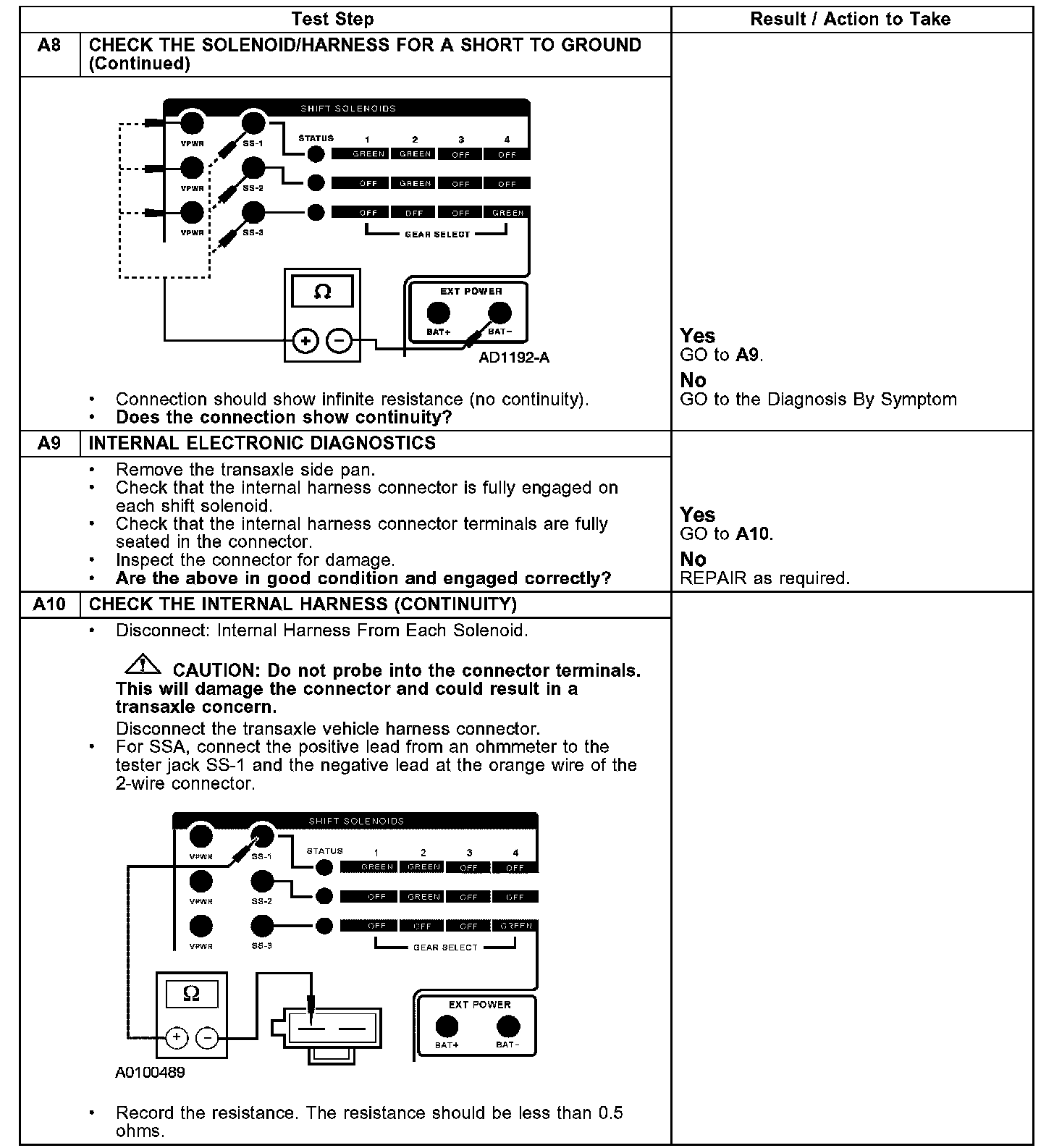

Test A8-A10:

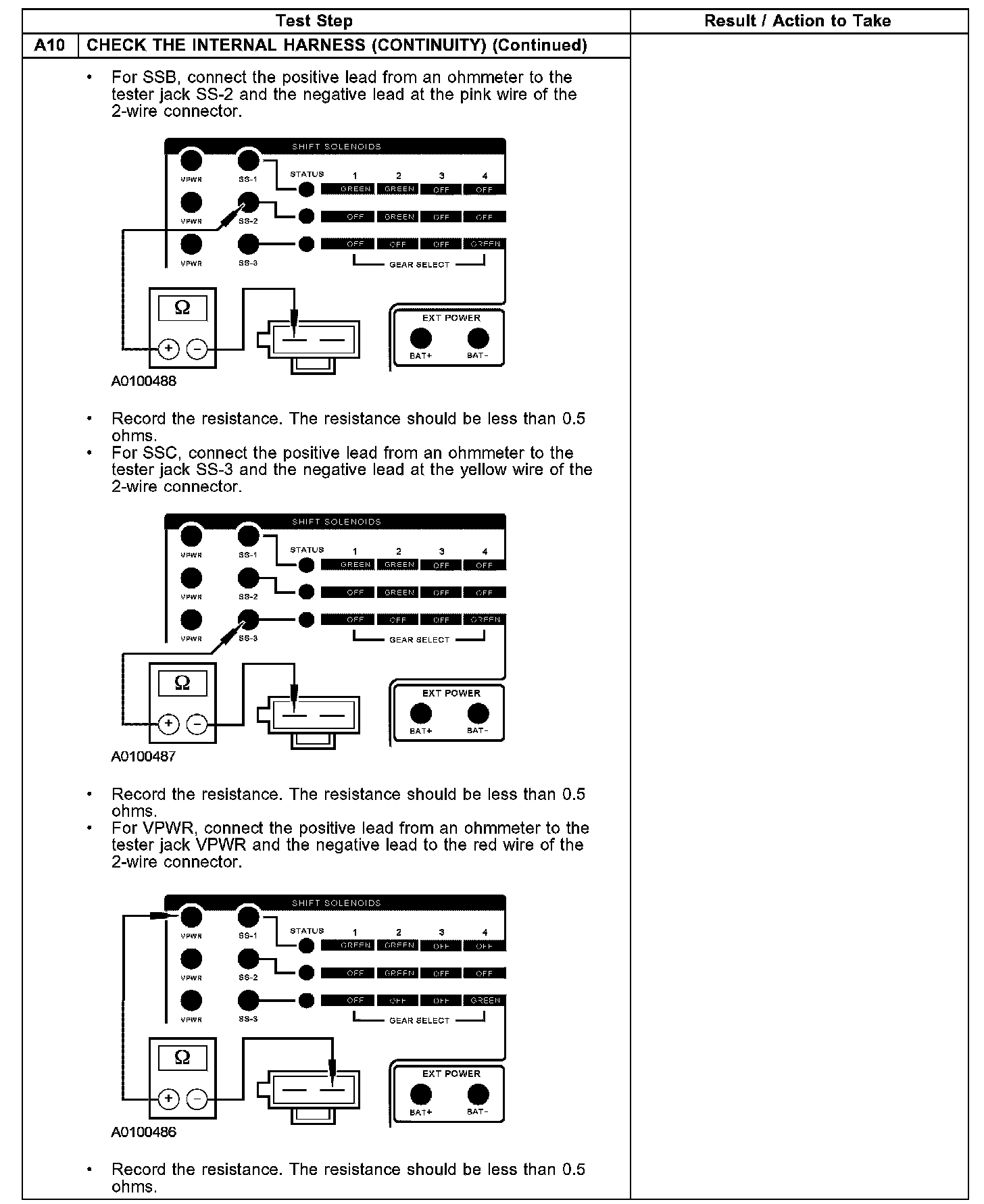

Test A10 Continued:

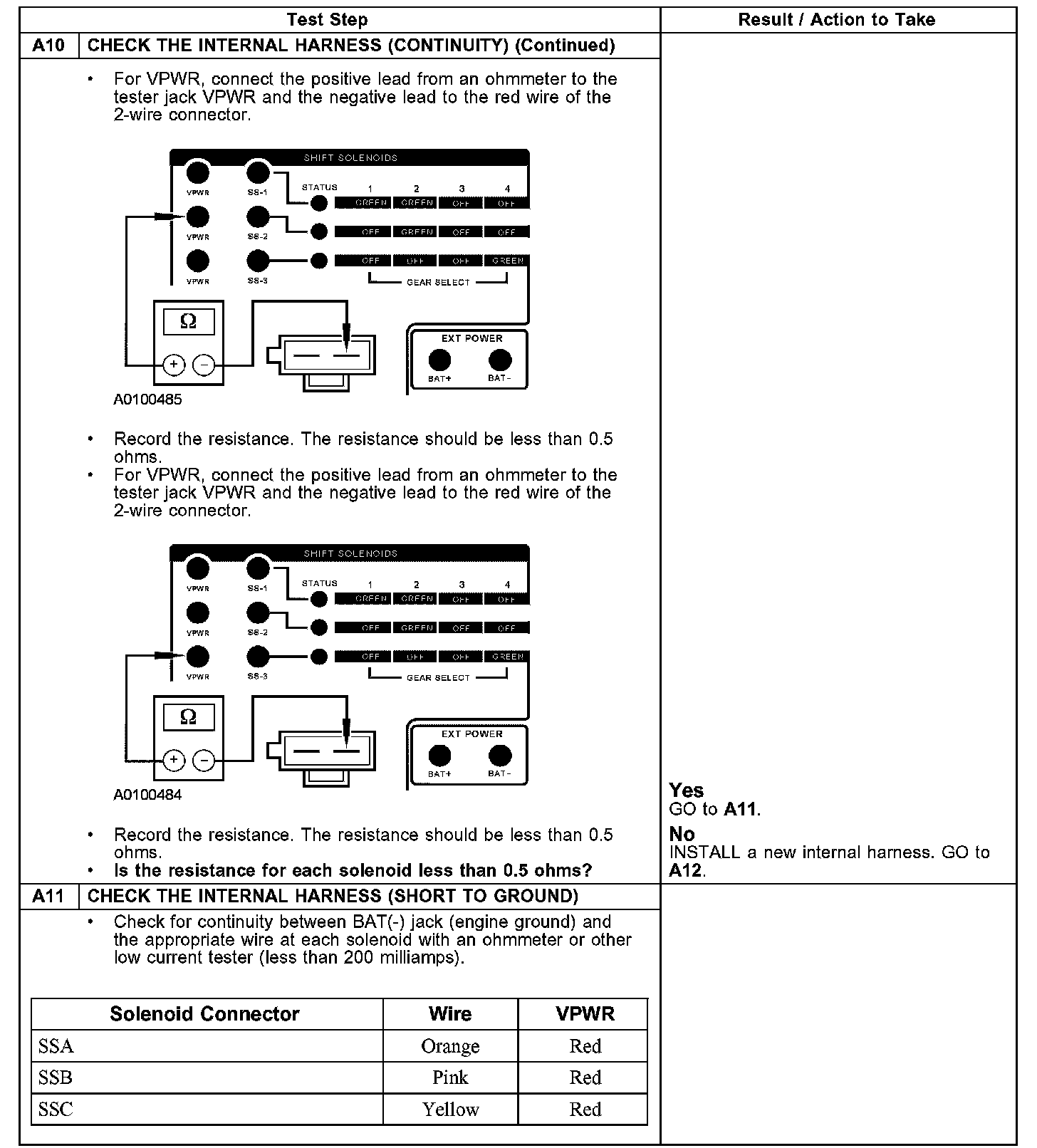

Test A10-A11:

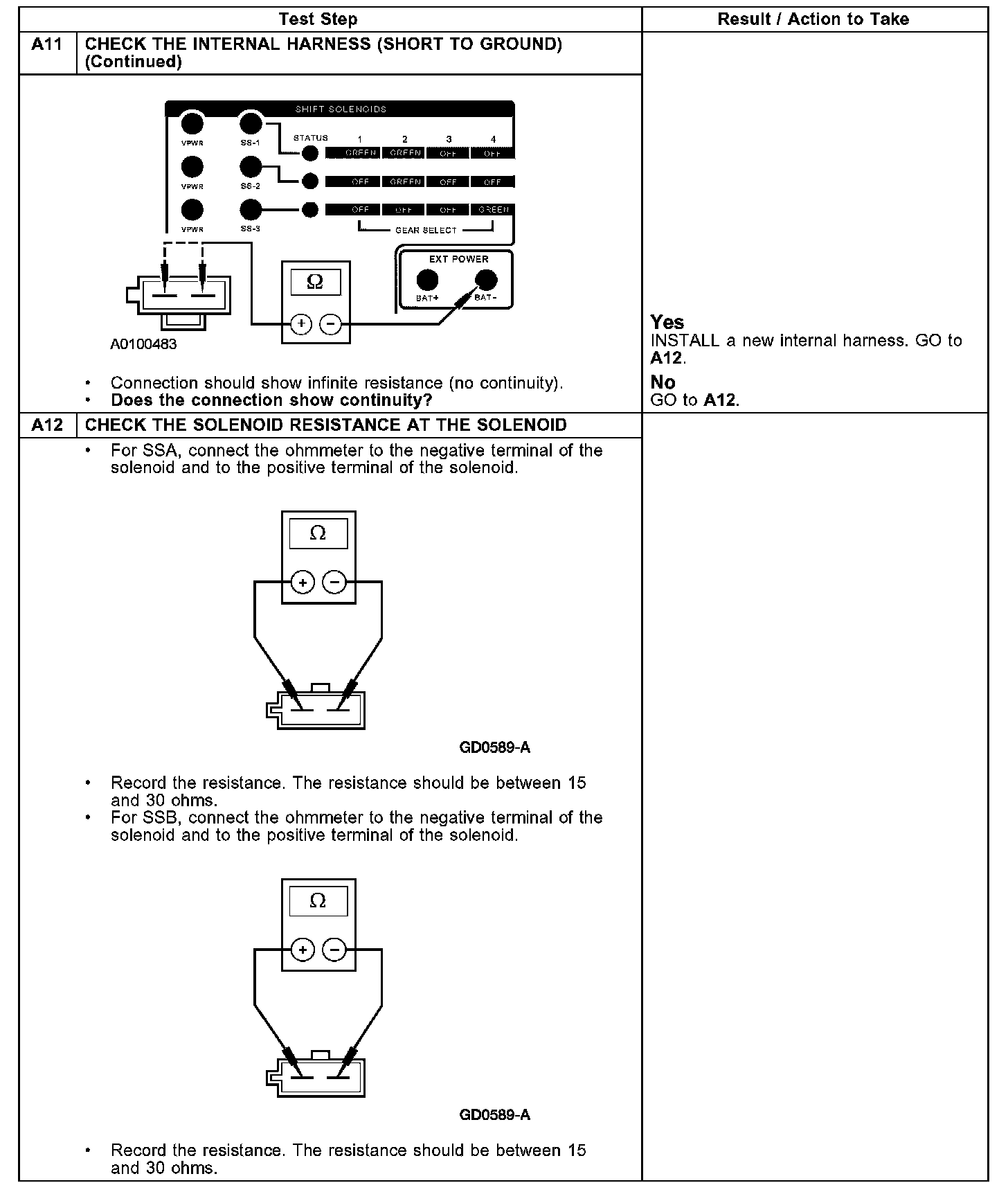

Test A11-A12:

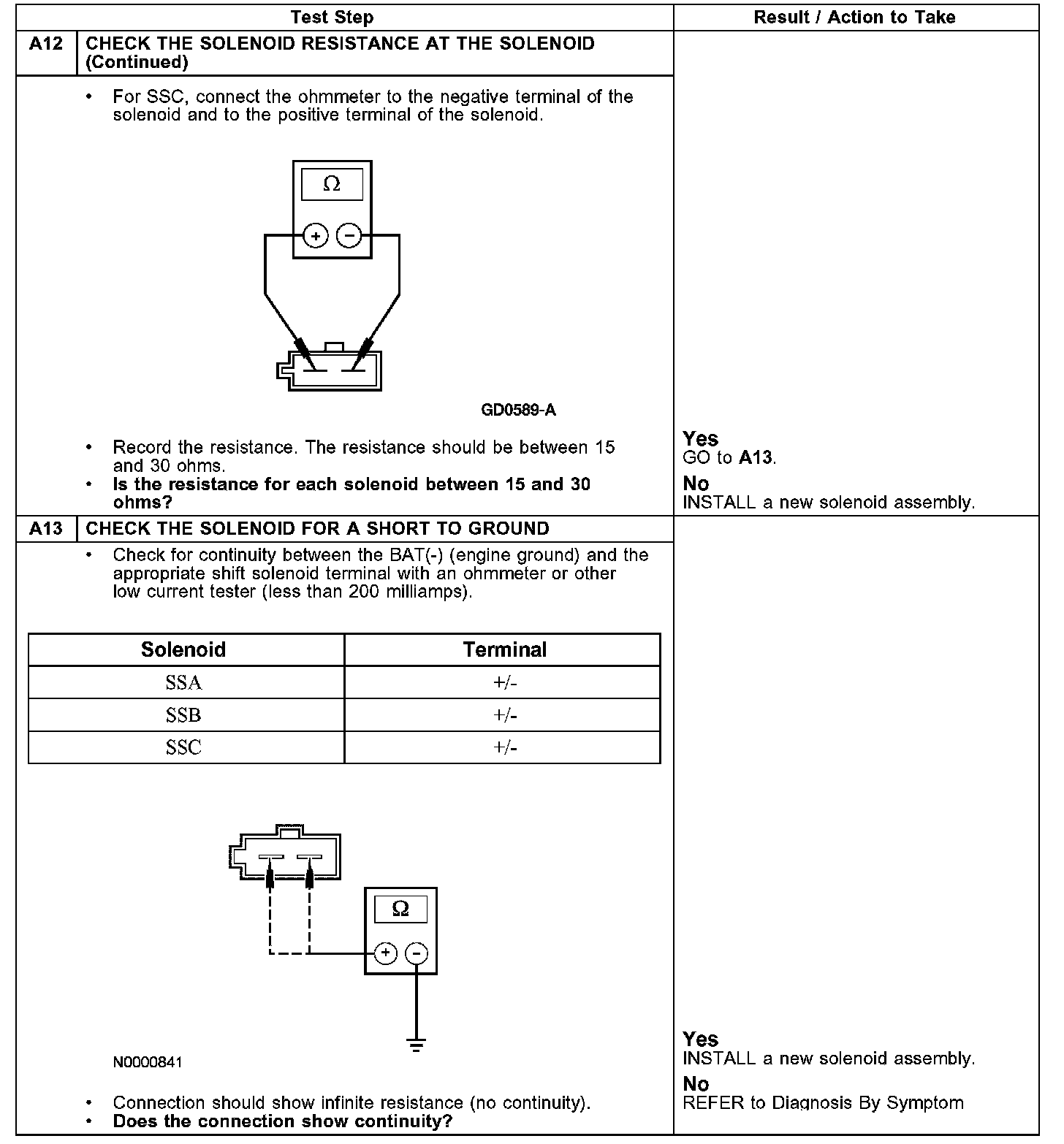

Test A12-A13:

NOTE: Refer to the Transaxle Internal Harness Diagram illustration.

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration.
