Home >> Mercury >> 2005 >> Sable V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Specifications

Ignition Coil: Specifications

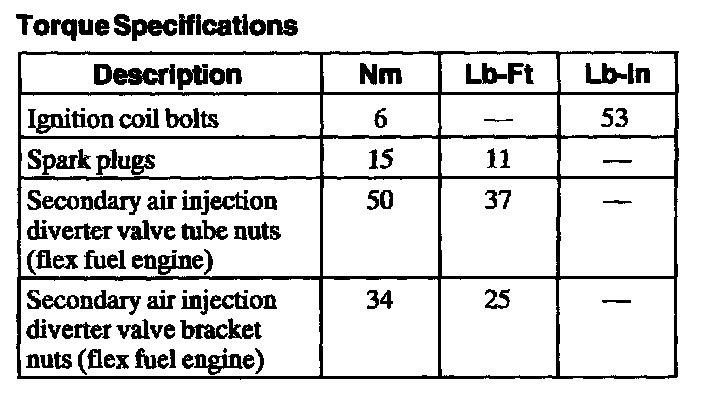

Torque Specifications:
