Tests TB: Transmission Control Switch (TCS)/Transmission Control Indicator Lamp (TCIL)



PINPOINT TEST TB: TRANSMISSION CONTROL SWITCH (TCS)/TRANSMISSION CONTROL INDICATOR LAMP (TCIL)

TB Introduction:

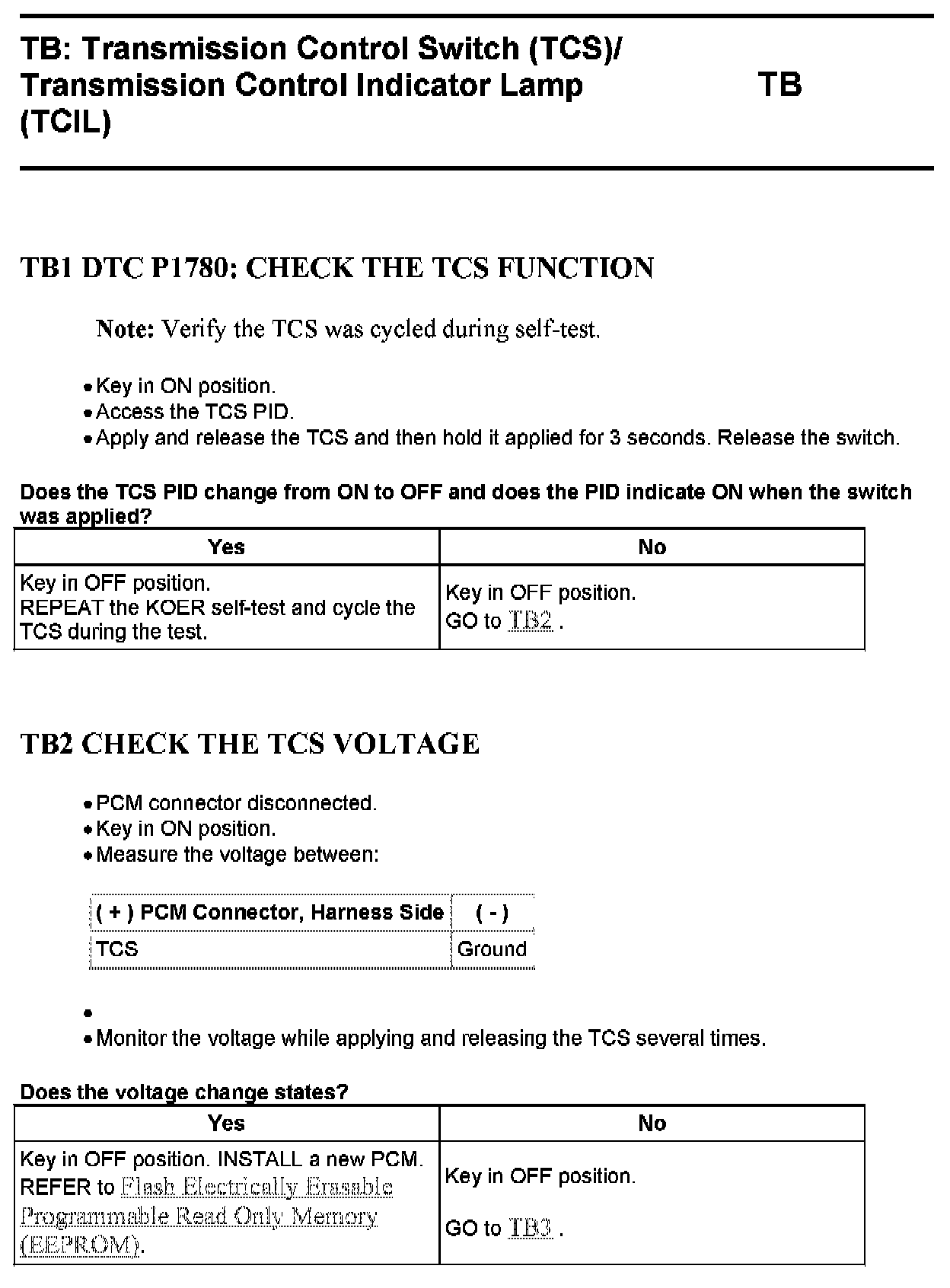

TB1 - TB2:

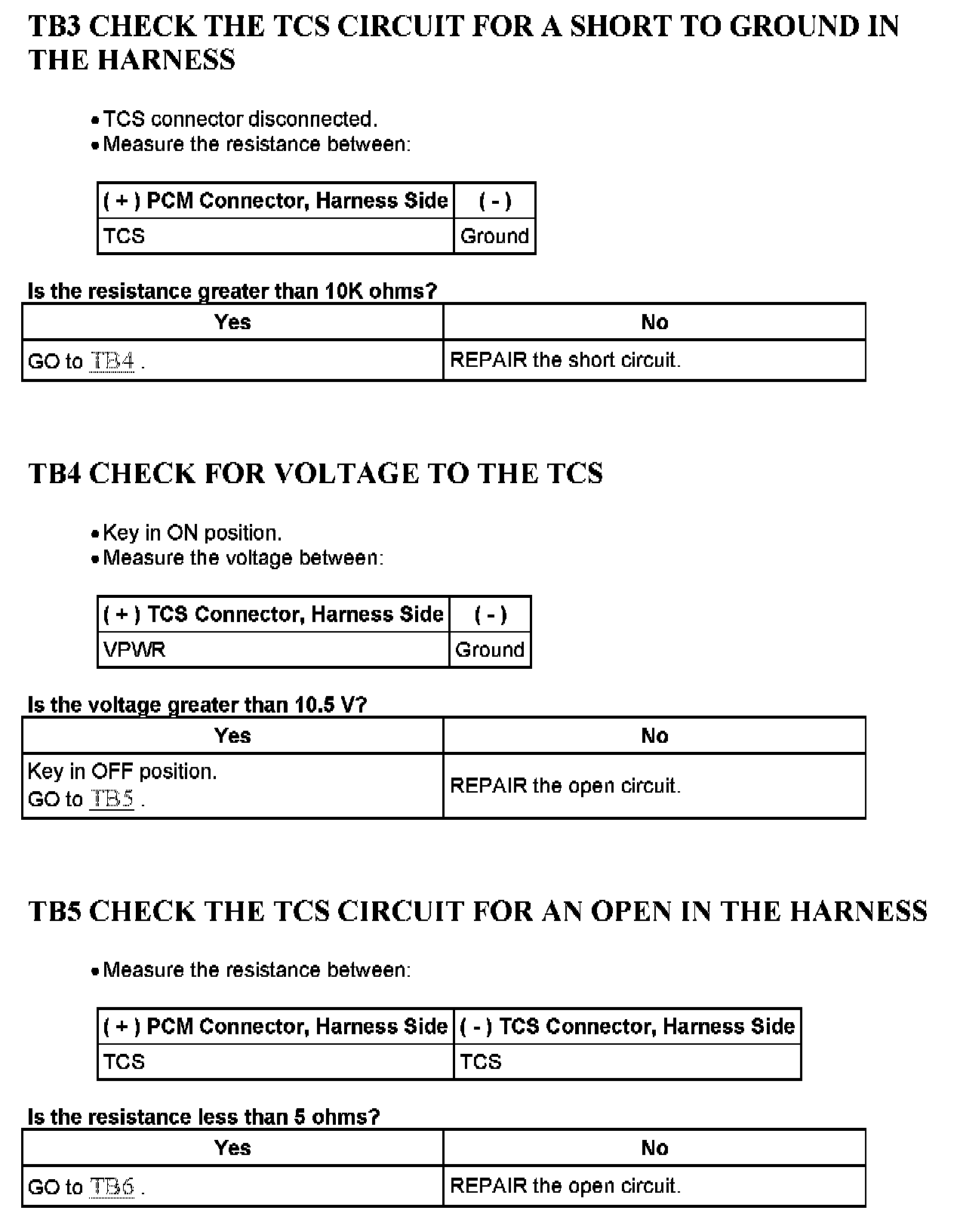

TB3 - TB5:

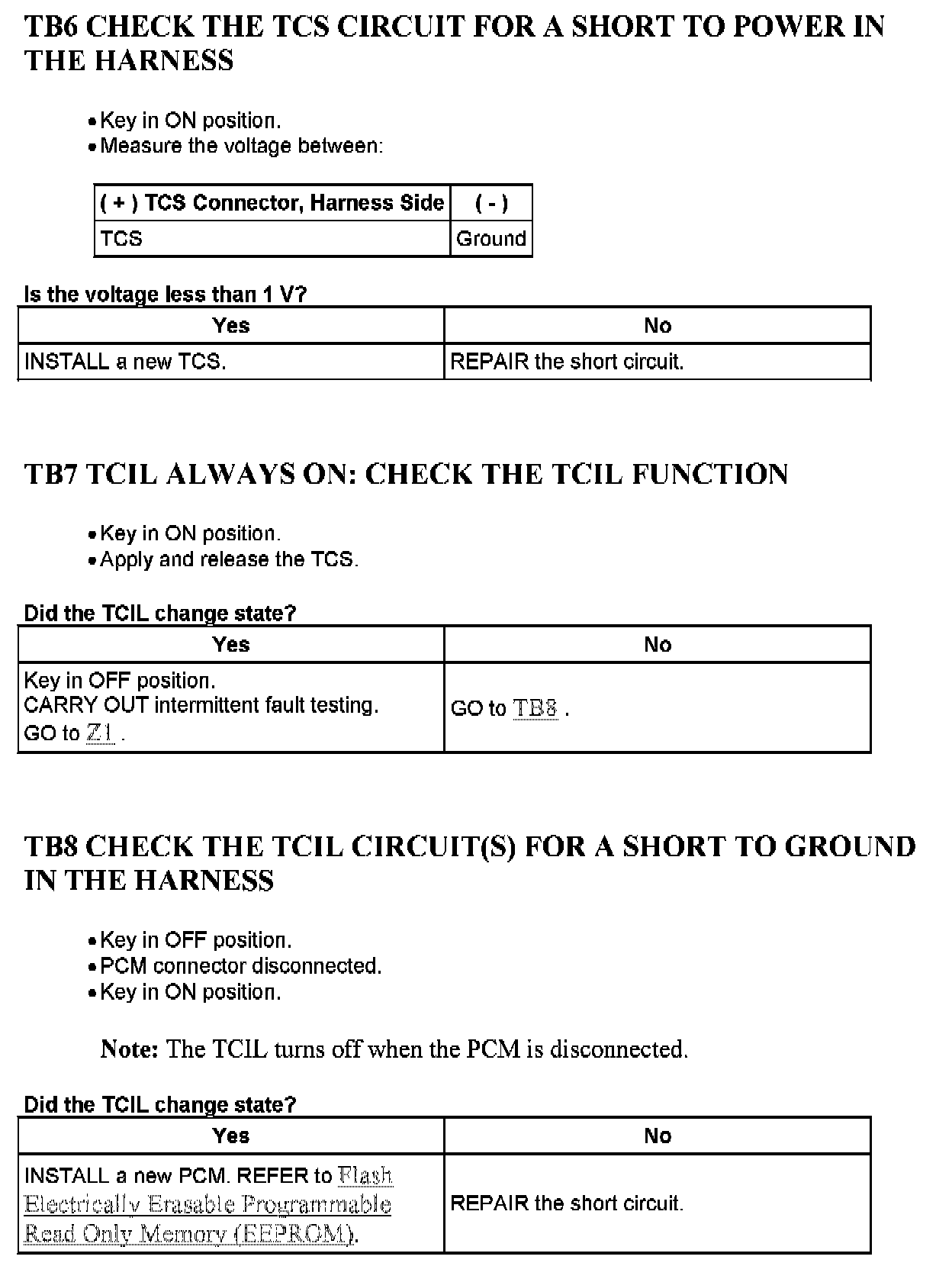

TB6 - TB8:

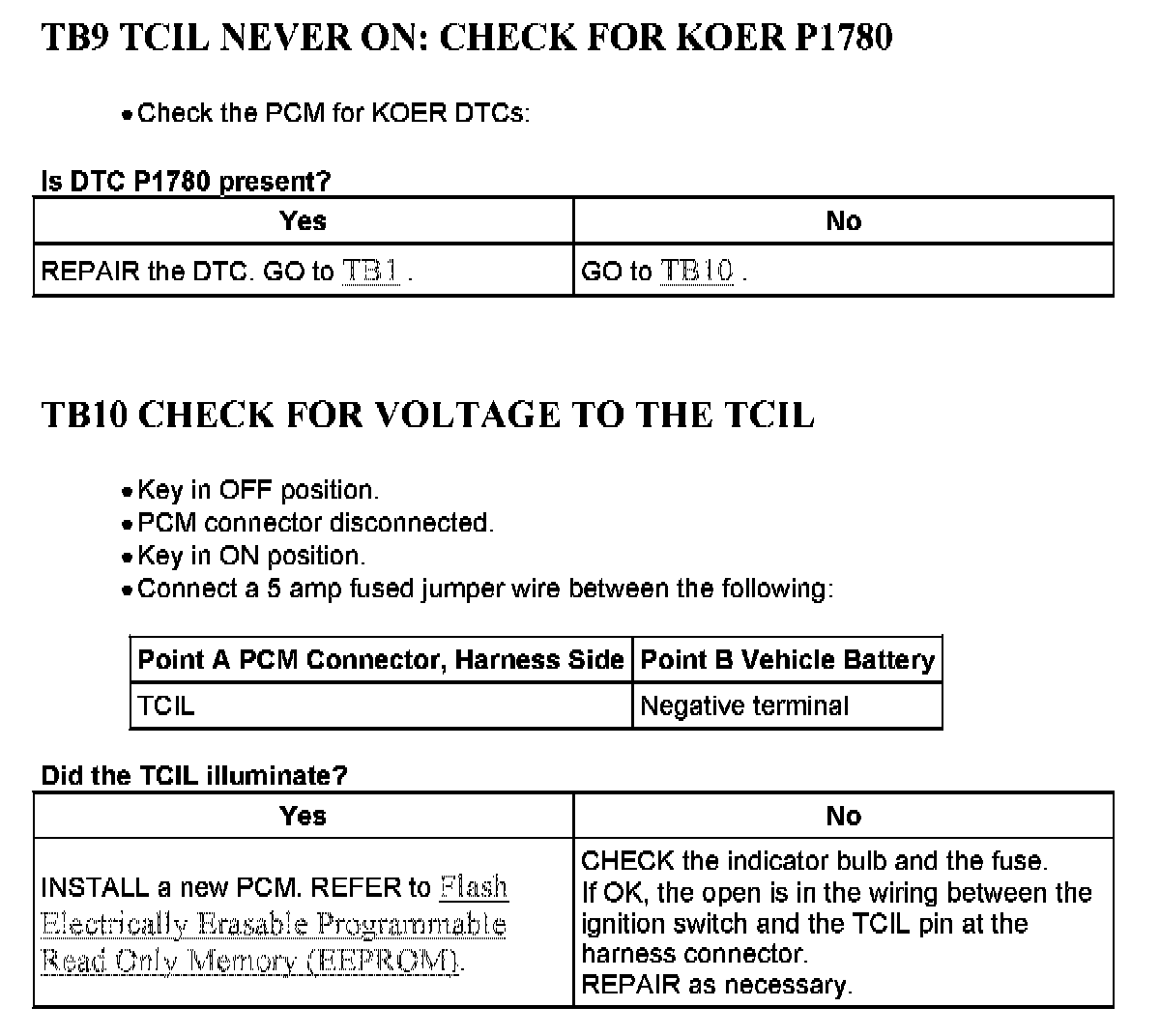

TB9 - TB10:
