Test Q: The High Beam Indicator Is Never On

PINPOINT TEST Q: THE HIGH BEAM INDICATOR IS NEVER ON

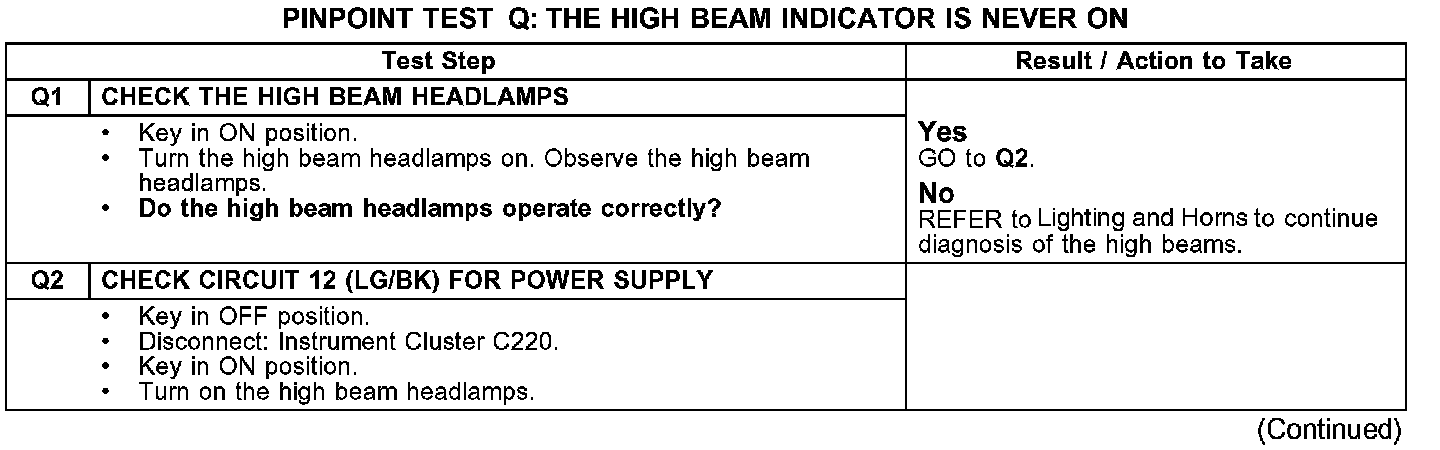

Q1-Q2:

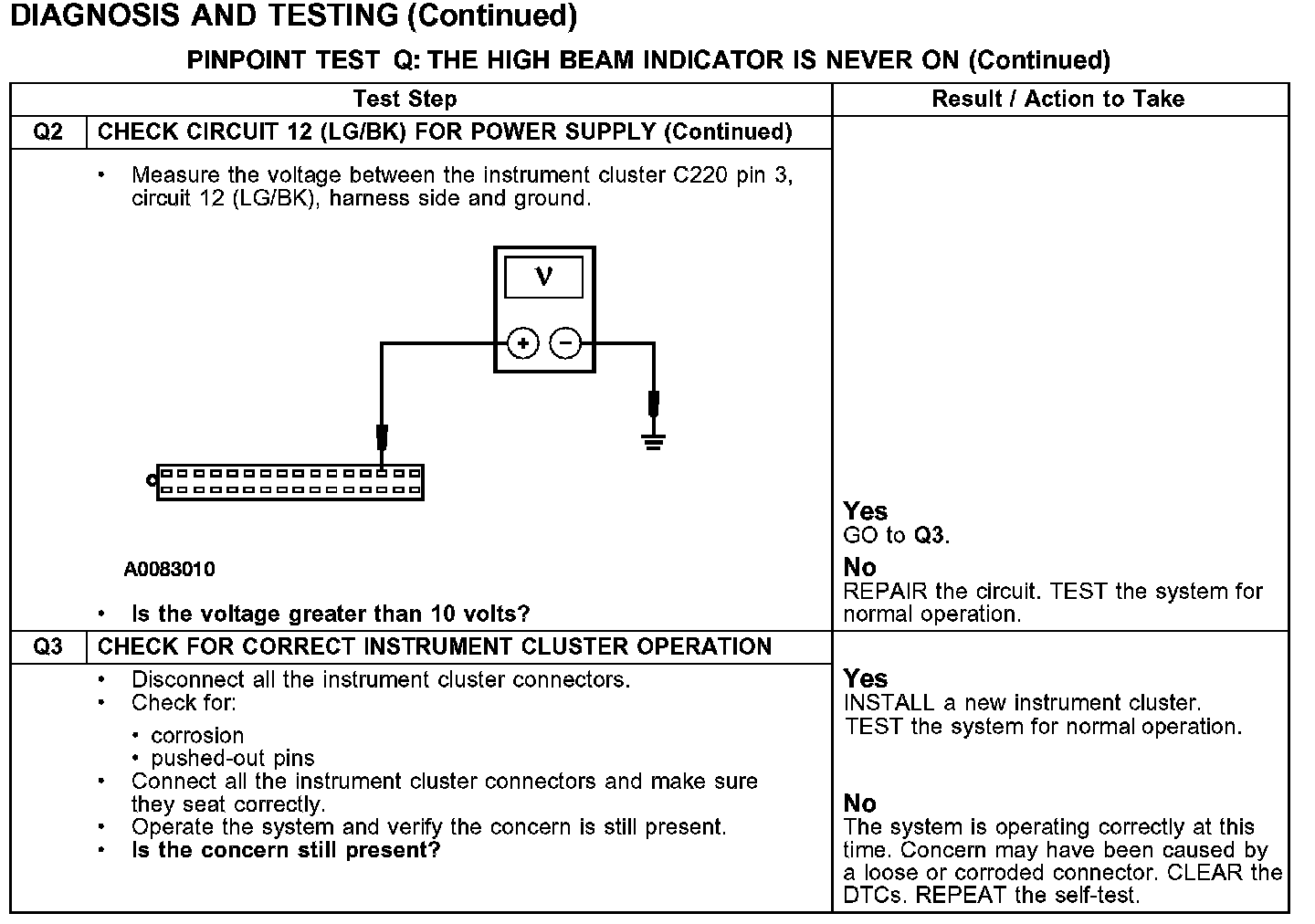

Q2-Q3:
