Test D: The Message Center Switch Does Not Operate Correctly
Test D: The Message Center Switch Does Not Operate Correctly
PINPOINT TEST D: THE MESSAGE CENTER SWITCH DOES NOT OPERATE CORRECTLY

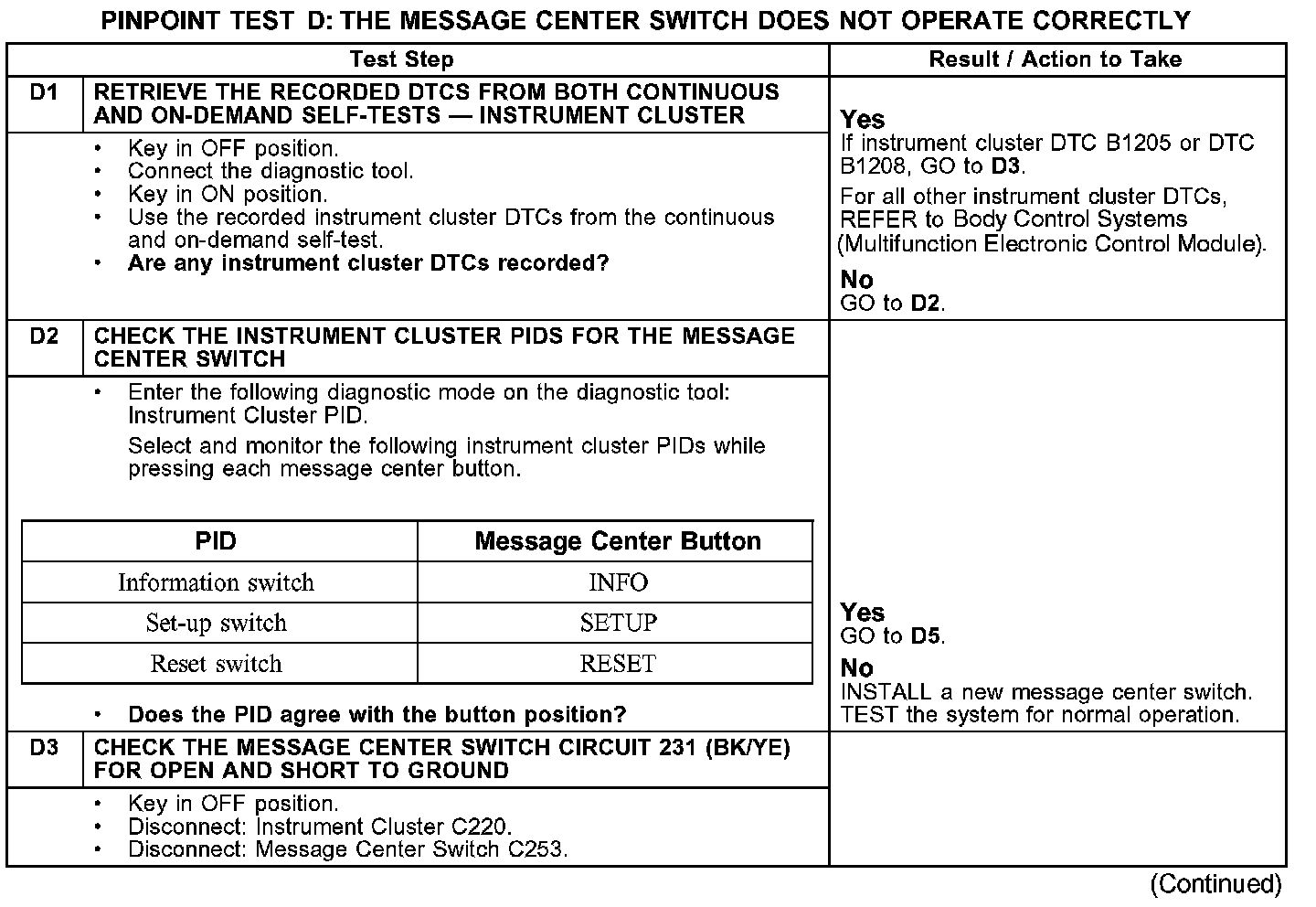

Test D1-D3:

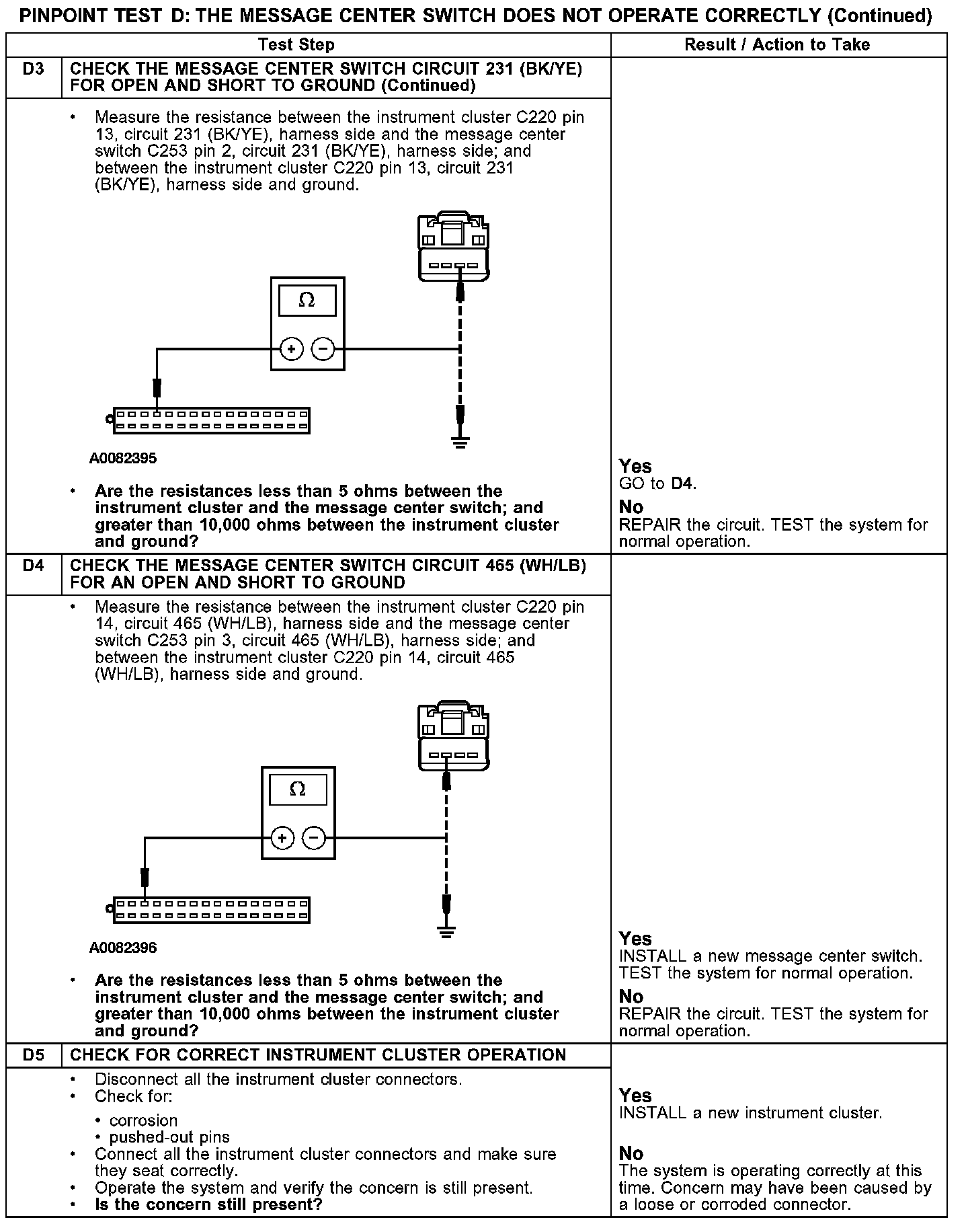

Test D3-D5:
