Cruise Control Servo Cable: Service and Repair

SPEED CONTROL CABLE

REMOVAL
1. Disconnect the battery.

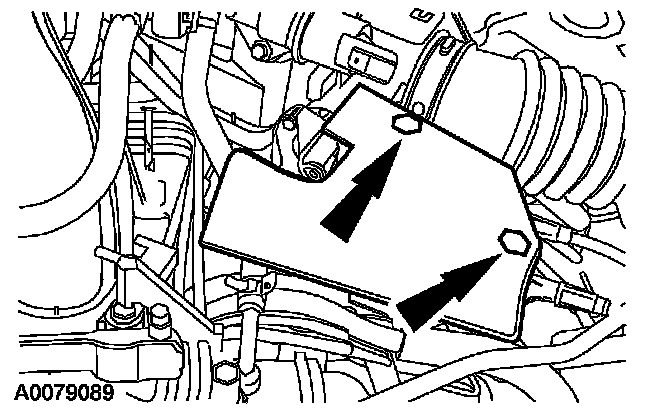

2. Remove the pin-type retainers and the accelerator control splash shield.







3. CAUTION: Make sure the speed control cable is removed in the direction indicated on the cable where it attaches to the throttle cam.

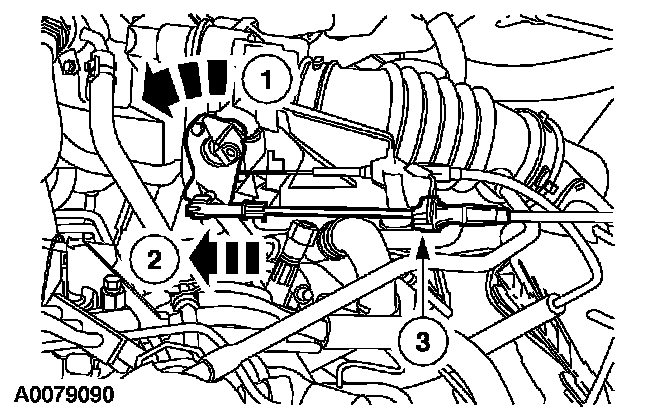

Disconnect the speed control cable from the throttle cam.
1 Rotate the throttle valve.
2 Disconnect the cable.
3 Squeeze the speed control cable tabs and remove the cable from the cable bracket.








4. Release the speed control cable cap.

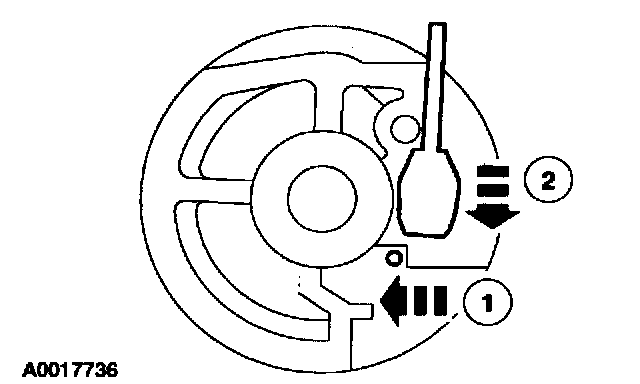

1 Press the speed control cable cap retaining tab.
2 Rotate the speed control cable cap counterclockwise and pull the cable cap away from the actuator housing.







5. Remove the speed control cable.

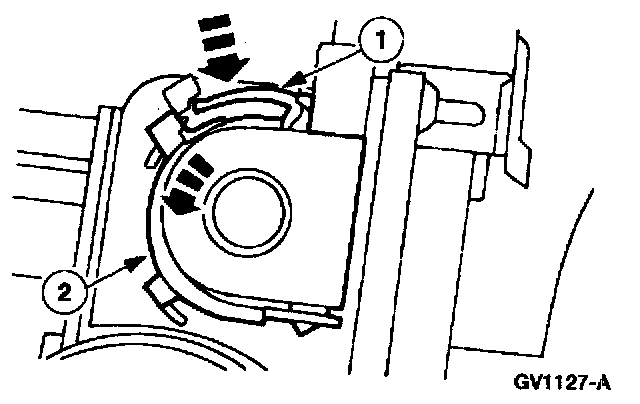

1 Press the spring retainer.
2 Slide the core wire end out of the speed control servo pulley and remove the speed control cable.

INSTALLATION
1. To install, reverse the removal procedure.
