Test D: The Roof Opening Panel Does Not Open or Close
PINPOINT TEST D: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE

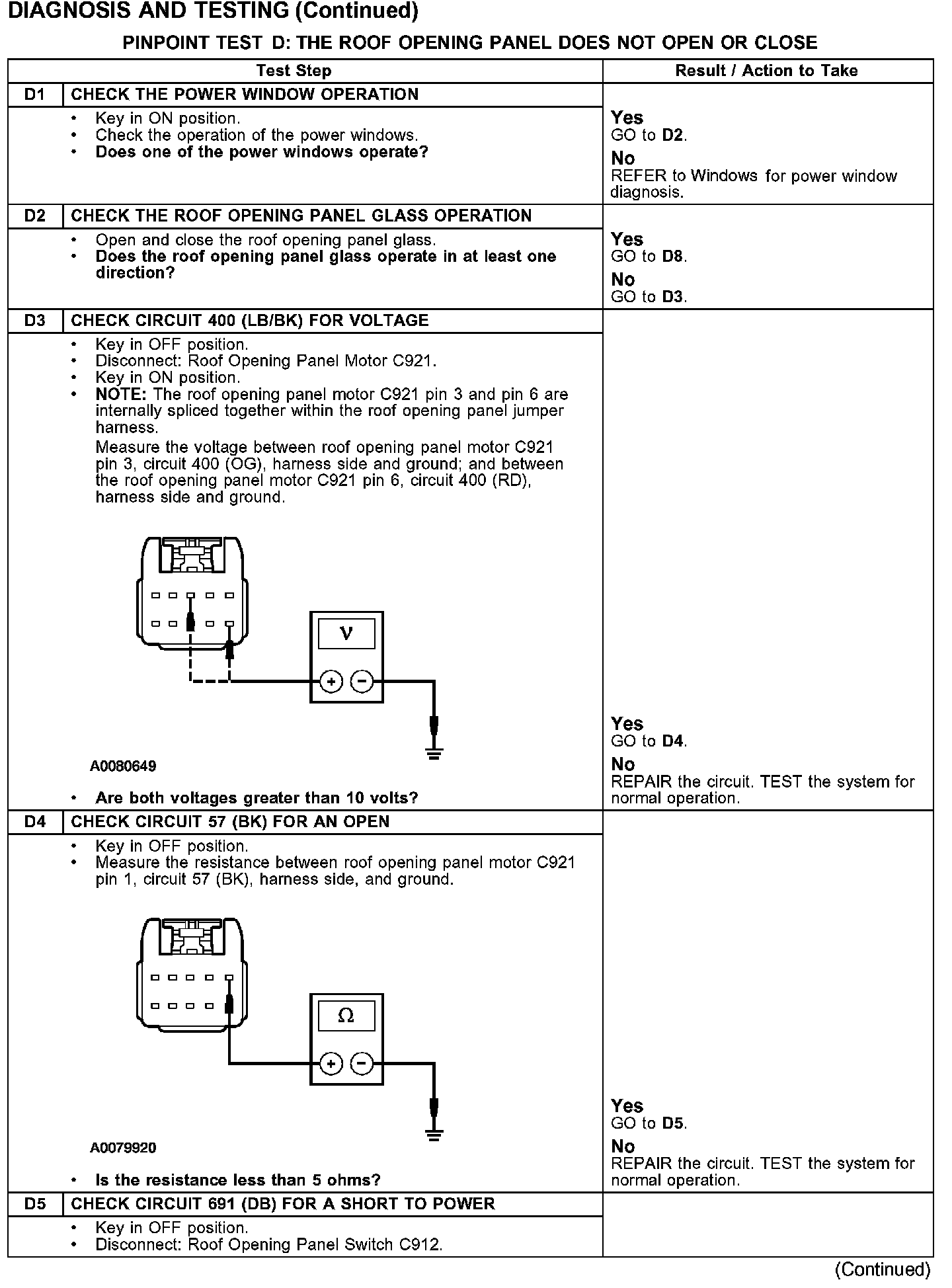

D1-D5:

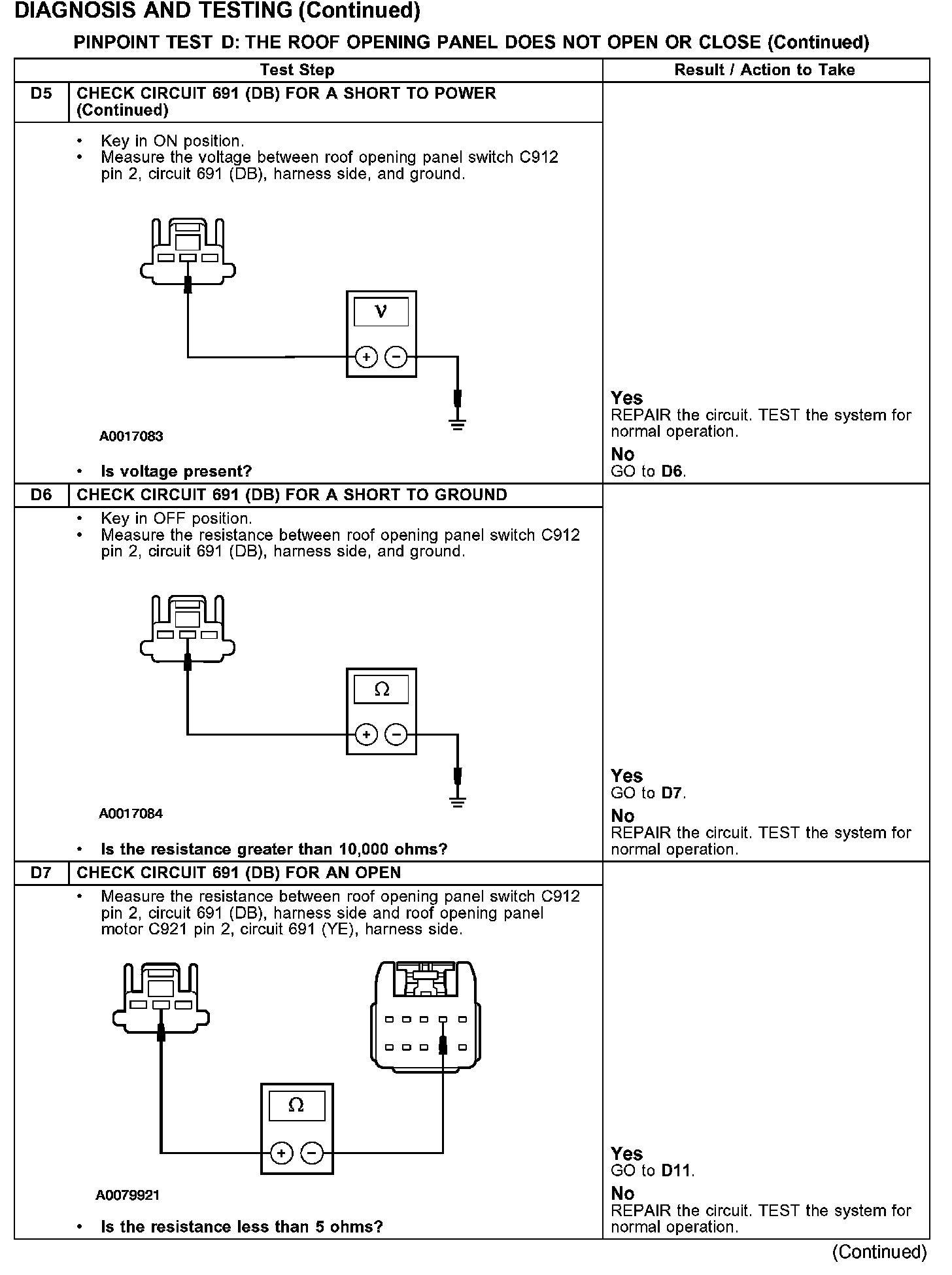

D5-D7:

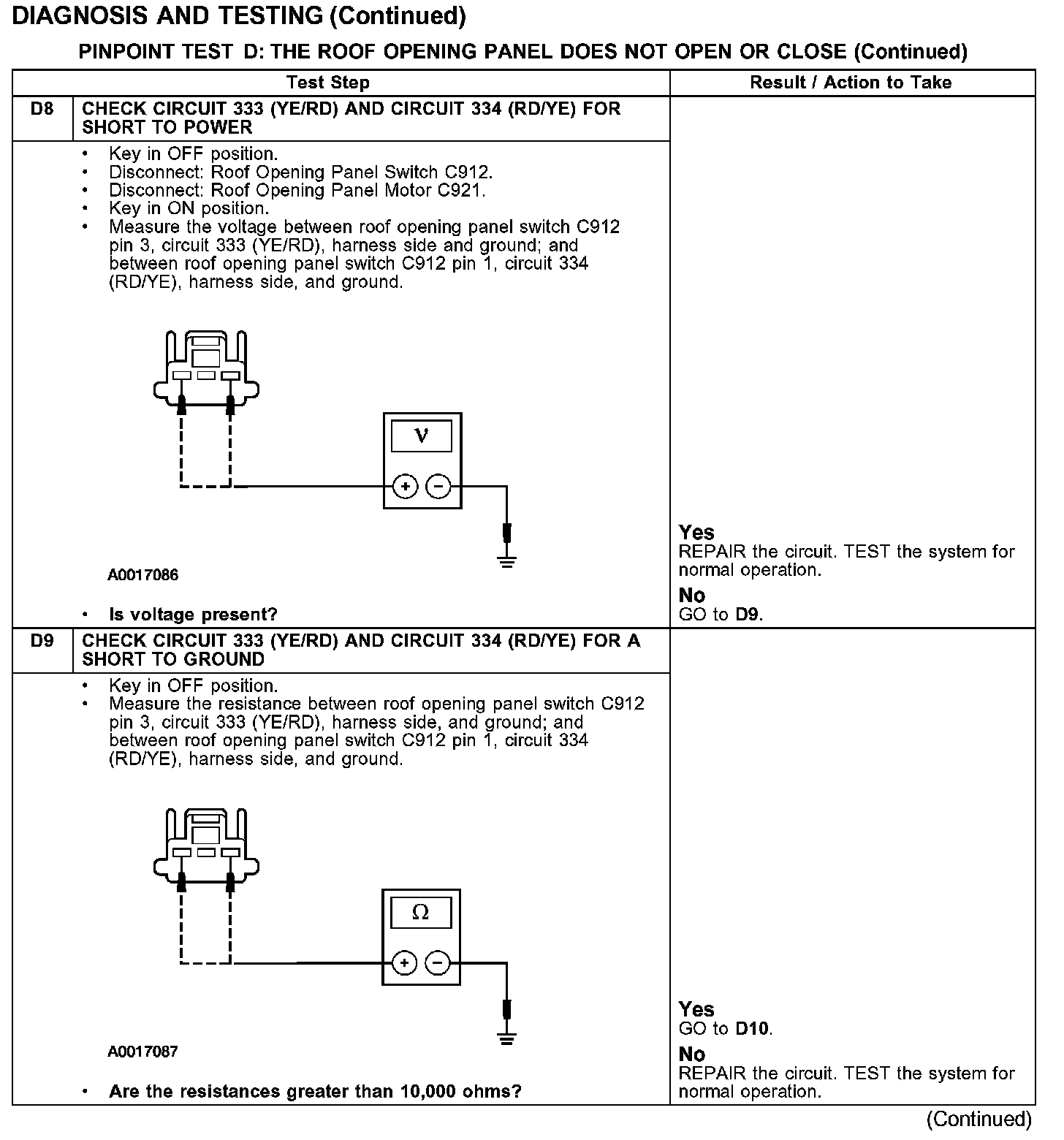

D8-D9:

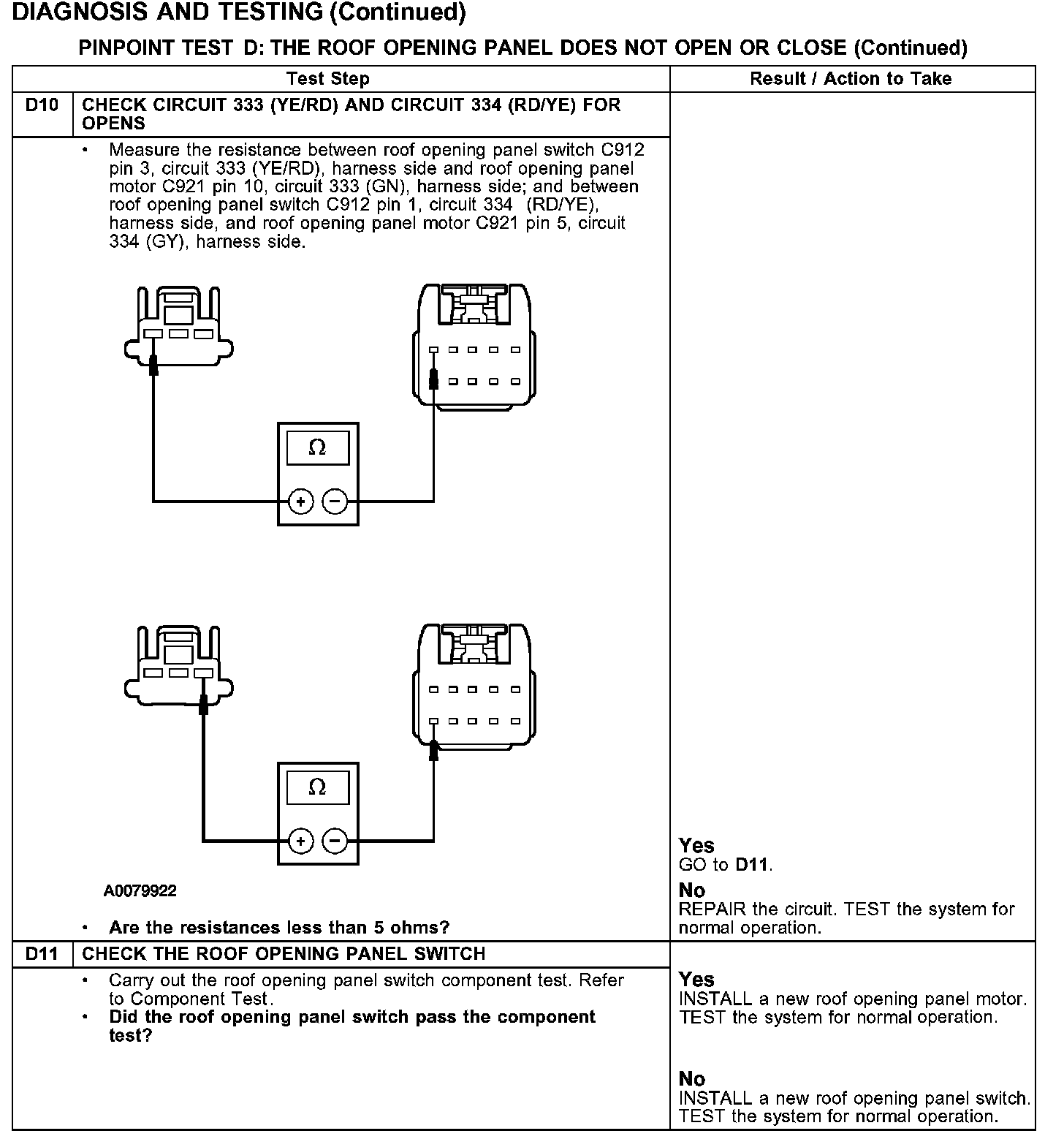

D10-D11:
