Home >> Mercury >> 2005 >> Sable V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> Test C: The Audio Does Not Operate Correctly - Response Time Between Pressing Any of the Icp Buttons, and System Response Time

Test C: The Audio Does Not Operate Correctly - Response Time Between Pressing Any of the Icp Buttons, and System Response Time

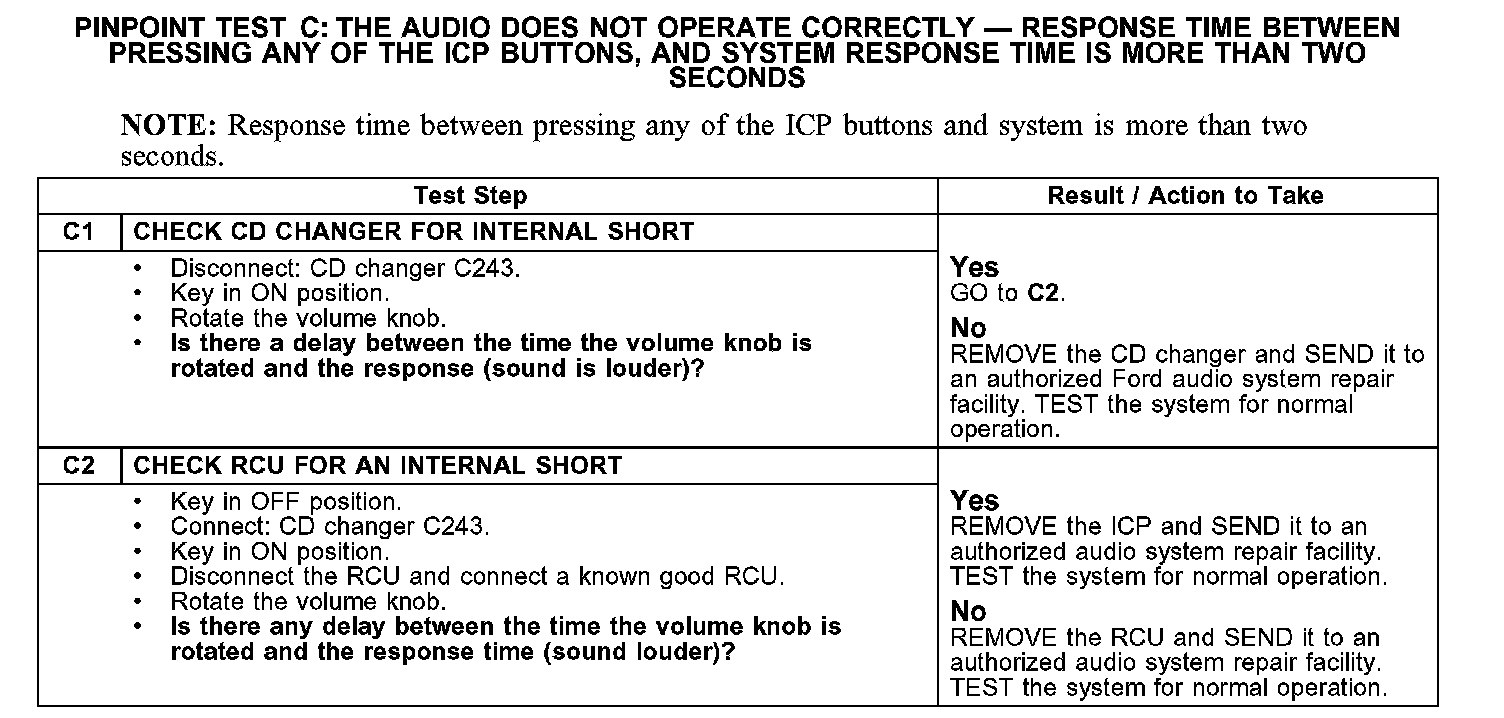

PINPOINT TEST C: THE AUDIO DOES NOT OPERATE CORRECTLY - RESPONSE TIME BETWEEN PRESSING ANY OF THE ICP BUTTONS, AND SYSTEM RESPONSE TIME IS MORE THAN TWO SECONDS


Test C1-C2:
