Test B: The Audio Unit Does Not Operate Correctly - Cassette Player

PINPOINT TEST B: THE AUDIO UNIT DOES NOT OPERATE CORRECTLY - CASSETTE PLAYER


Test B1:

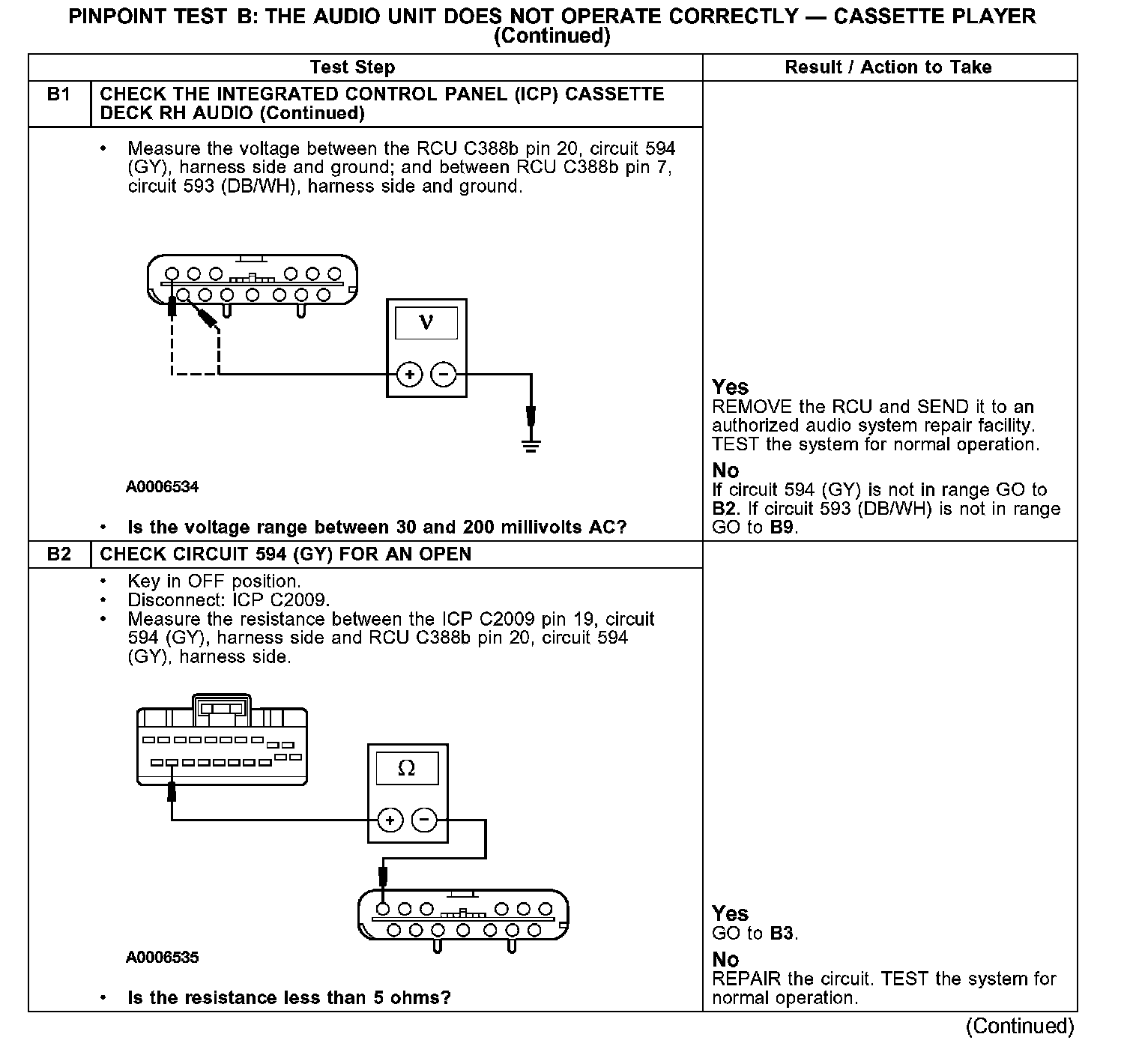

Test B1-B2:

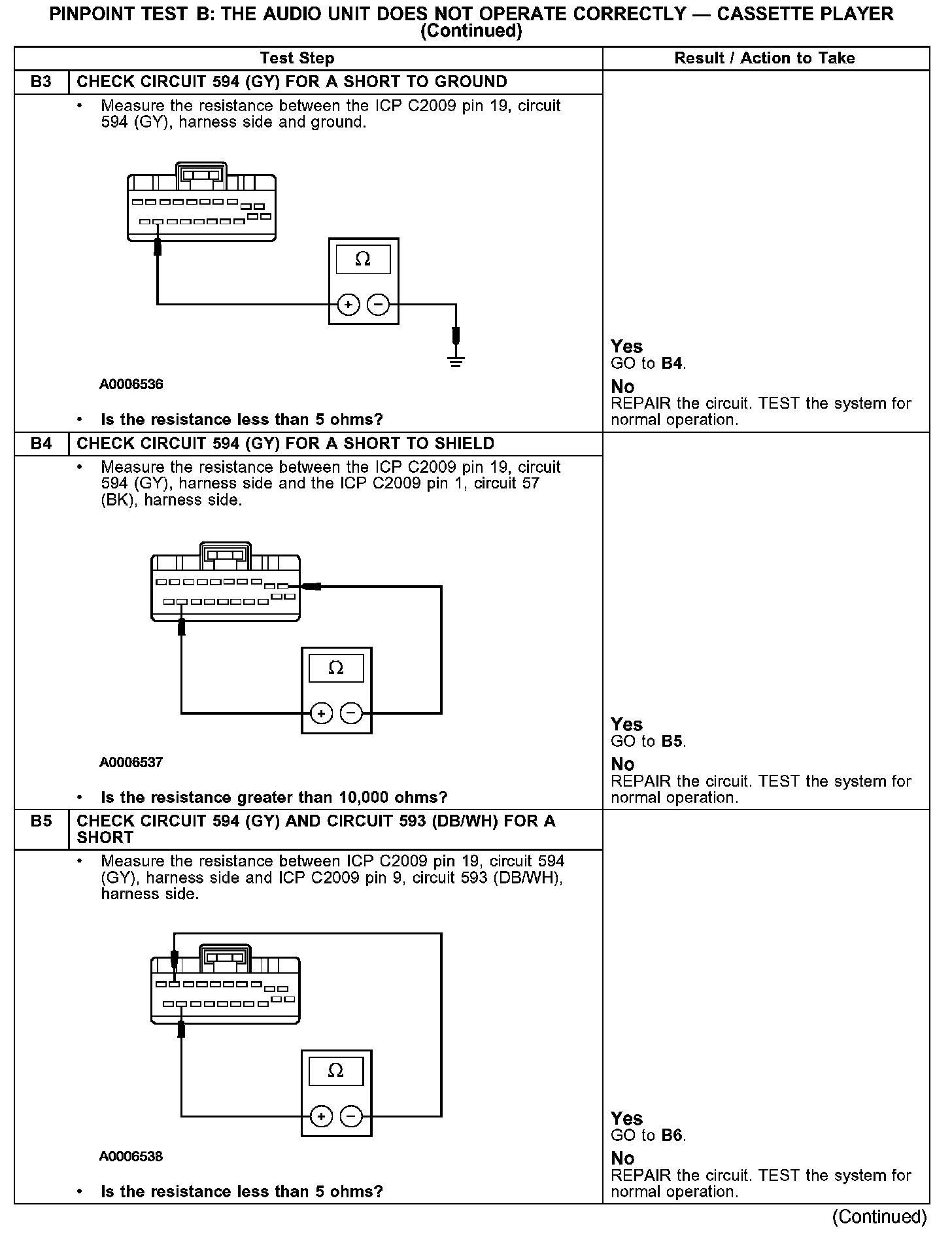

Test B3-B5:

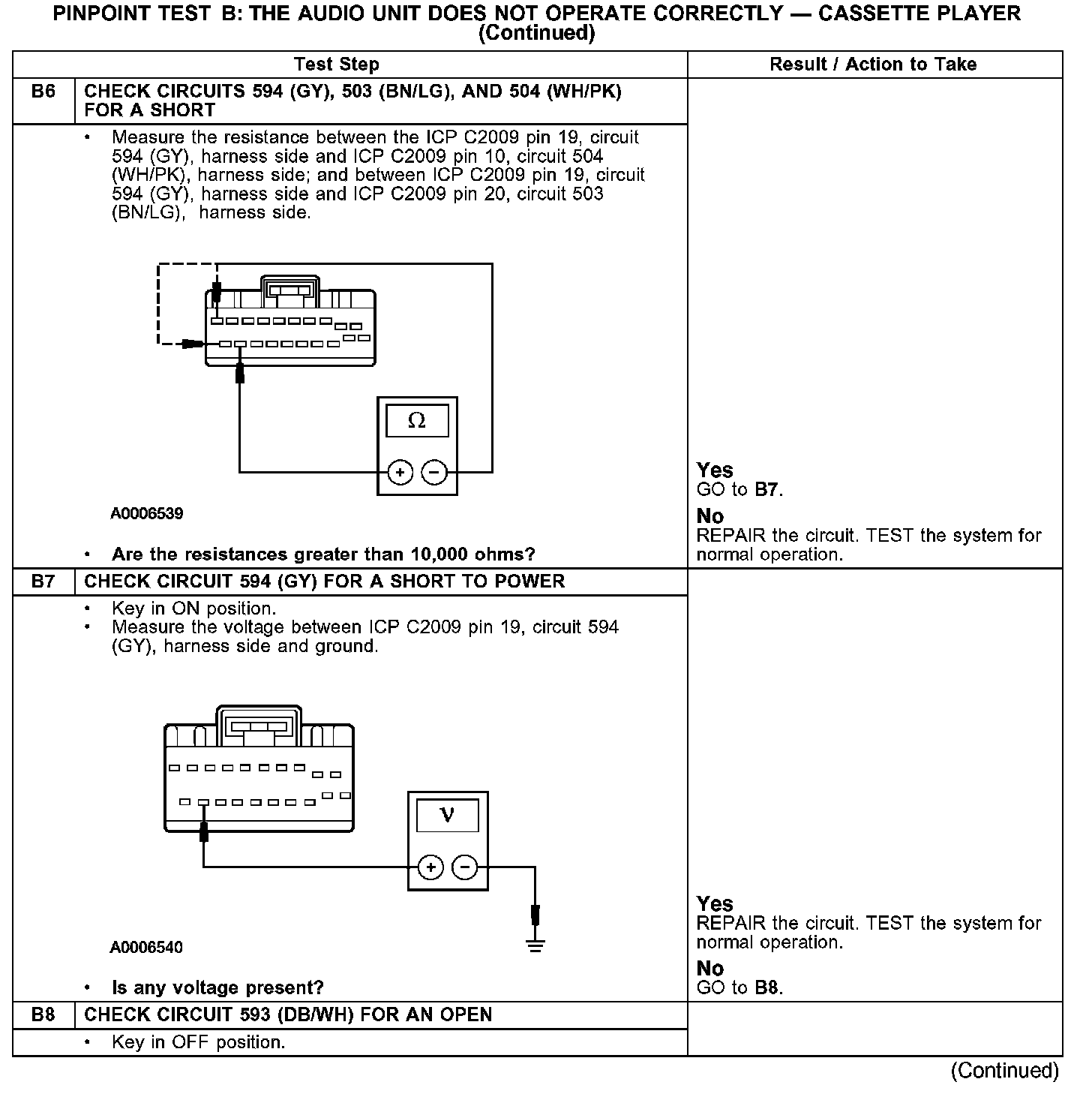

Test B6-B8:

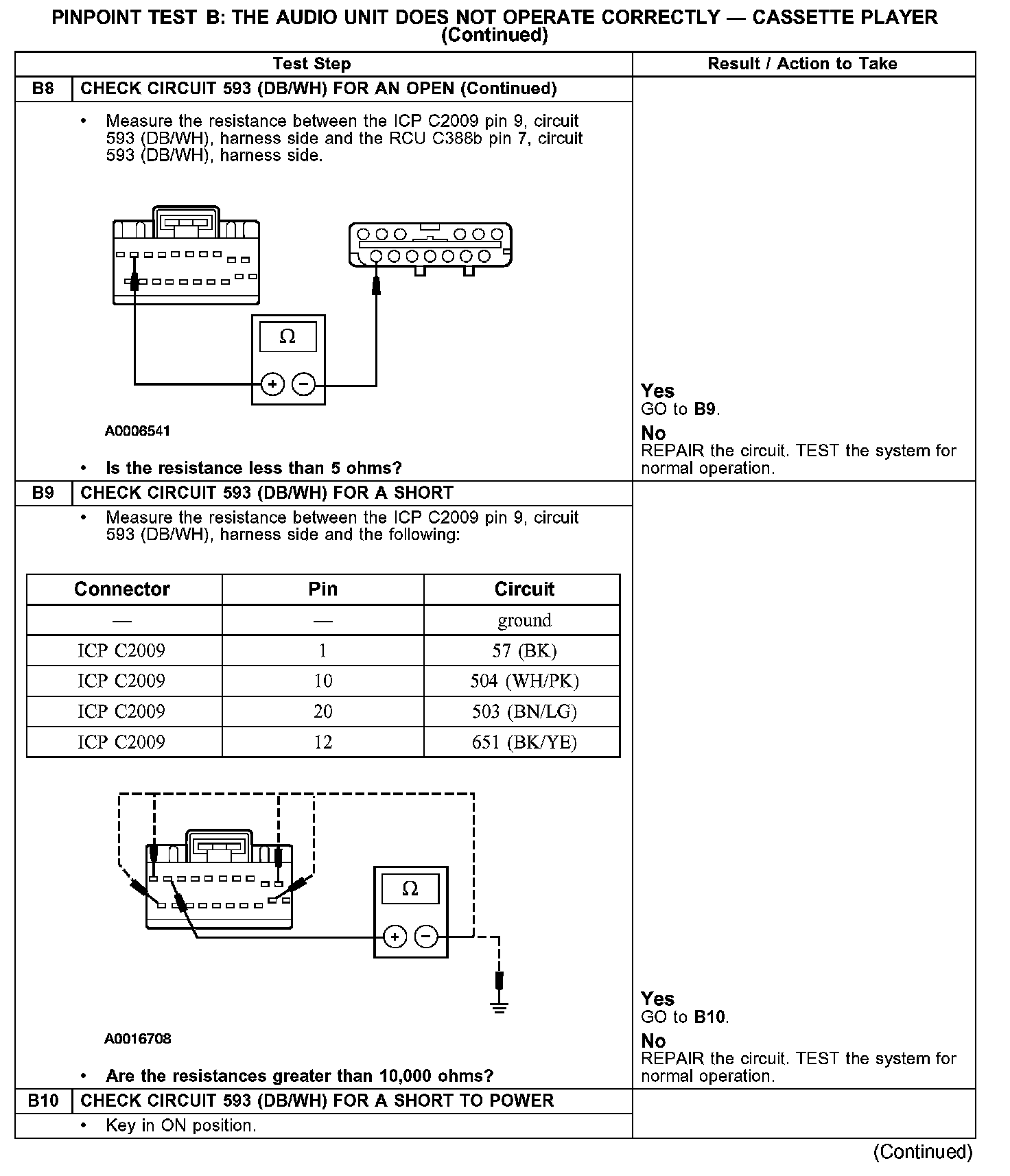

Test B8-B10:

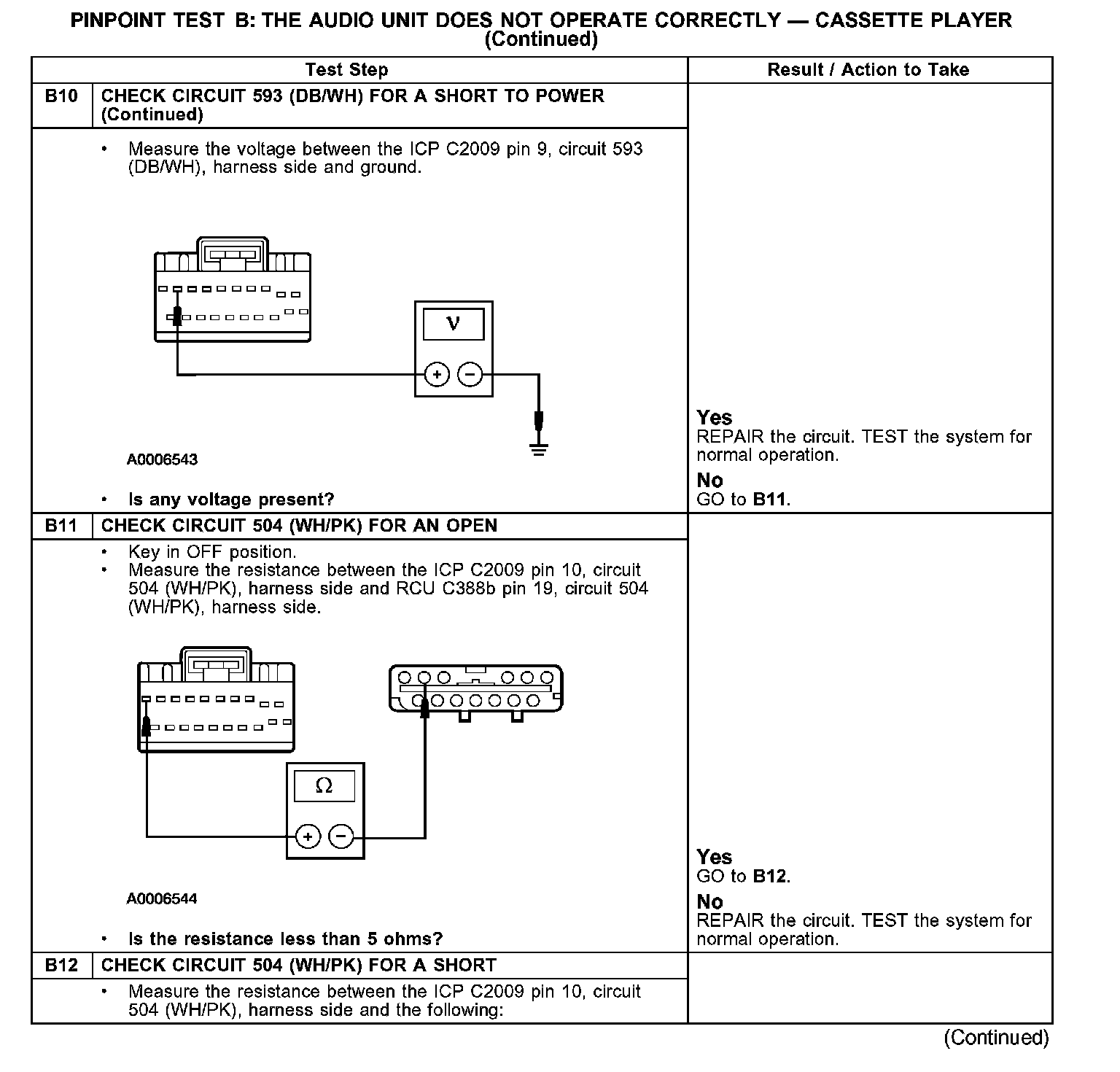

Test B10-B12:

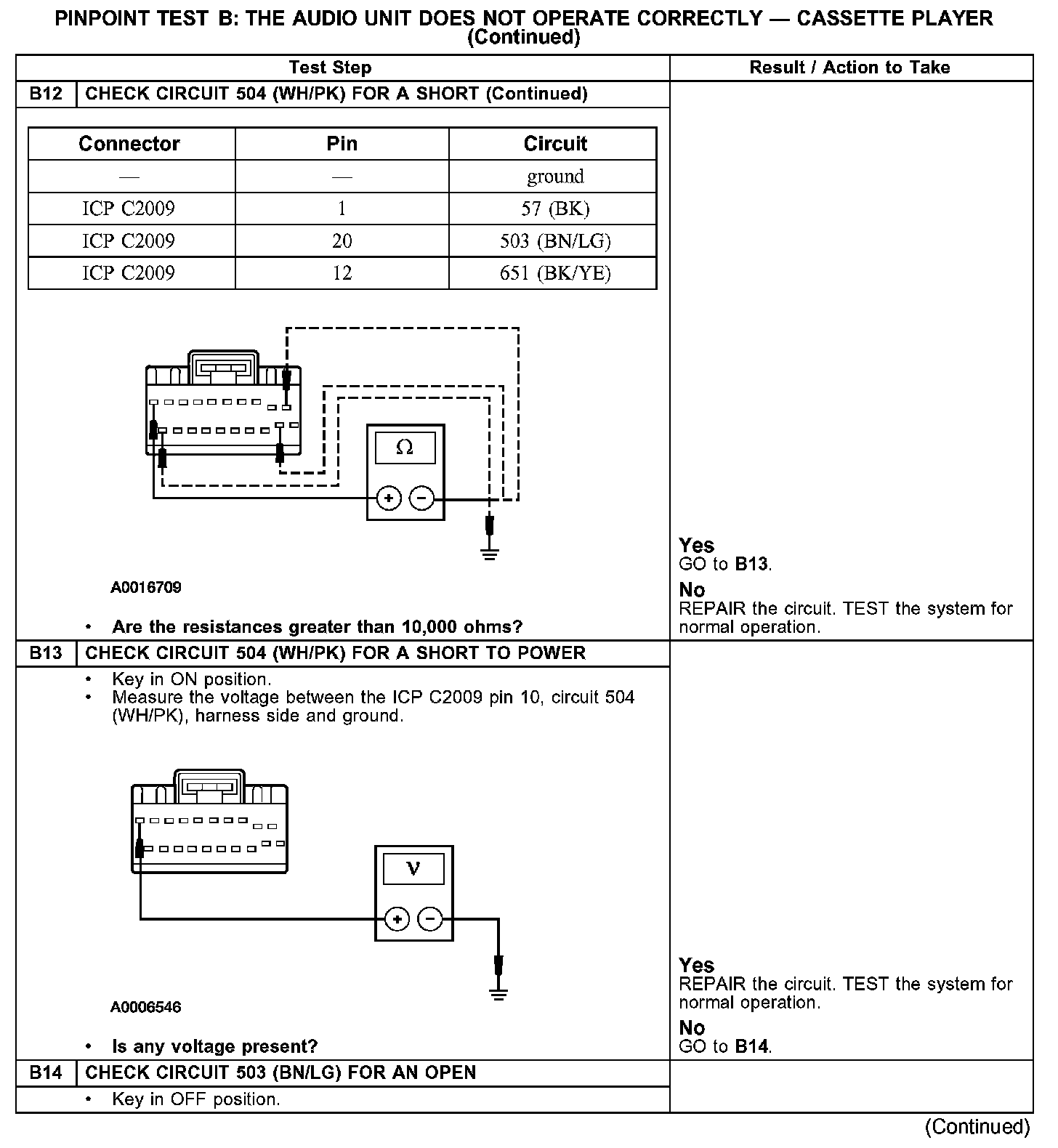

Test B12-B14:

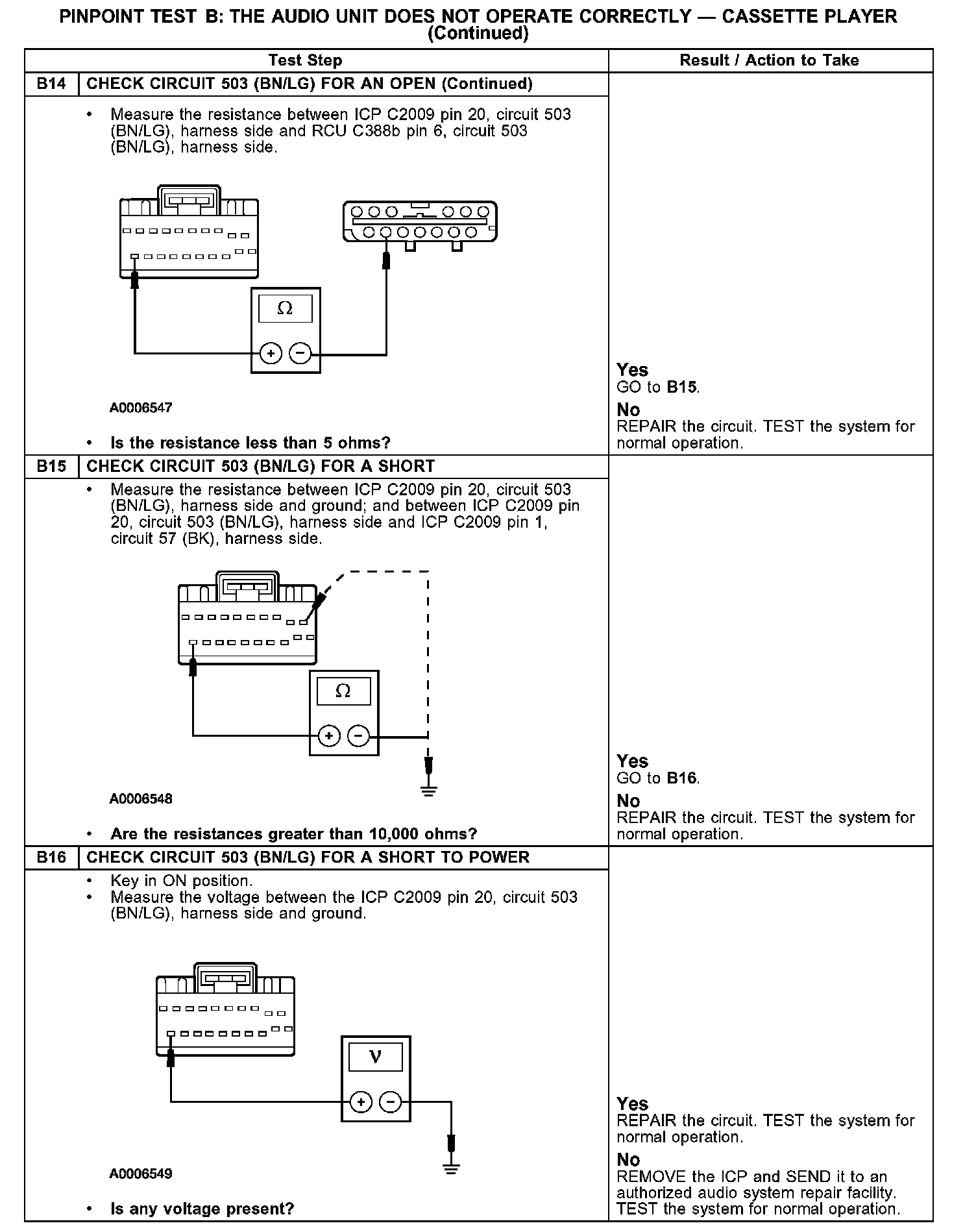

Test B14-B16:
