Anti-Theft - Perimeter
>>
Test B: The Alarm System Does Not Arm/Disarm - Using the Remote Keyless Entry (RKE) Transmitter
Test B: The Alarm System Does Not Arm/Disarm - Using the Remote Keyless Entry (RKE) Transmitter
PINPOINT TEST B: THE ALARM SYSTEM DOES NOT ARM/DISARM - USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

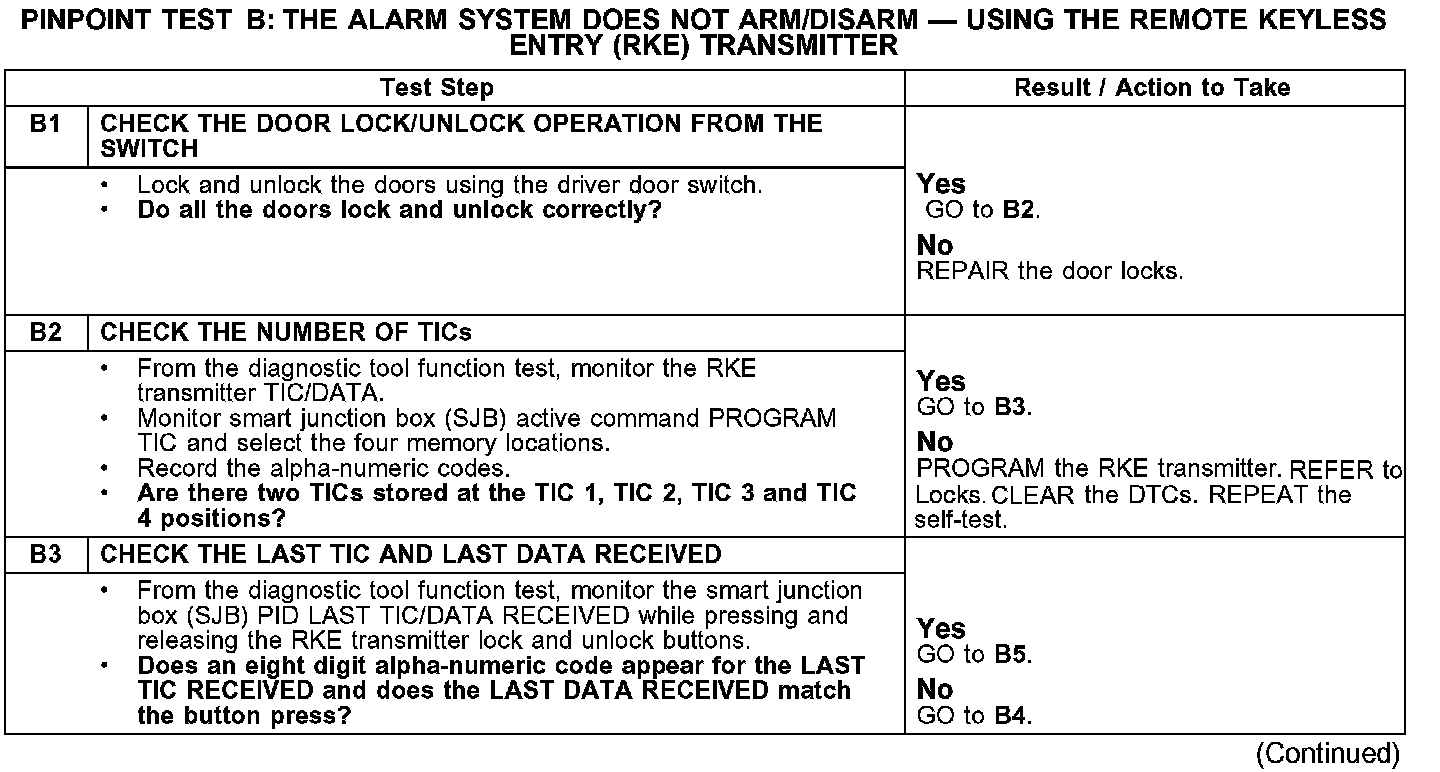

Test B1-B3:

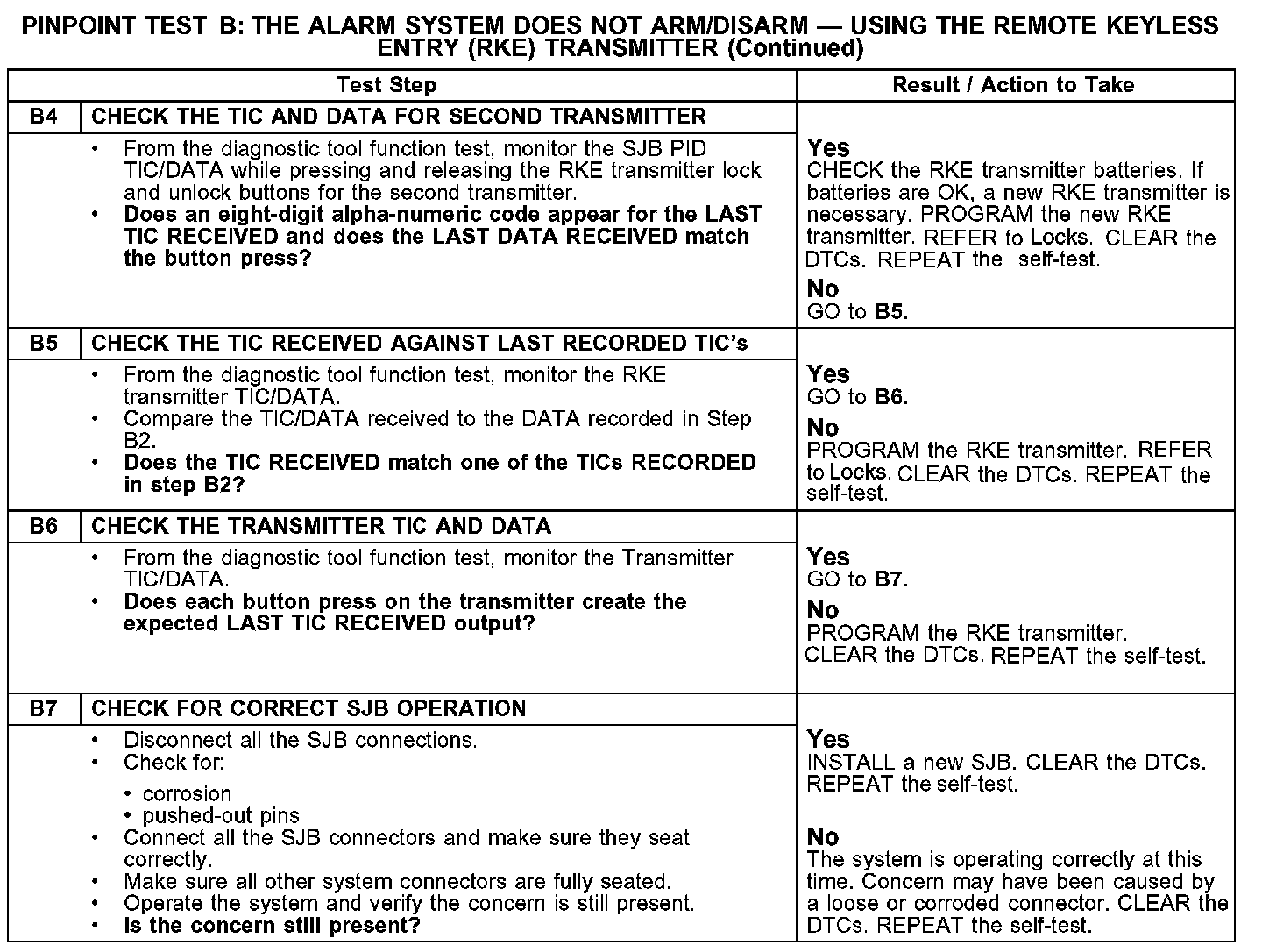

Test B4-B7:
