Driven Sprocket

Driven Sprocket

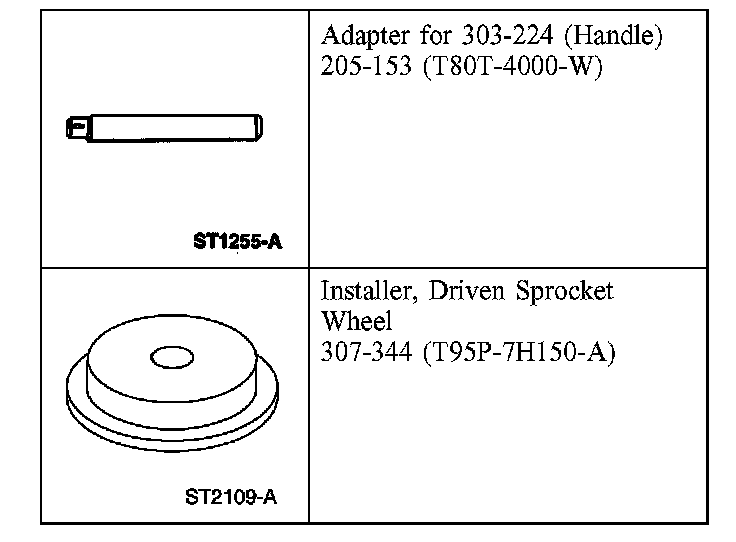

Special Tool(s)

Check

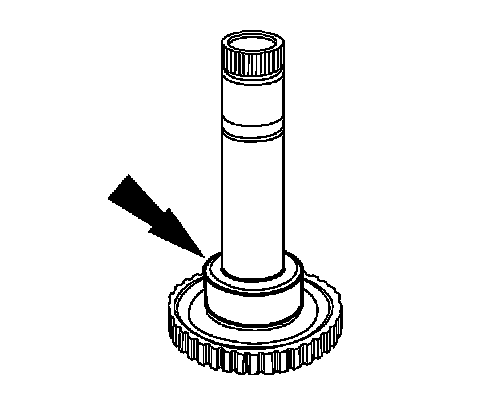

1. Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, a new driven sprocket will need to be installed.

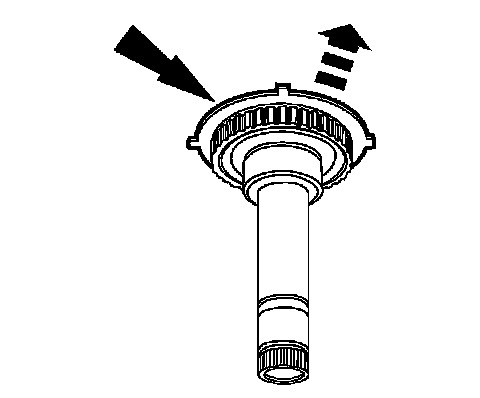

Inspect the sensor wheel for bent or damaged tabs.

2. NOTE: A new speed sensor wheel will need to be installed if the old one is damaged.





Remove the speed sensor wheel.

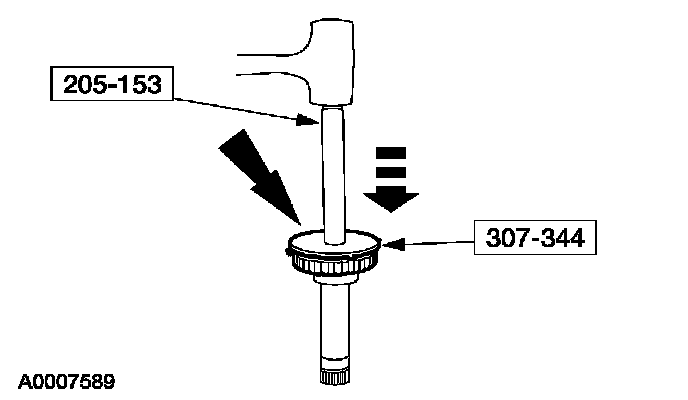

3. Using the special tools, install a new speed sensor ring.
