Wheel Speed Sensor, Rear

Rear Wheel Speed Sensor

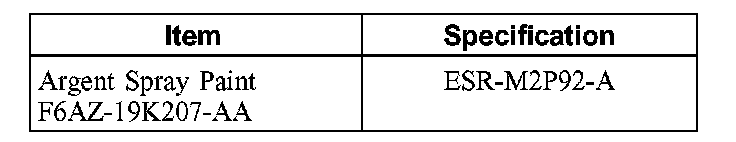

Material

Removal and Installation

1. Raise and support the vehicle. Refer to Maintenance/Service and Repair.

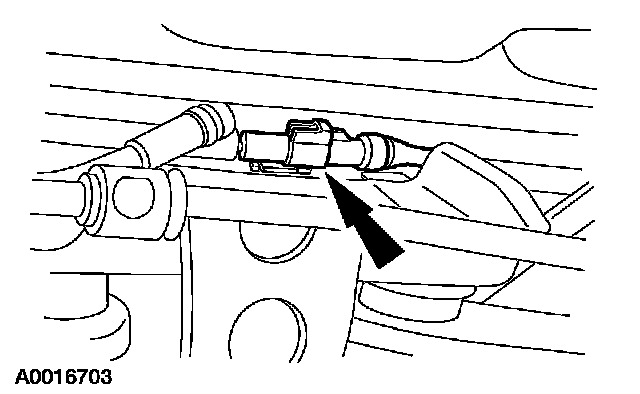

2. Disconnect the wiring.

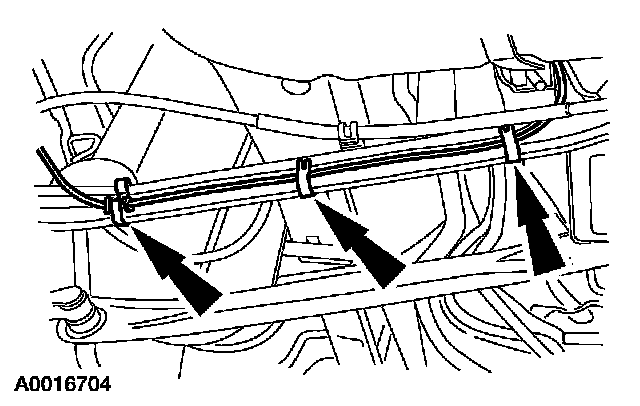

3. Disengage the wiring from the wiring clips.

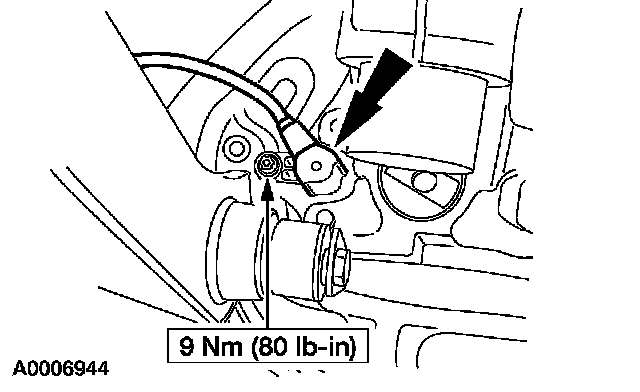

4. Remove the bolt and the rear wheel speed sensor.
5. To install, reverse the removal procedure.
