Symptom Related Diagnostic Procedures

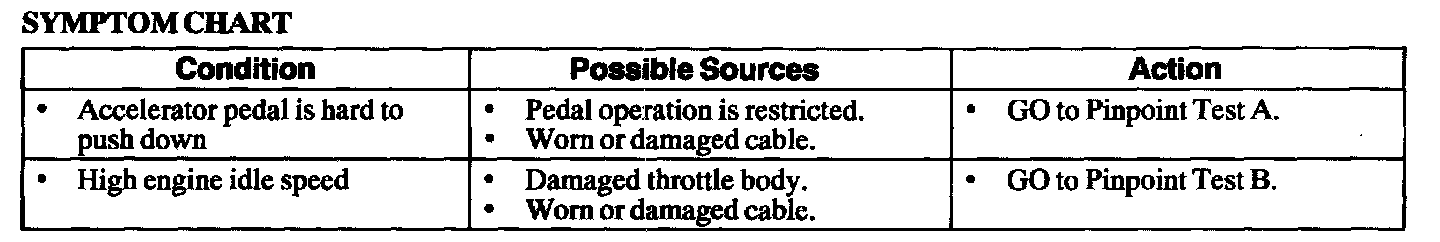

SYMPTOM CHART







NOTE: Before using the Symptom Chart, disconnect accelerator cable from the throttle body lever, and disconnect the speed control actuator cable from the throttle body, if equipped.
