EGR Tube: Service and Repair

EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE

REMOVAL

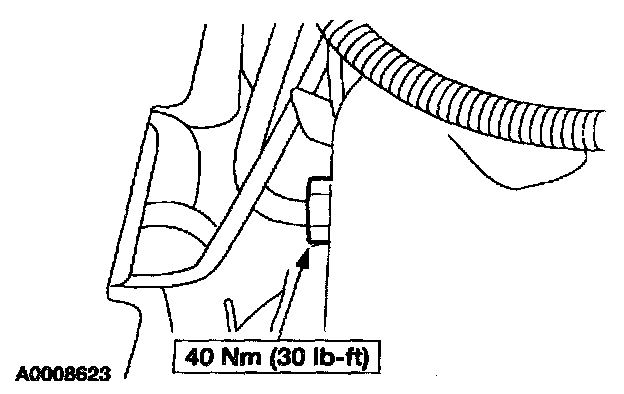

1. Disconnect the exhaust gas recirculation (EGR) tube nut at the manifold connector.







2. Remove the differential pressure feedback EGR system vacuum hoses from the EGR tube.

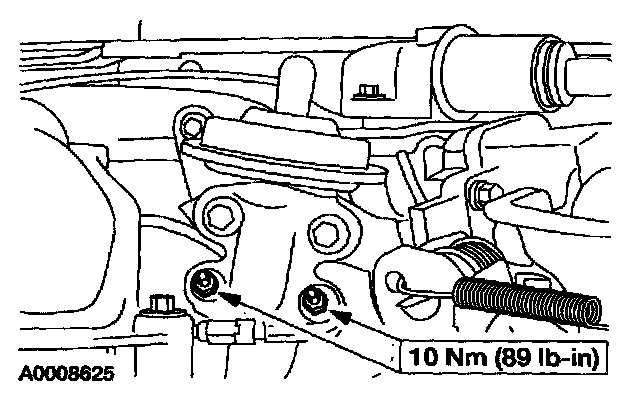

3. Remove the nuts and the EGR tube.
- Discard the gasket.

INSTALLATION

1. NOTE: The EGR valve sealing surfaces are soft metal.

To install, reverse the removal procedure.
- Clean both sealing surfaces with metal surface cleaner. Install a new EGR valve gasket.
