Test A: DTC P0442 Small Leak In EVAP System or P0456 Very Small Leak In EVAP System

PINPOINT TEST A: DTC P0442 SMALL LEAK IN EVAP SYSTEM OR P0456 VERY SMALL LEAK IN EVAP SYSTEM

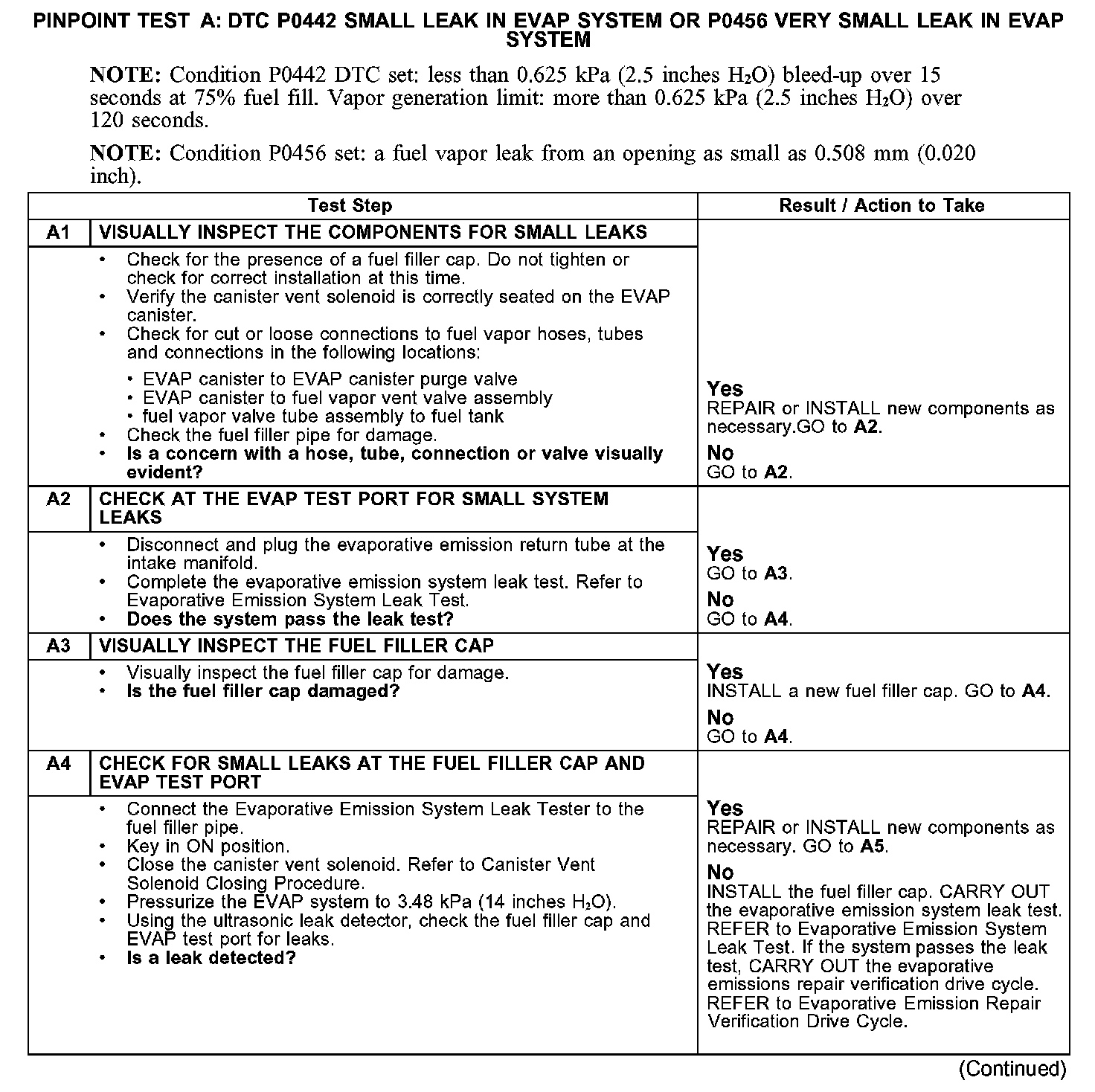

Test A1-A4:

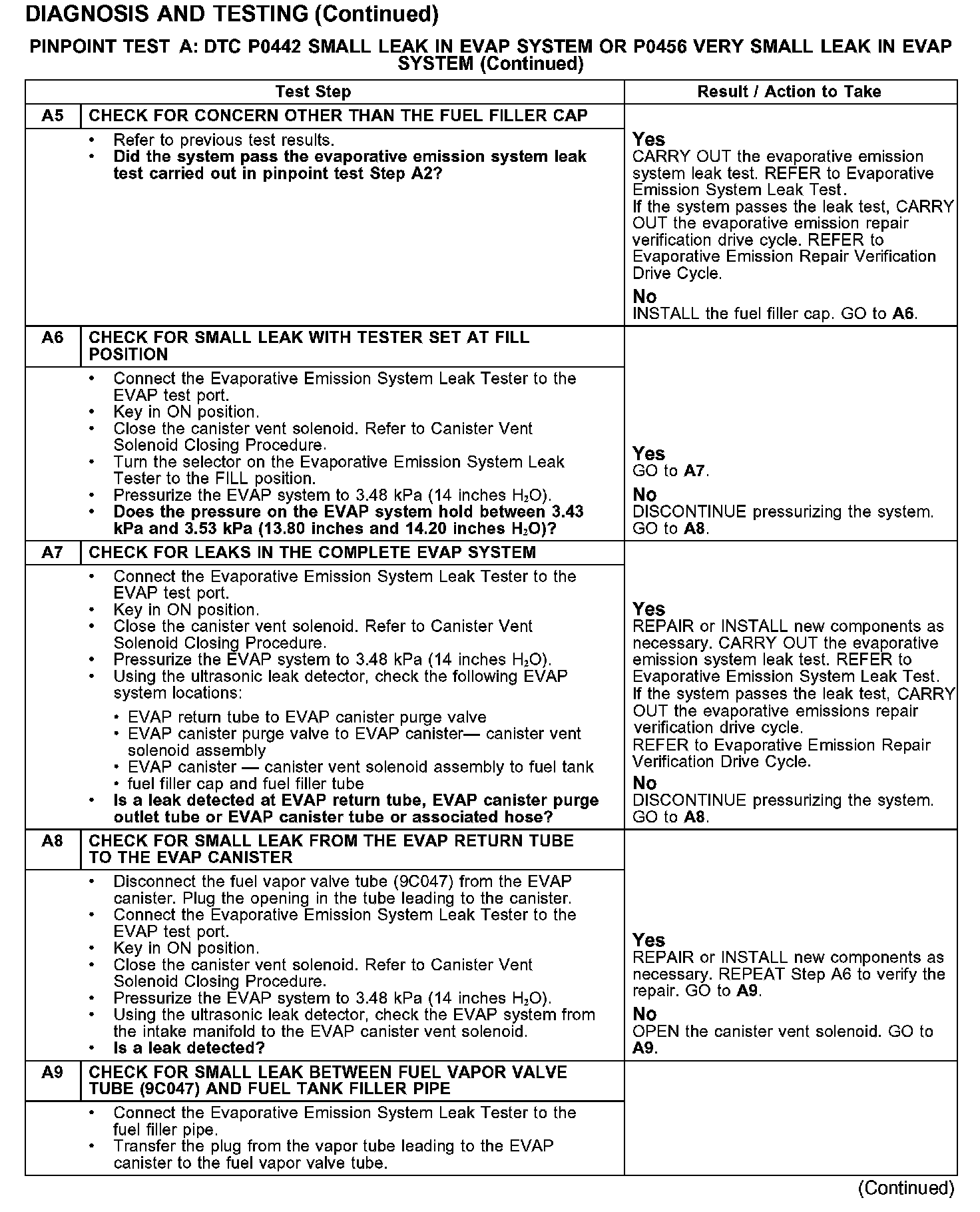

Test A5-A9:

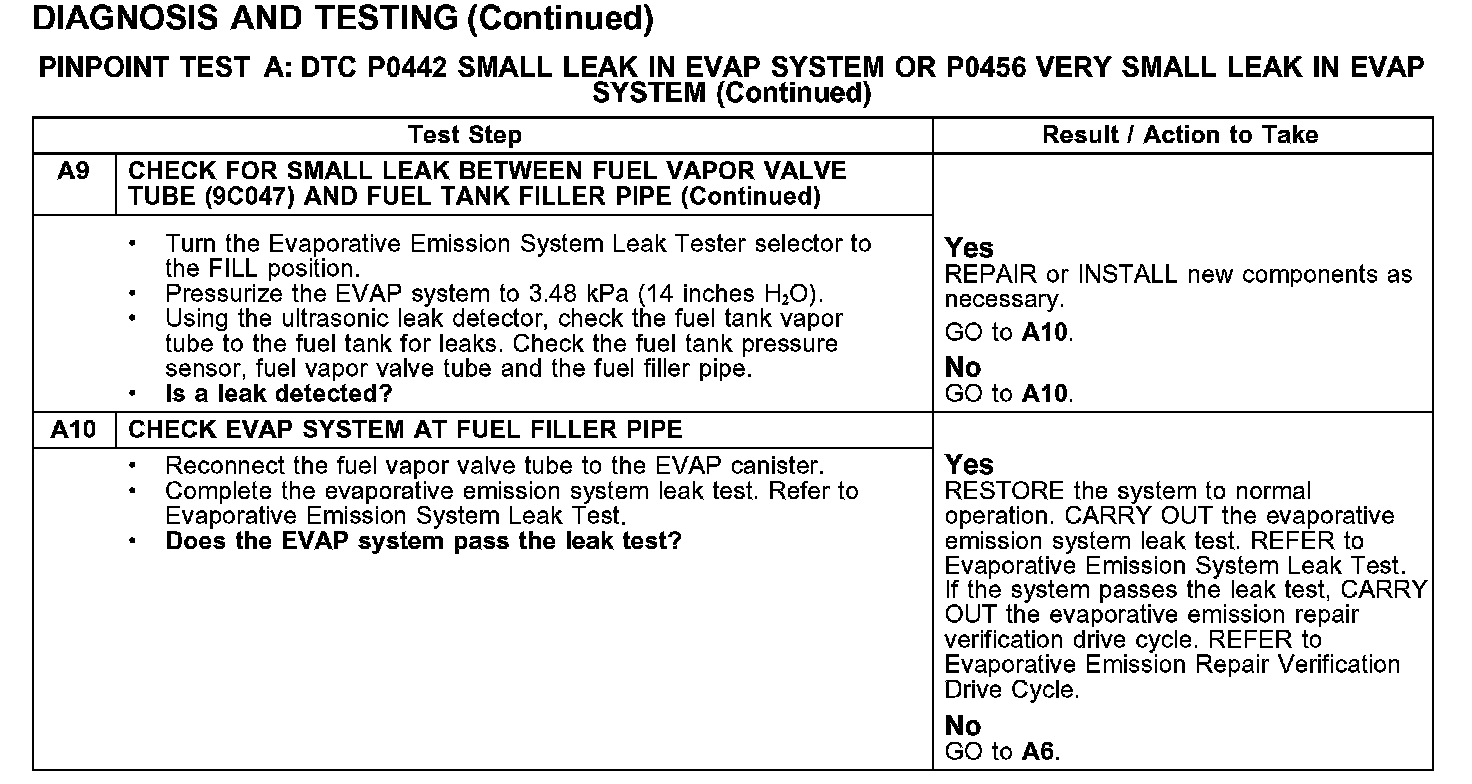

Test A9-A10:
