Without Tensioner

Water Pump Belt - 3.0L (4V) without Tensioner

Removal





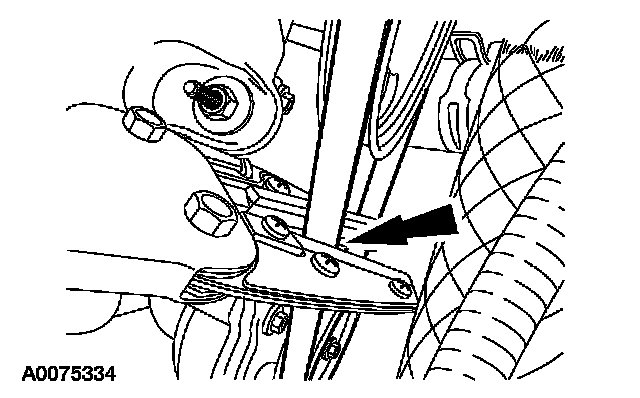

1. Remove the coolant pump belt cover.

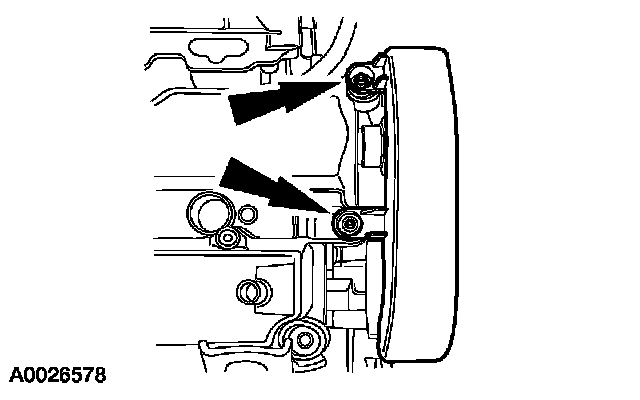

^ Remove the retaining nuts.
^ Remove the coolant pump belt cover.

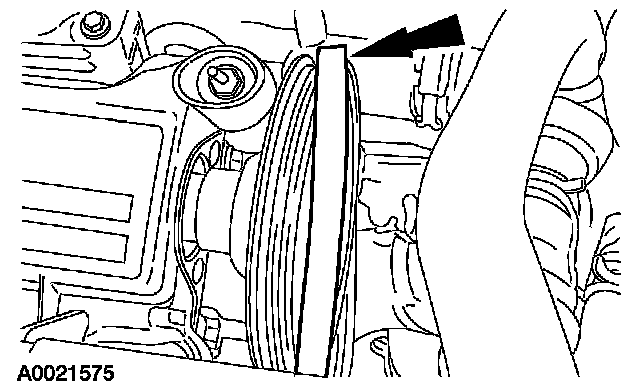

2. CAUTION: Be careful not to nick the coolant pump pulley.





Cut and remove the coolant pump belt.
^ Discard the old belt.

Installation





1. Install the belt on the coolant pump pulley and position it on the camshaft pulley.





2. Remove the RH inner fender splash shield.

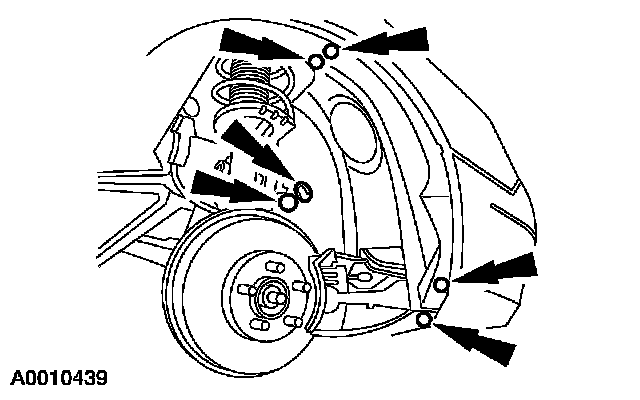

^ Remove the screws and pin-type retainers.

3. CAUTION: Do not use any screwdrivers, pliers, or other metal objects that could cause damage to the belt or camshaft pulley while installing the belt.

Rotate the crankshaft clockwise to seat the belt on the camshaft pulley.





4. Install the RH fender splash shield.

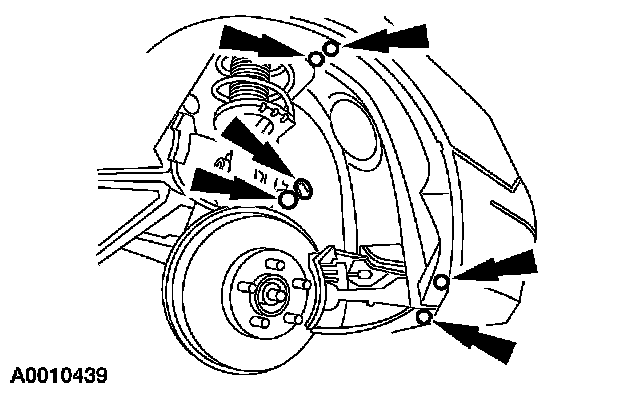

^ Install the screws and push-pin retainers.





5. Install the coolant pump belt cover.

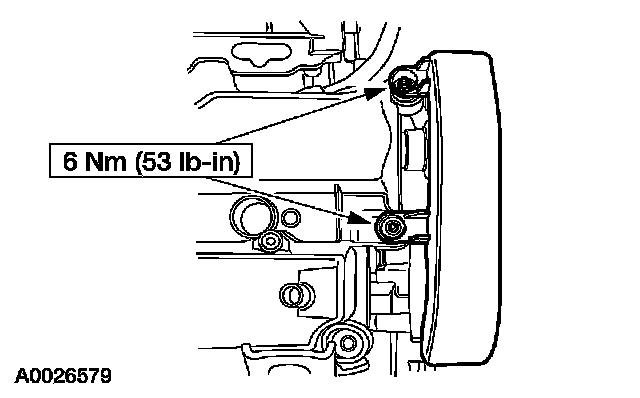

^ Install the retaining nuts.
